Example 6: Temperature Sensor
To set an arbitrary sensor is the same way to the temperature sensor. So, to set a
temperature sensor, you will need to set the sensor name, sensor type, sensor
physical unit, sensor reference data, and arithmetic.
Do these steps as follow:
1. Press button, select the arbitrary sensor function.

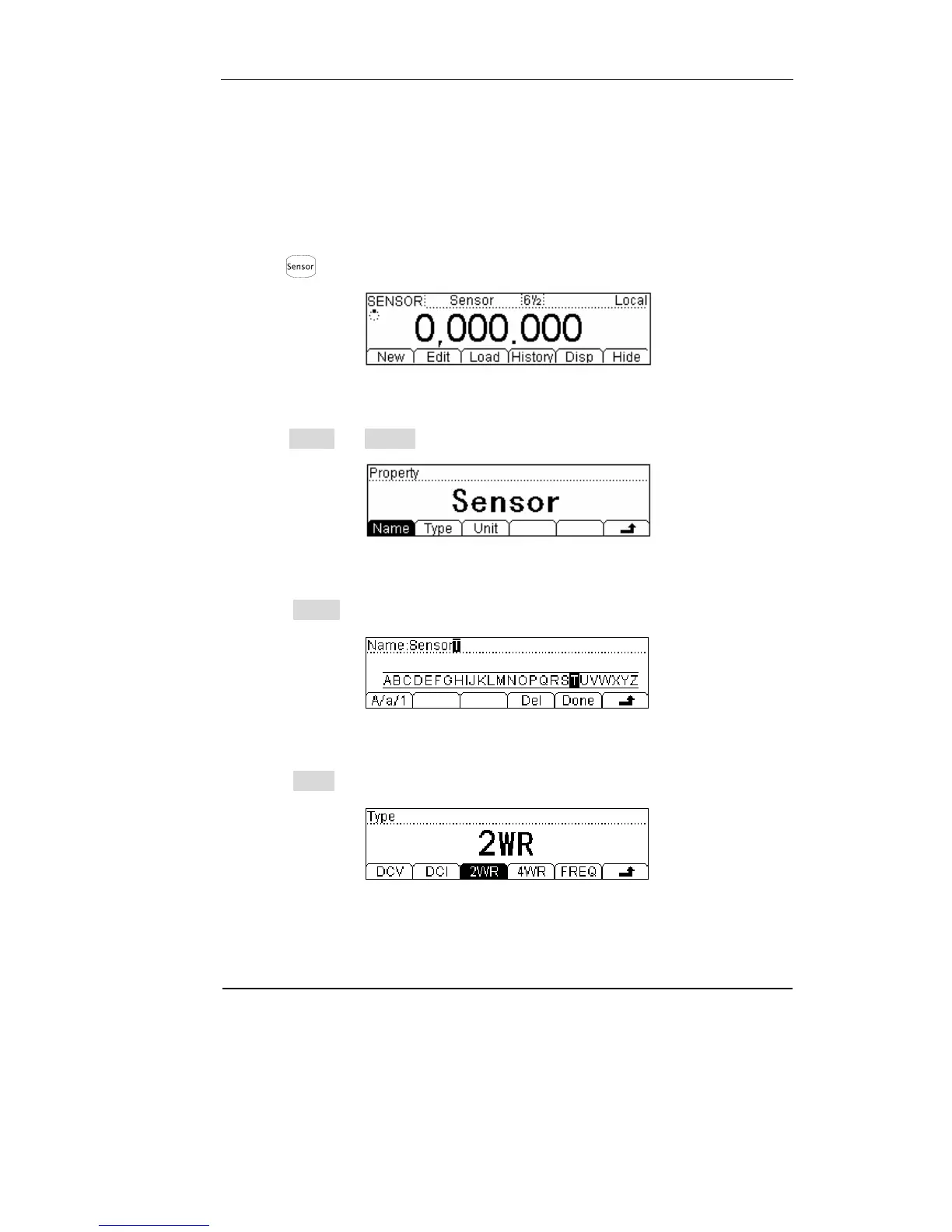

Figure 3－11
2. Press New Æ Prpty ，select the proper function interface.
Figure 3－12
(1). Press Name ，input the name of this sensor: SensorT。
Figure 3－13
(2). Press Type ，select the type of the sensor: Resistance.
Figure 3－14
