To Choose Data Digit Display
Function is used to set up data displa
y digit. It has 5, 6, 7 three kinds of data
digit display choice. The
default display digit is 5.

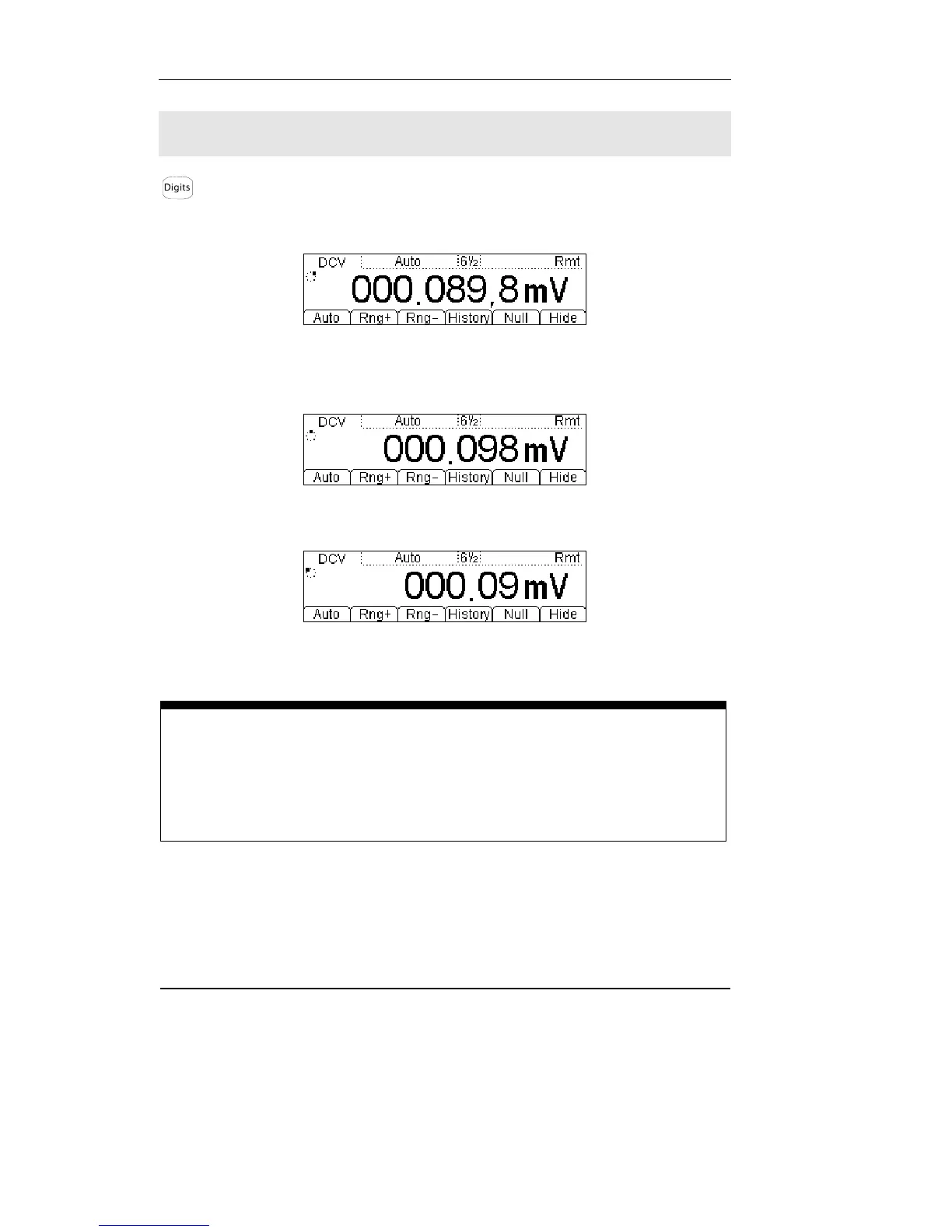

Figure 1-52
The data digits is 7
Figure 1-53
The data digits is 6
Figure 1-54
The data digits is 5
NOTE
In high-accur
acy measurement, if users need
to show less data digit, it can show
fewer digits f
or user-friendly reading.
