RIGOL
© Copyright RIGOL Technologies, Inc. 2007. 1-7
User Manual for DM3000 Series
To Measure DC Voltage
In view of DC voltage measurement function, the following part demonstrated how
to link the measurement connection and how to choose measurement functions. The
following practice will gradually guide you to be familiar with the DC Voltage
measurement technique.

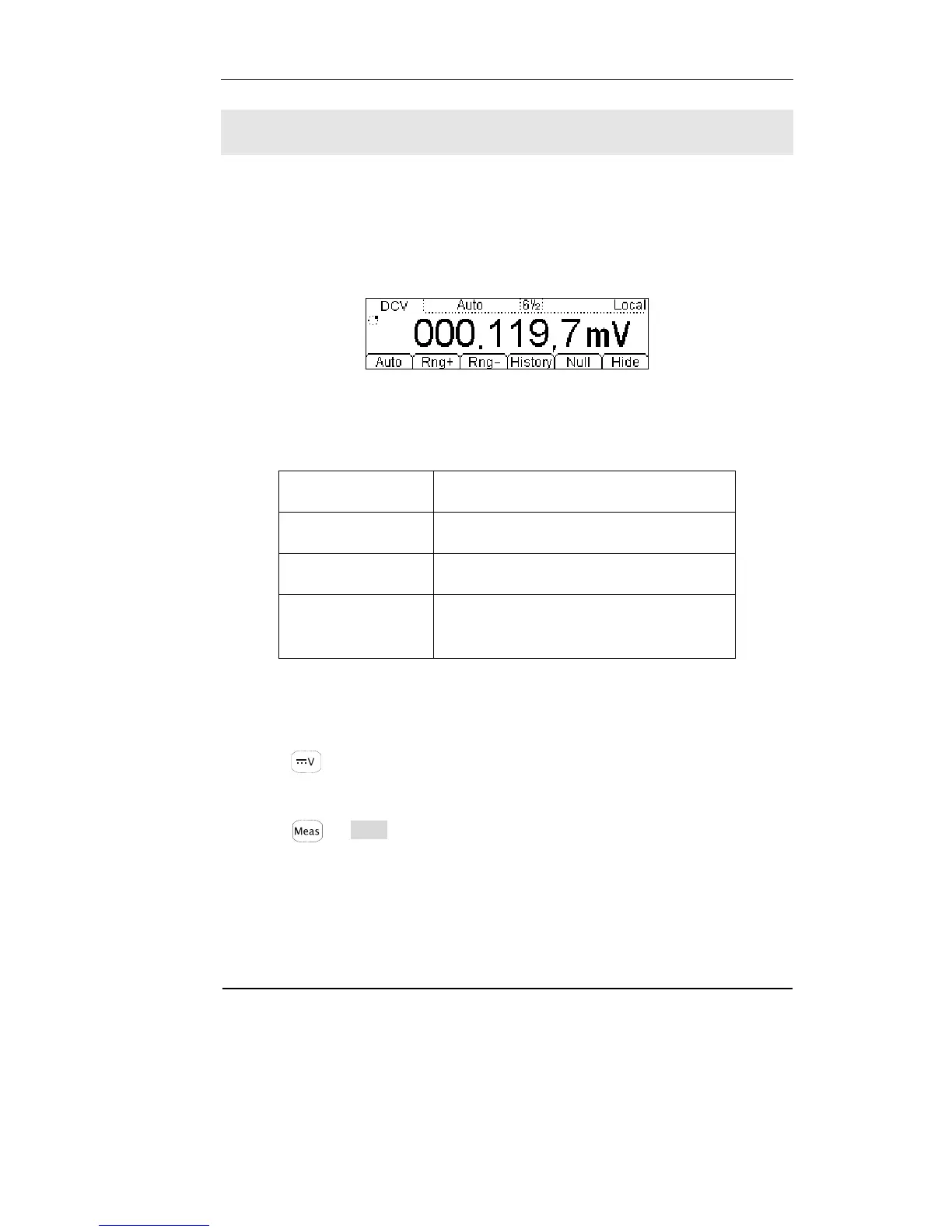

Figure 1-7
DC Voltage measurement data interface
Table 1-1 DC Voltage measurement characteristics
Five Range 200mV, 2V, 20V, 200V, 1000V
Max Resolution 100nV
Import Protection 1000V on all ranges (HI Terminal)
Configurable
Parameters
Range, DC impedance, Null value
Basic measurement:
1. Connect test leads as Figure 1-8 shown. Red test lead connects the HI Terminal,
Black test lead connects the LO Terminal.
2. Press to select the DC Voltage measurement function.
3. According to the voltage measuring scope, choose the correct range.
4. Setup the DC impedance.
Press Æ Res , to setup the DC input impedance. Default value of the DC
input impedance will be 10MΩ, this parameter had been setup, and users may carry
on the DC Voltage measurement directly without modification.
5. Set the Null value
Null computing will be an option operation, it could be setup in accordance with
user demand. If user does not implement Null computing, this parameter is not
To Next Page
