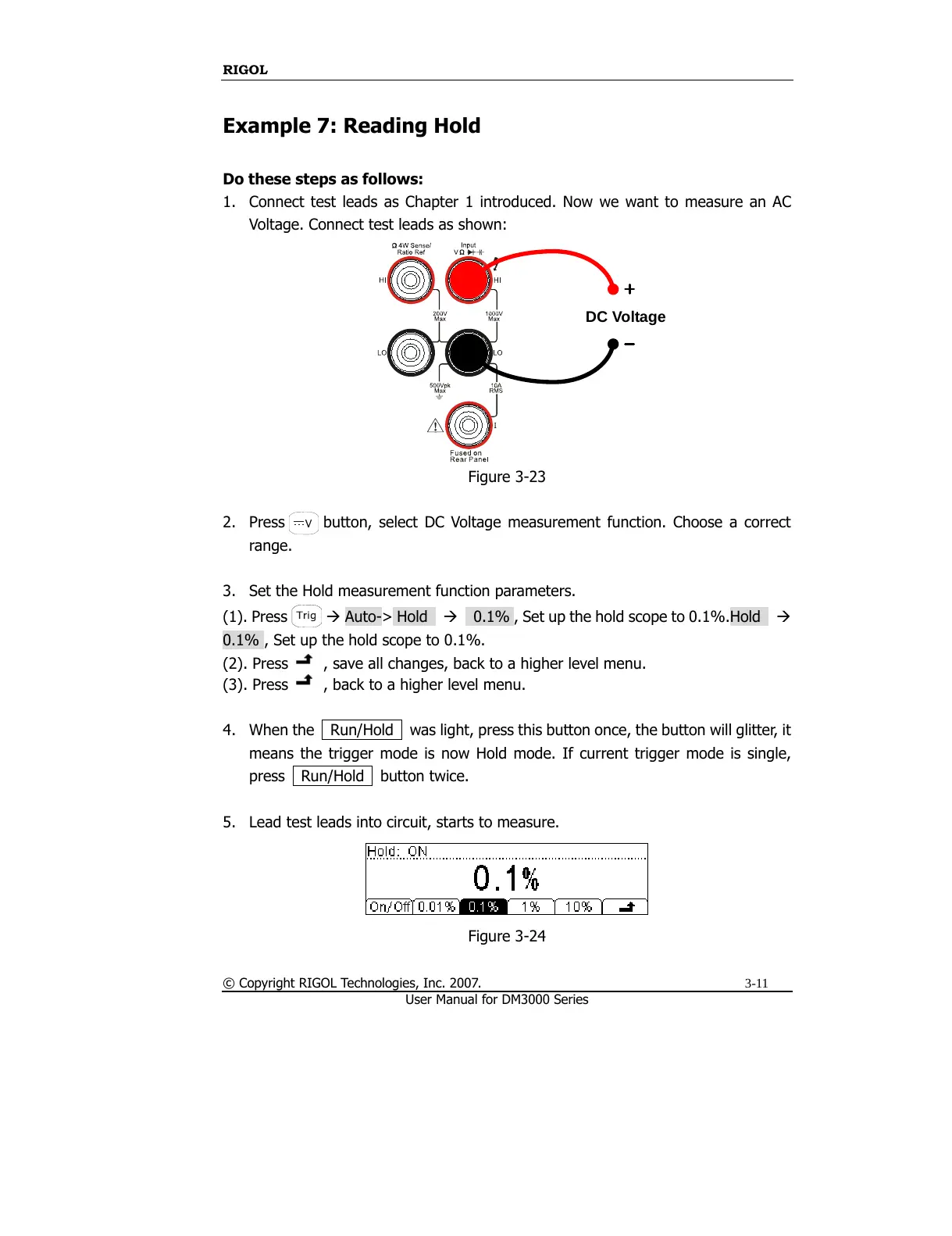

Example 7: Reading Hold
Do these steps as follows:
1. Connect test leads as Chapter 1 introduced. Now we want to measure an AC
Voltage. Connect test leads as shown:
Figure 3-23
2. Press button, select DC Voltage measurement function. Choose a correct
range.
3. Set the Hold measurement function parameters.
(1). Press Æ Auto-> Hold Æ 0.1% , Set up the hold scope to 0.1%.Hold Æ
0.1% , Set up the hold scope to 0.1%.
(2). Press
, save all changes, back to a higher level menu.
(3). Press
, back to a higher level menu.
4. When the Run/Hold was light, press this button once, the button will glitter, it
means the trigger mode is now Hold mode. If current trigger mode is single,
press Run/Hold button twice.
5. Lead test leads into circuit, starts to measure.
Figure 3-24
