User Manual for DM3000 Series
High-speed Data Logger
High-speed data logger displaying areas include: display mode settings, start acquire
mode settings, and end acquire mode settings. When finish all settings, press RUN
button to begin the high-speed data logger.
Setting high-speed data logger parameters
Press button, enter the menu shown below:
Figure 2-54

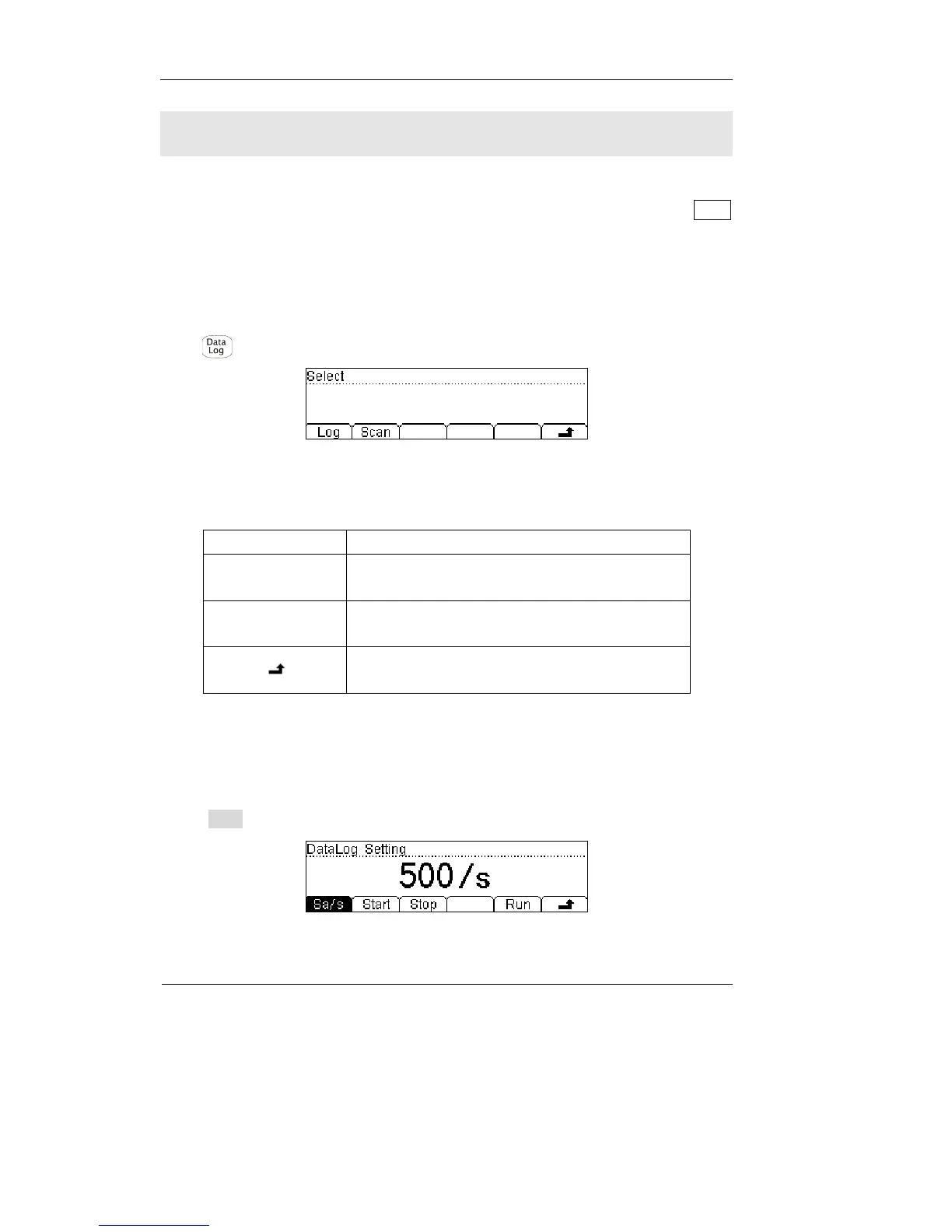

The main interface of DataLog
Table 2-33 Data Logger Parameter Setting Function Menu Explanation
Function Menu Explanation
Log
Gather the data of DCV, DCI, 2WR or 4WR
continuously.
Scan
Use the scanning modle to test the 16-roads
signals continuously.
Save all changes, back to a higher level menu.
Notice: Once in the DataLog mod, do not use the Auto range option function but
choose the appropriate range option, thus the Log rates can be guaranteed.
Press Log enter the data logger interface shown below.
Figure 2-55
The DataLog setting interface
