RIGOL
©
Copyright
RIGOL
T
echnologies,
Inc.
2007
.
3-9
User Manual for DM3000 Ser
ies
5.
I
n
D
e
f
i
n
e
i
n
t
e
r
f
a
c
e
,
P
r
e
s
s
S
E
G
Æ
Arith
Æ
Li
ne , select the arithmetic: Line.

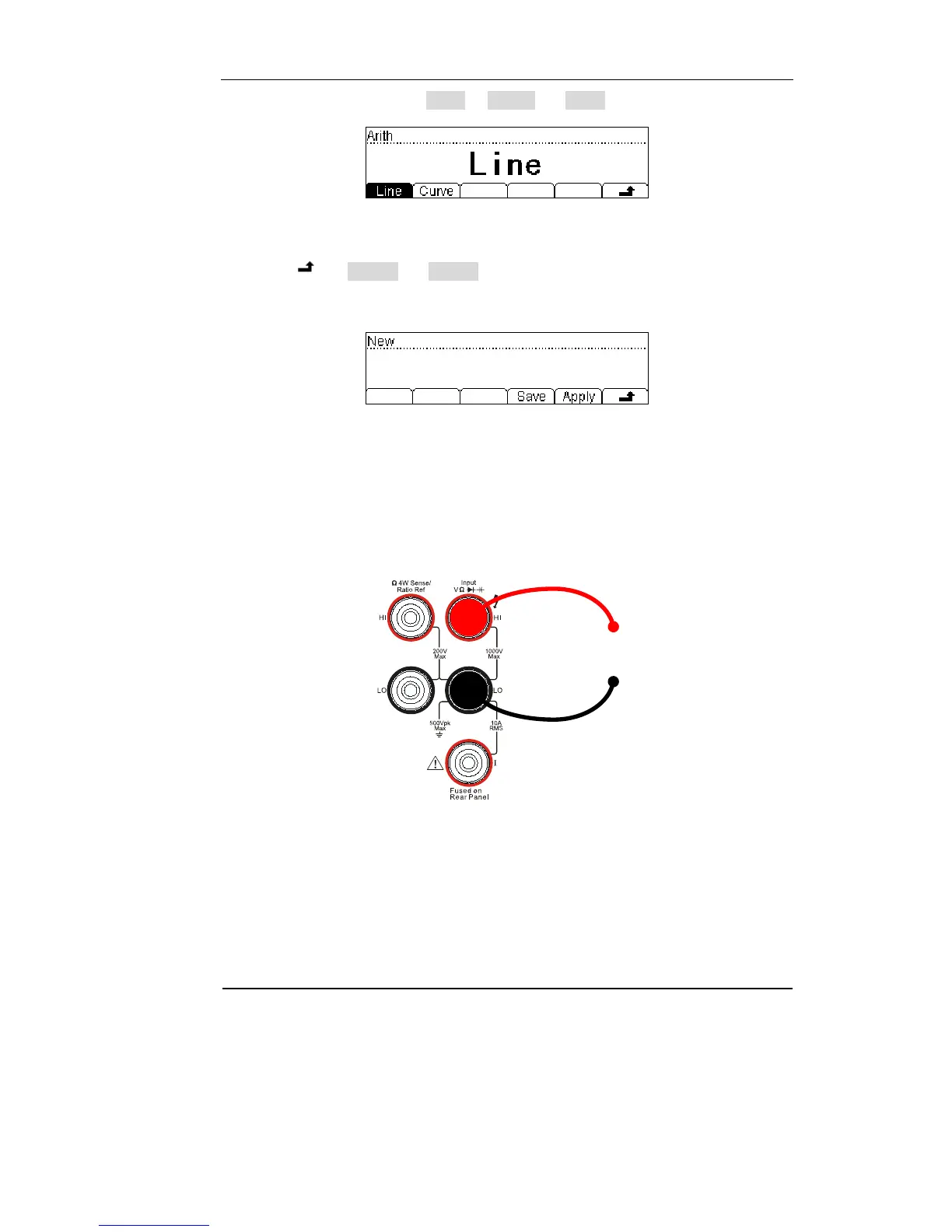

Figure 3
－
19
6.
Press
Æ
D
o
n
e
Æ
Apply , save all the data into the local s
t
orage, and
applies it immediately.
Figure 3
－
20
7. According to the sensor
type, select an appropriate connection met
hod.
(1). Voltage, resistance, frequency sensor:
Figure 3
－
21
Sensor
120
122
Table of Contents
Default Chapter
10
Table of Contents
10
Chapter 1 : Basic Multimeter Operations
13
General Inspection
14
Handle Adjustment
15
The Front/Rear Panel and User Interface
16
To Measure DC Voltage
19
To Measure AC Voltage
21
To Measure DC Current
23
To Measure AC Current
25
To Measure Resistance
27
To Measure Capacitance
31
To Test Continuity
33
To Check Diodes
35
To Measure Frequency and Period
37
To Measure Arbitrary Sensor
41
To Choice Digits Resolving Index
45
To Choose Data Digit Display
46
To Choose Range Options
47
To Control Trigger Options
49
Chapter 2 : Operating Your Multimeter
51
To Set up Measurement Parameters
52
DC Input Resistance
55
Null Measurement
56
Frequency Measurement
60
Math Functions
62
Limit Measurement
66
To Set up Triggering Parameter Function
69
Reading Hold
71
External Triggering
74
Store and Recall
77
To Set up the Utility
82
System Settings
83
High-Speed Data Logger
96
Multi-Route Scanning
103
How to Use the Built-In Help System
111
Chapter 3 : Application & Examples
113
Example 1: Reading Statistic Functions
113
Example 2: Elimination Test Leads Resistance Error
115
Example 3: Db Measurement
116
Example 4: Dbm Measurement
117
Example 5: Limit Test
118
Example 6: Temperature Sensor
119
Example 7: Reading Hold
123
Chapter 4 : Prompt Messages& Troubleshooting
125
Prompting Message
125
Troubleshooting
127
Chapter 5 : Support & Service
129
Chapter 6 : Appendix
132
Appendix A: Specifications
132
Appendix B: DM3000 Series Accessories
135
Appendix C: General Care and Cleaning
136
