RIGOL
1-20 © Copyright RIGOL Technologies, Inc. 2007.
User Manual for DM3000 Series

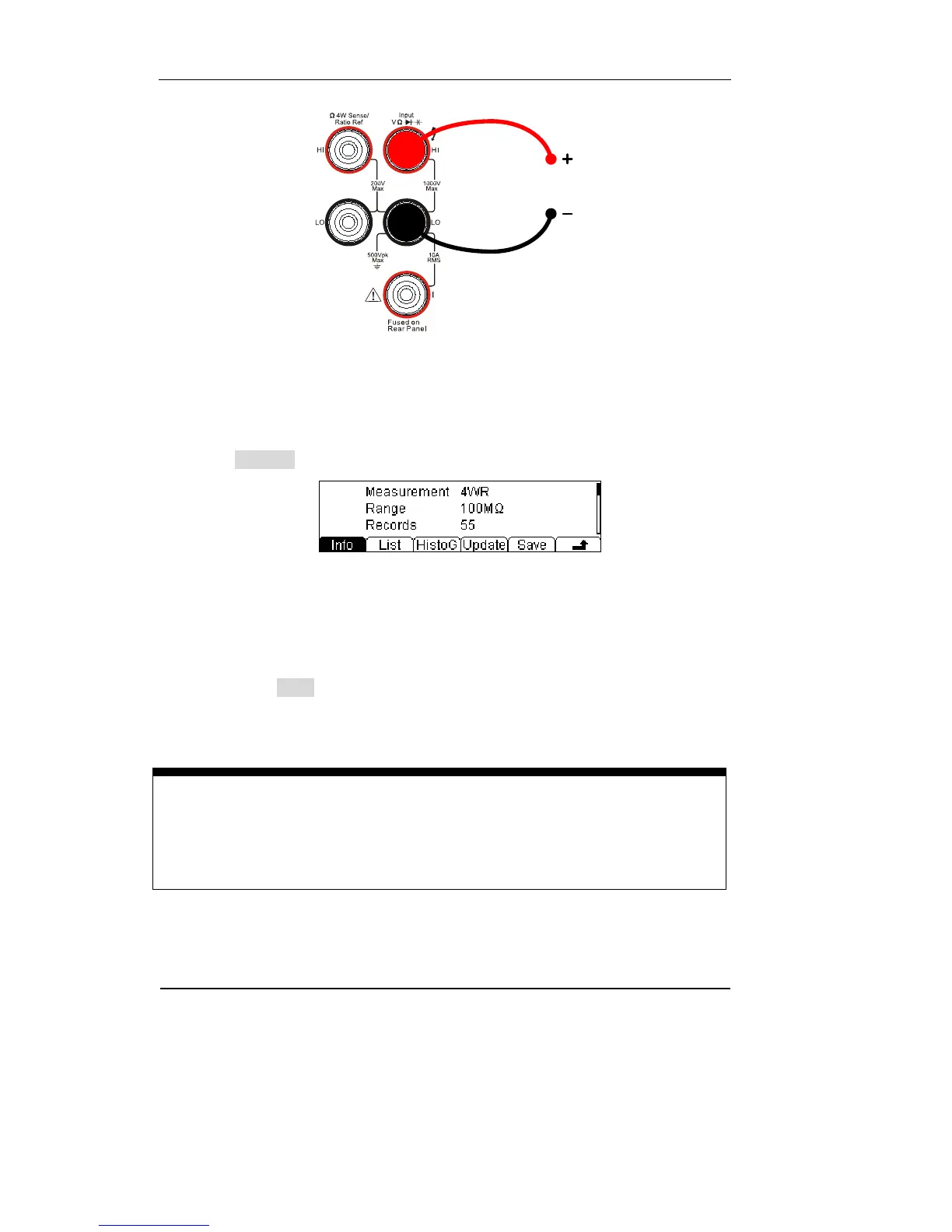

Figure 1-26
Capacitance measurement instruction chart
6． Measurement history data processing
Press History , enter the menu shown below:
Figure 1-24
To check or save the data that has measured by current measurement function,
you can use the history function. In this function you can get the “Info” (information),
“List” and “Graph” of this measurement. Also, you can save this information data
with pressing the Save softkey.
NOTE
Before measuring the electrolytic capacitance, you should make the two legs of the
electrolytic capacitance short circuit and let it be discharged, and then you can
measure it.
Capacitance
To Next Page
