Chapter 2 Front Panel Operations RIGOL
DP800 User’s Guide 2-33
User-defined Start-up Interface
DP800 allows users to define the start-up interface. You can store the content to be
displayed in an USB storage device in BMP format. Insert the USB storage device into
the USB HOST interface at the rear panel of the power supply, select the desired BMP
file and set the coordinate of the file in the interface.
Press Display  CustomGUI to enter the interface as shown in the figure below.

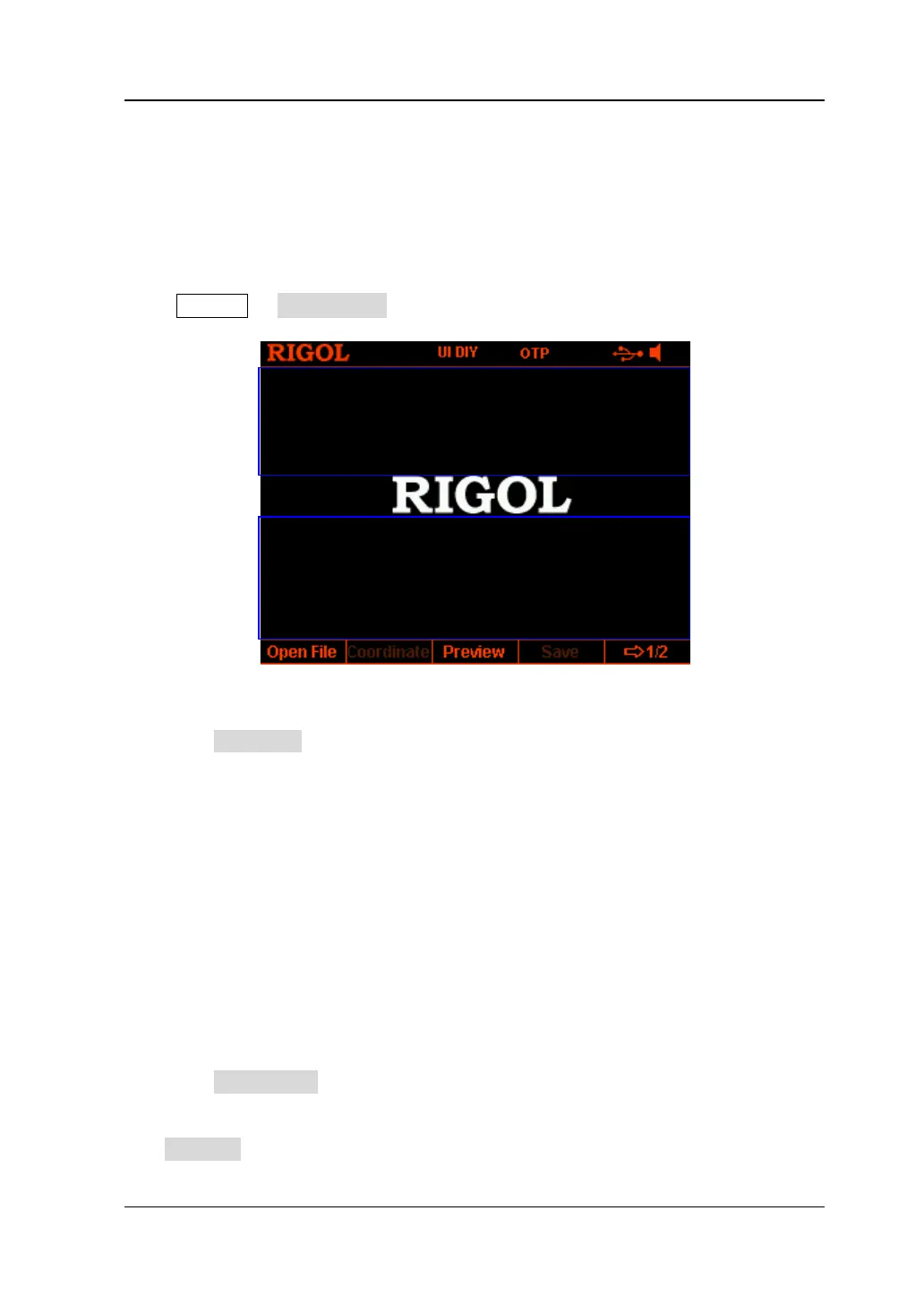

Figure 2-8 User-defined Start-up Interface
 OpenFile:
Press Open File, the instrument enters the store and recall interface and please
select the desired BMP file.
Note: The internal memory does not support BMP file and please store the
content to be displayed in an USB storage device in BMP format. Besides, the
size of the picture cannot exceed 325×56 pixels.
 Coordinate: set the coordinate of the picture selected in the interface.
Note: The coordinate set is the coordinate of the upper-left corner of the picture
in the interface.
You can display the picture selected in Area 1 and Area 2 as shown in Figure 2-8
.
Wherein, the coordinate range of Area 1 is from (0,0) to (320,55) and the
coordinate range of Area 2 is from (0,145) to (320,220).
Press Coordinate and use the numeric keyboard or knob to set the coordinate.
 Preview: after selecting the desired bitmap file and setting the coordinate, press
Preview to preview the user-defined start-up interface. Press any key to exit
区域 1
区域 2
