Store and Recall
DP800 allows users to store various kinds of files in internal or external memory and
to recall the files stored when required.
DP800 provides an internal non-volatile memory (C disk) and an external memory (D
disk).
1. C Disk
Provide 10 state file storage locations (STATE 1 to STATE 10), 10 record file
storage locations (REC 1 to REC 10), 10 timer file storage locations (TIMER 1 to
TIMER 10) and 10 delay file storage locations (DELAY 1 and DELAY 10). Users
can store the state file, record file, timer file and delay file in C disk.
2. D Disk
When USB storage device is detected at the USB HOST interface at the rear
panel, users can store state file, record file, timer file and delay file in the USB
storage device, copy the files in C disk to the USB storage device and the
number of files can be stored depends on the storage space of the USB storage
device.
Besides, you can store the desired content in an USB storage device in BMP
format and define it as the start-up interface according to the introduction in
“User-defined Start-up Interface
”.
Press Store at the front panel to enable the store and recall function and the store
and recall interface is as shown in the figure below.

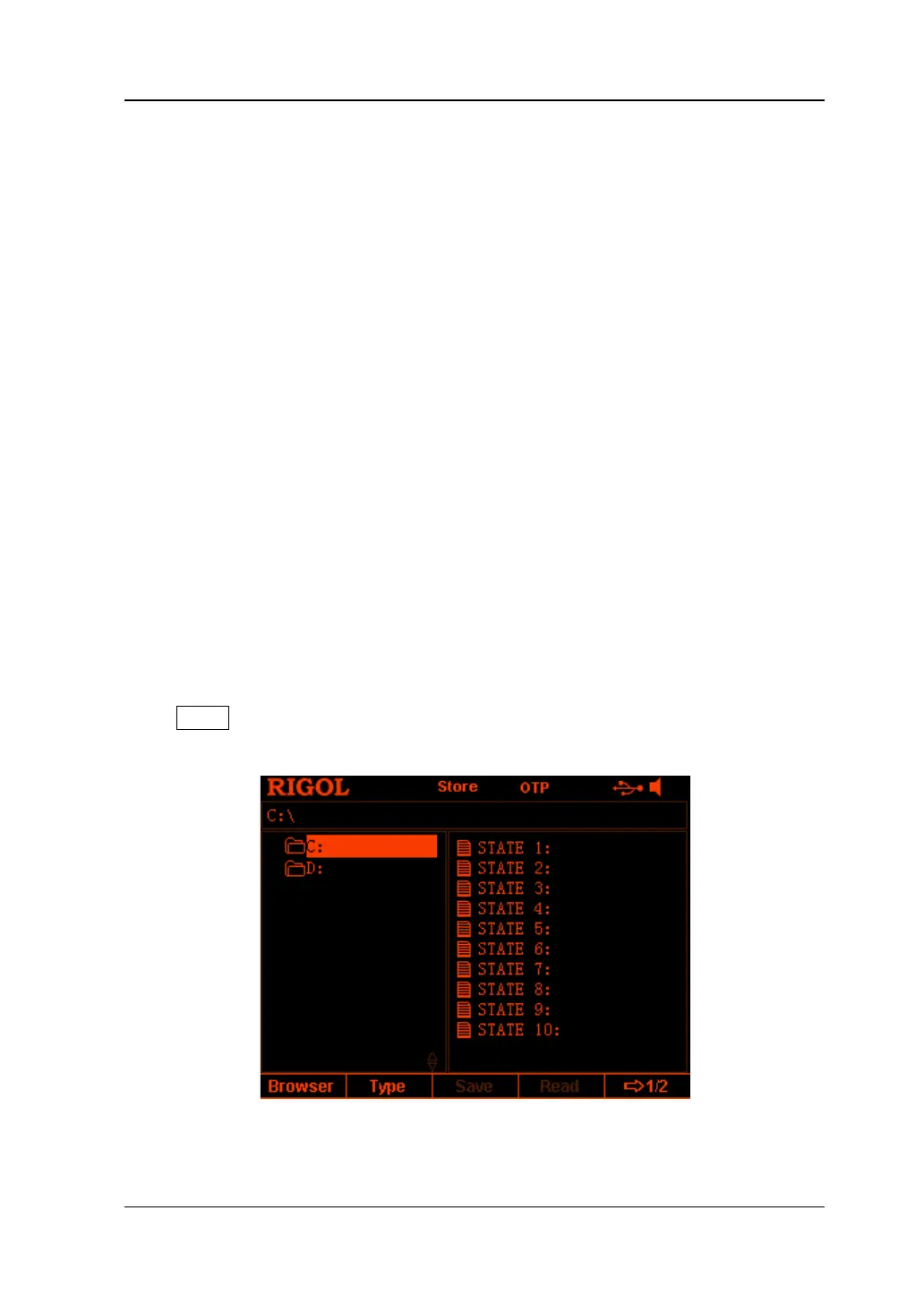

Fuigure 2-9 Store and Recall Interface
