7. Output Terminals

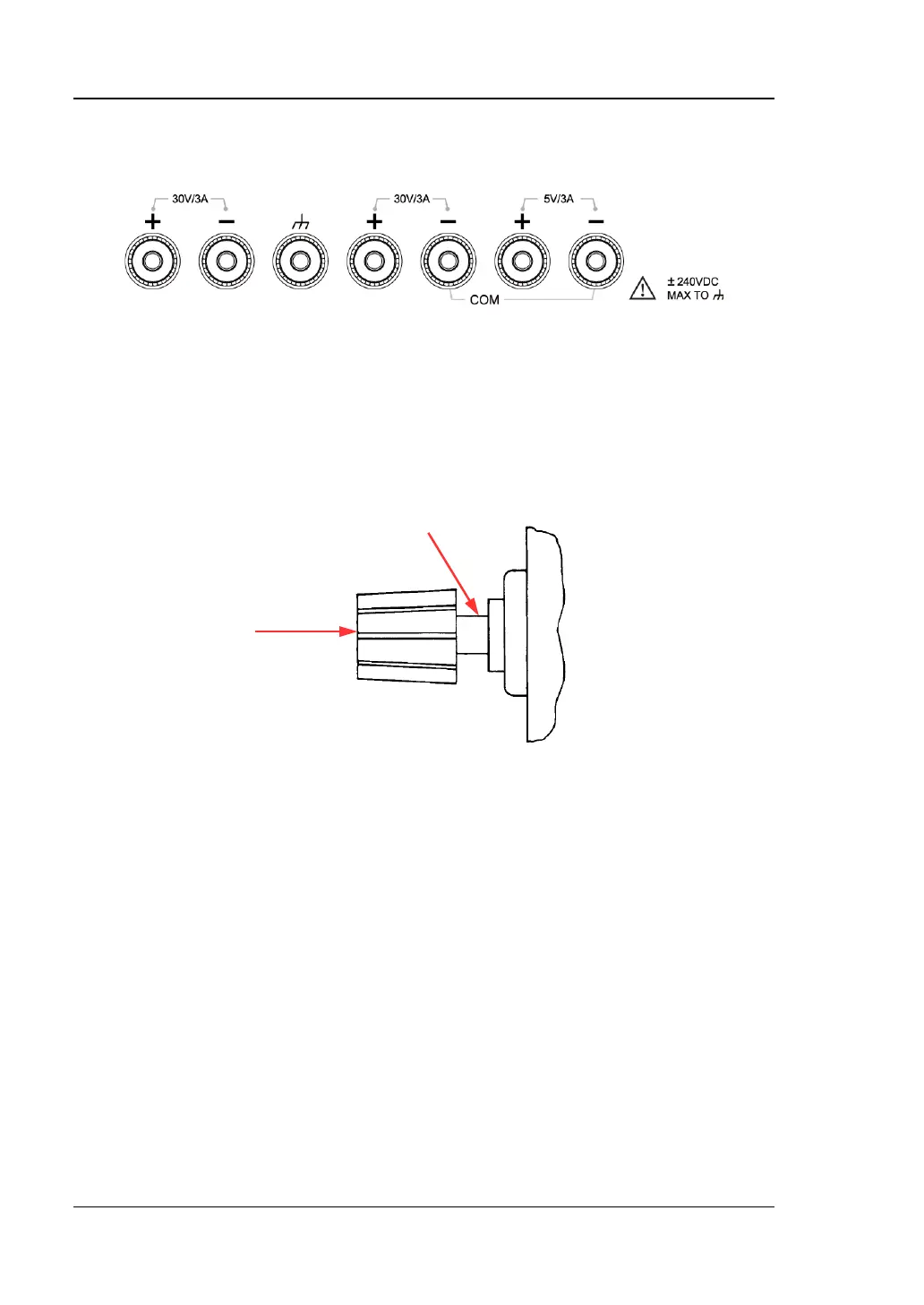

(1) (2) (3) (4)
(1) Output the voltage and current of CH1.
(2) This terminal is connected to the instrument chassis and ground wire
(power cord ground terminal) and is in grounded state.
(3) Output the voltage and current of CH2.
(4) Output the voltage and current of CH3.
Connection methods of the output terminal:
Method 1:
Connect the test lead to A of the output terminal.
Method 2:
Rotate the outer nut of the output terminal counterclockwise and connect
the test lead to B of the output terminal; then, rotate the outer nut of the
output terminal clockwise. This connection method can eliminate the error
caused by the resistance of the output terminal.
Note: Connect the positive terminal of the test lead with the (+) terminal
of the channel output and connect the negative terminal of the test lead
with the (-) terminal of the channel output.
