Chapter 2 Front Panel Operations RIGOL
DP800 User’s Guide 2-37
Save
1. Press Store  Type to select the desired file type.
Note: The save operation is available only when the file type is “*.rsf”. The
“*.rtf” and the “*.rdf” files can be saved separately by pressing Timer  Timer
Set  Save and Timer  Delay Set  Save and the “*.rof” file is saved
automatically in the specified path when you close the recorder.
2. Press Store  Browser to switch the cursor to the file area and use the knob
or up/down direction keys to select the storage location of the file. Press Save
to open the filename input interface as shown in the figure below.

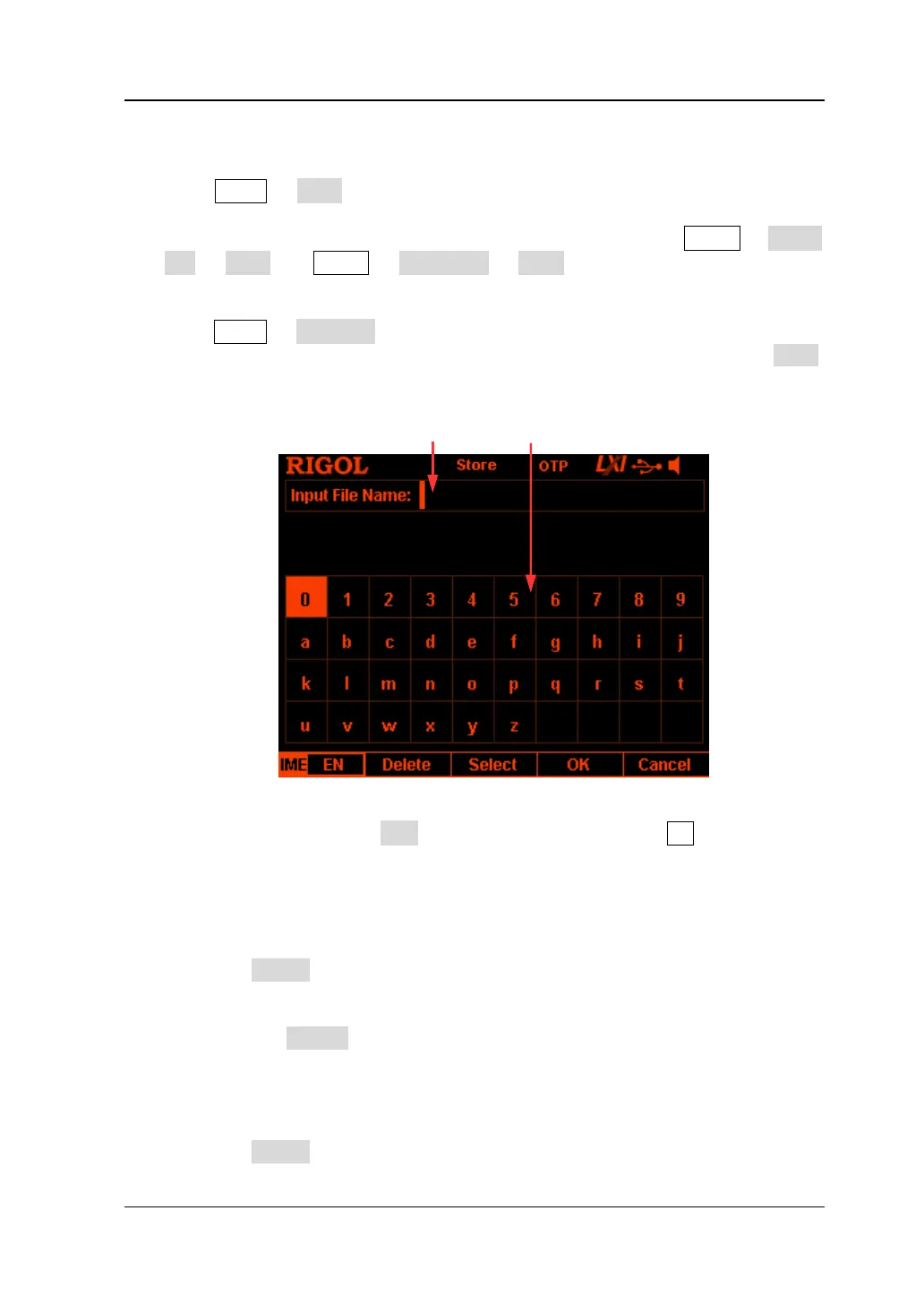

Figure 2-10 Filename Input Interface (English)
3. Input the filename: press IME to select “CH” or “EN”. Press . in the numeric
keyboard to switch between English uppercase and lowercase and switch to
lowercase before selecting Chinese input method.
 English Input (including number input)
Use the knob to select the desired character in the “Virtual Keyboard” and
press Select to select this character; the character selected is displayed in
the “Filename Input Area”. Use the same method to input all the characters
in the filename. The length of the filename cannot exceed 9 characters. You
can press Delete to delete the character currently at the left of the cursor
in the “Filename Input Area”.
 Chinese Input
Use the knob to select the desired character in the “Virtual Keyboard” and
press Select to select this character; the character selected is displayed in
Filename Input Area Virtual Keyboard
