Chapter 2 Front Panel Operations RIGOL
DP800 User’s Guide 2-51
Preset Setting
Press Utility Preset to define the setting recalled by Preset at the front panel.
Pressing Preset can restore the instrument to factory setting or recall the
user-defined settings according to the setting of Preset Key.
Restore to factory setting
Press Utility Preset to enter the interface as shown in the figure below and by
default, “Defaultis selected; at this point, pressing Preset at the front panel will
restore the instrument to factory setting as shown in Table 2-2. Press Preset Key
repeatedly to select the 4 groups of user-defined settings. For details, refer to the
introduction in Recall the user-defined setting.

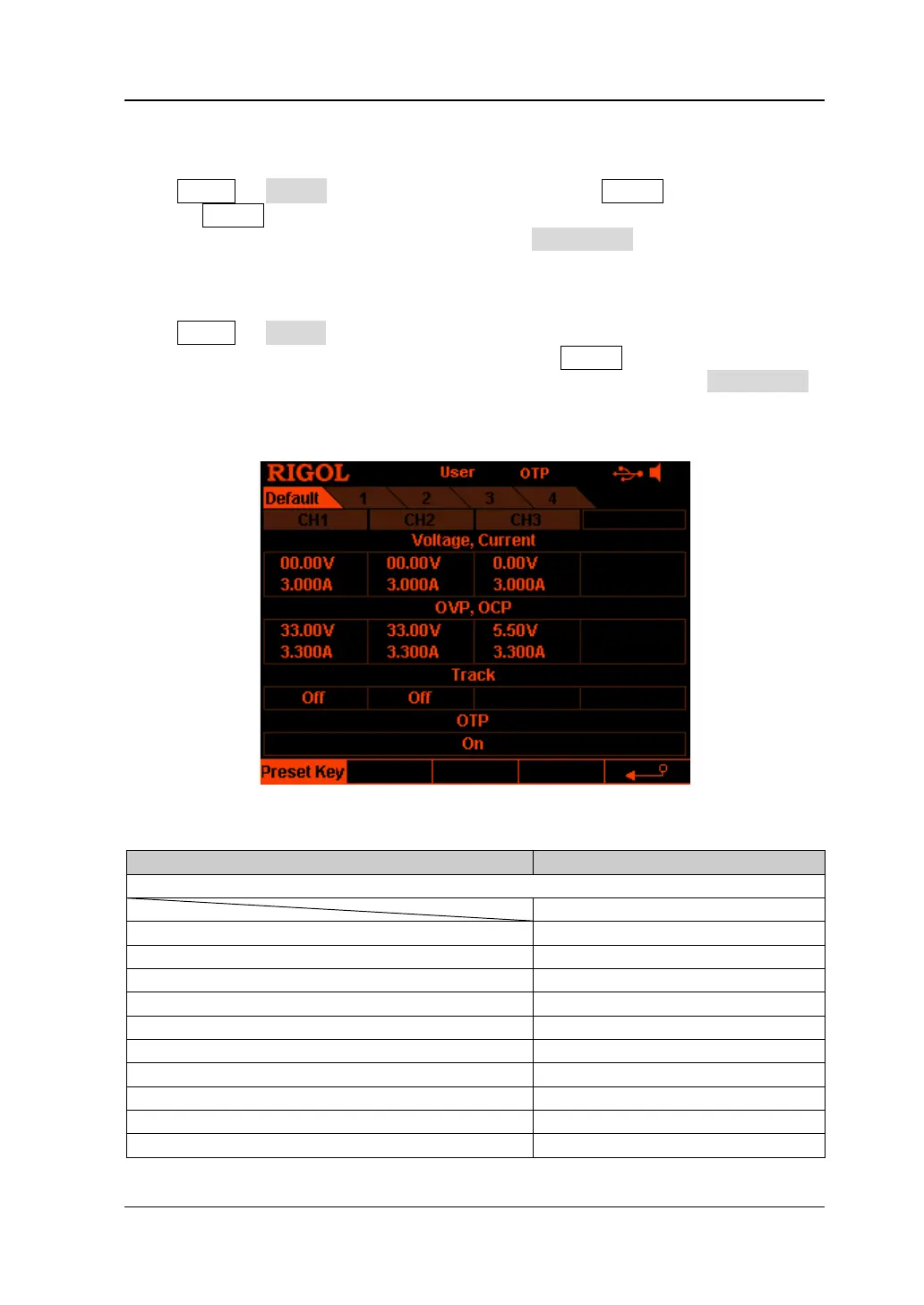

Figure 2-14 Preset Value Type Selecting Interface
Table 2-2 Factory Setting
Parameter
Factory Setting
Channel Parameters
DP832
CH1 Voltage/Current Setting Values 00.00V, 3.000A
CH2 Voltage/Current Setting Values
00.00V, 3.000A
CH3 Voltage/Current Setting Values
0.00V, 3.000A
CH1 Voltage/Current Limits 33.00V, 3.300A
CH2 Voltage/Current Limits 33.00V, 3.300A
CH3 Voltage/Current Limits 5.50V, 3.300A
CH1 OVP\OCP On/Off
Off/Off
CH2 OVP\OCP On/Off
Off/Off
CH3 OVP\OCP On/Off
Off/Off
CH1 Track On/Off Off
