Delayed Scan:
The Delayed Scan is a magnified portion of the main waveform window. Use Delayed
Scan to locate and horizontally expand part of the main waveform window for a more
detailed (higher horizontal resolution) analysis of signal. The Delayed Scan time base
setting cannot be set slower than the Main time base setting.

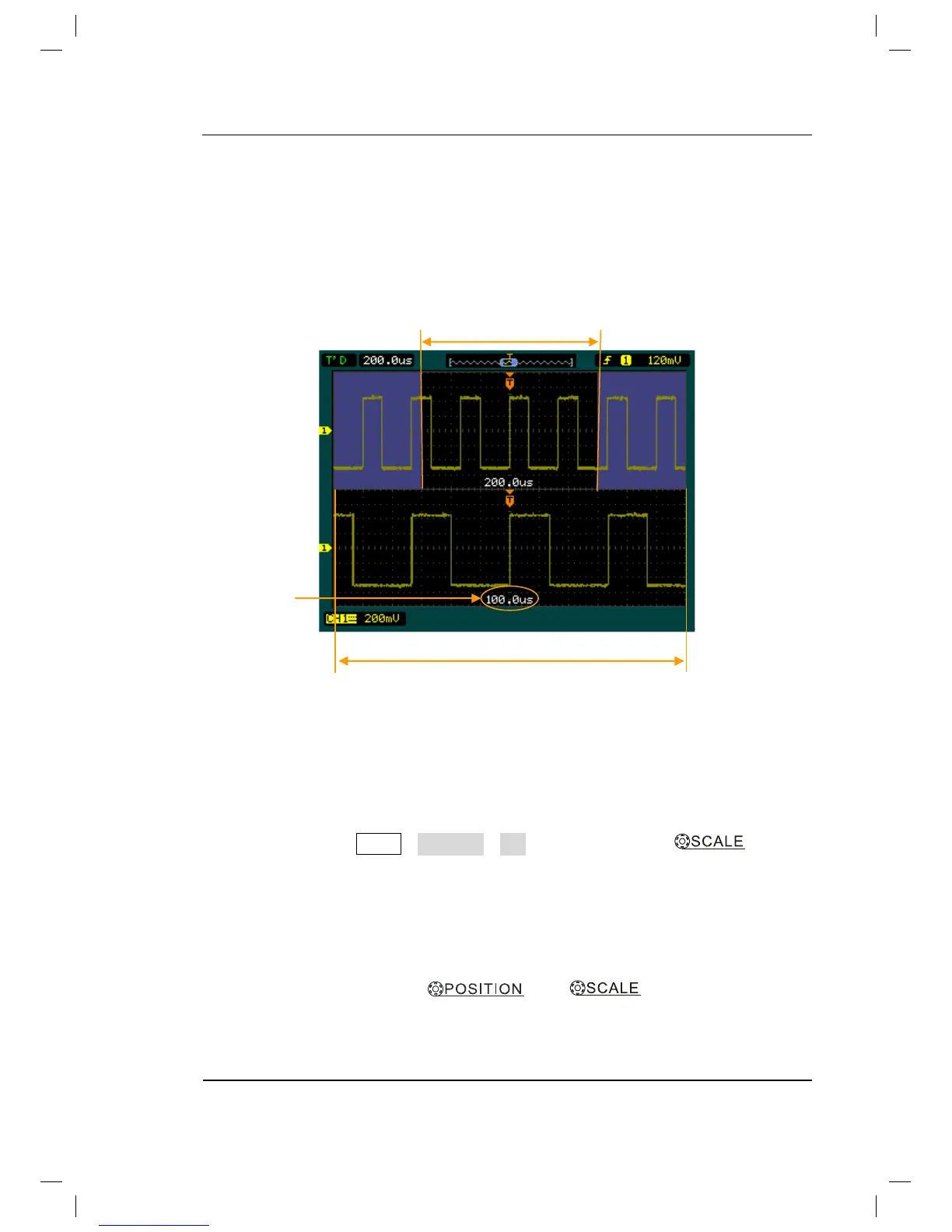

Figure 2-37
Delayed Scan windows
The following steps show you how to use Delayed Scan.
1. Connect a signal to the oscilloscope and obtain a stable display.
2. Press horizontal MENUėDelayedėON or press horizontal knob to
enter Delayed Scan mode.
The screen will be split into two parts. The upper half displays the main waveform
window and the lower half displays an expanded portion of the main waveform
window. This expanded portion of the main window is called the Delayed Scan
window. Two blocks shaded at the upper half; the un-shaded portion is expanded in
the lower half. The horizontal
and knobs control the size
and position of the Delayed Scan. The value at top of the screen is the main time
base and the value on the center bottom means the Delayed Scan time base.
