RIGOL
© 2008 RIGOL T
echnologies, Inc.
User’s Guide for DS1000B Seri
es
2-53
The wavef
orm display
ed on the screen will chan
ge in conjuncti
on with the setting of
Acquire menu.

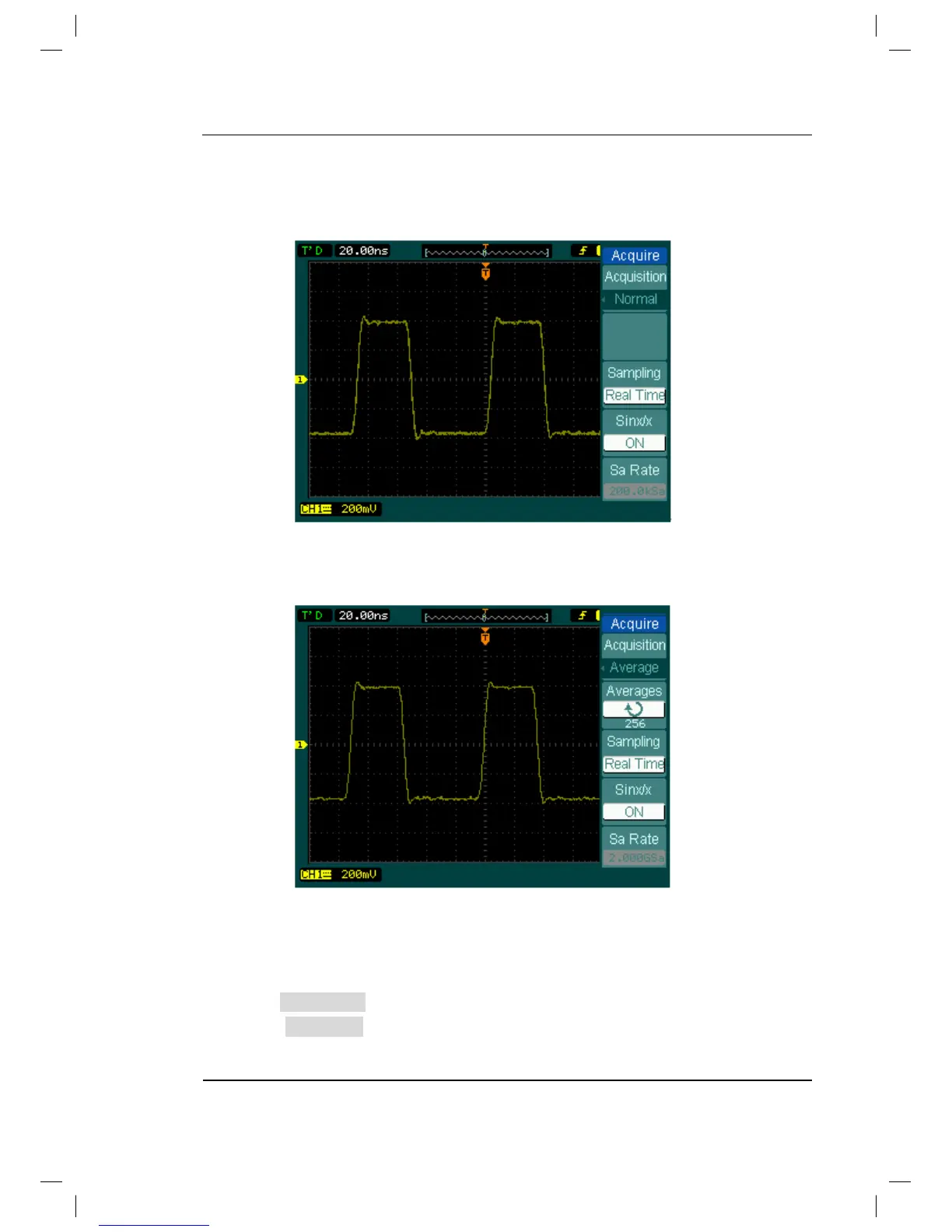

Figure 2-62
Signal that contains noise, an
d without aver
age sampling
Figure 2-63
Display signal after average 256 times sampling
Note:
z
Select
Real-time
acquisition to observe the single-shot or pulse signals.
z
Select
Equ-Time
to observe high frequency repetitiv
e signals.
80
82
