z To reduce the displayed random noise, select the Average Acquisition. This
mode would make the screen refresh slower.
z To Avoid signal aliasing, select Peak Detect Acquisition.

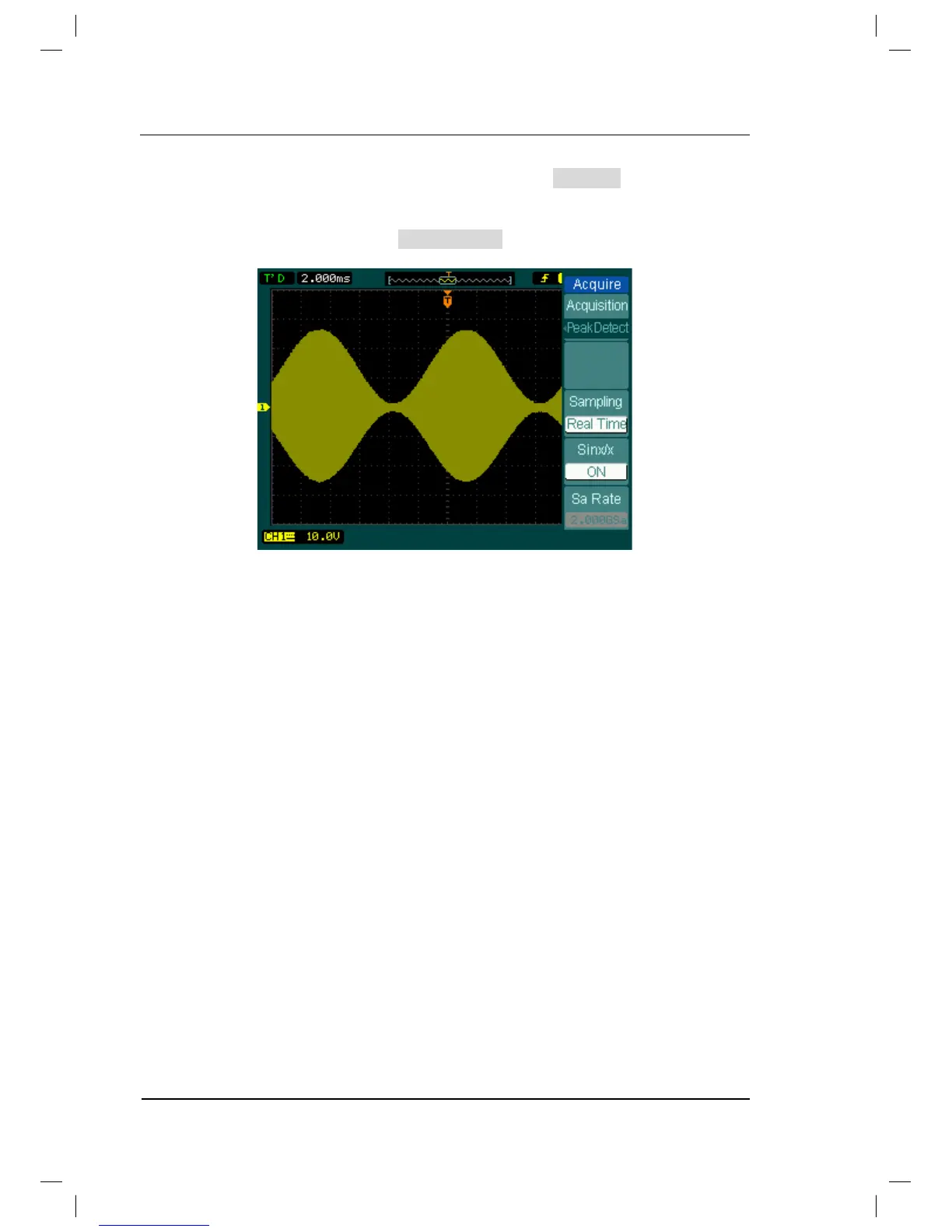

Figure 2-64
Signal with Peak Detect Acquisition
The Peak Detect effect is shown as the figure above.
Stop Acquisition: When the scope is acquiring waveforms, the waveforms is in a
live status; when acquisition is stopped, frozen waveform will be displayed, the
position and scale can still be adjusted by vertical control and horizontal control.
