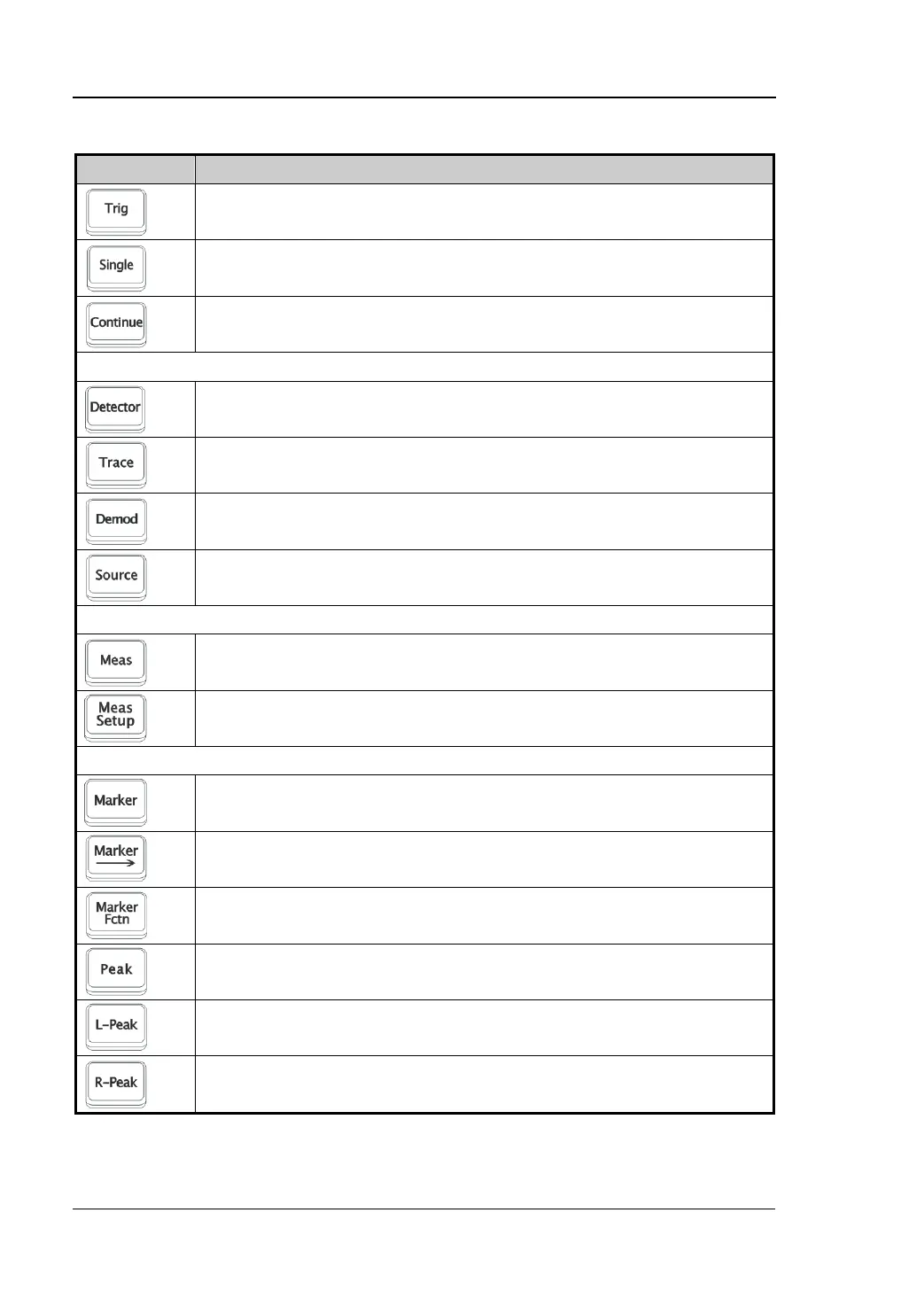

Function keys description (Continued)
Keys Description
Sets the trigger mode and corresponding parameters.
Sets the sweep mode to Single.
Sets the sweep mode to Continue.
Sets the detection mode of the analyzer.
Sets the parameters relate to sweep trace.
Sets the demodulation.
Sets the tracking generator*.
Advanced measure**
Select a desired advanced measurement function.
Sets the parameters for the selected measurement function.
Marker measure
Reads the amplitude, frequency and sweep time of a certain point on
the trace.
Sets other system parameters based on the current marker value.
Special function such as noise marker, N dB bandwidth measure and
frequency counting.
Searches the peak and opens the Peak menu immediately.
Measures the left peak directly.
Measures the right peak directly.
