Chapter 3 Remote Control RIGOL
User’s Guide for DSA800/E Series

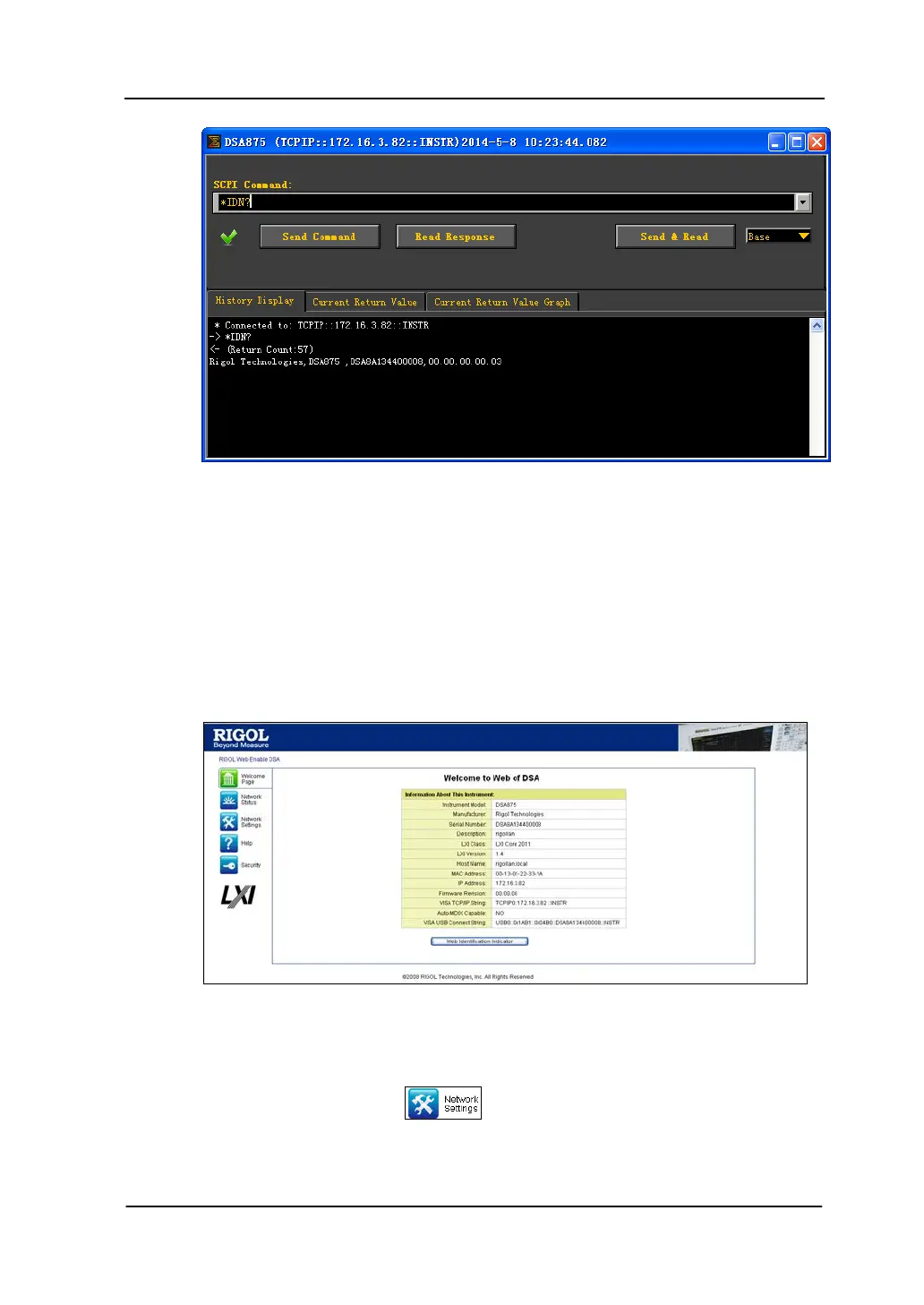

Figure 3-5 Write and Read Commands via LAN
6) Load LXI webpage
The analyzer conforms to LXI Core 2011 Device standards. You can load
LXI webpage conveniently through Ultra Sigma (right-click the resource
name and select “LXI-Web”). By default, some important information
about the analyzer such as the model, manufacturer, serial number,
description, MAC address and IP address is displayed on the webpage
shown as shown in the figure below.
Figure 3-6 LXI Webpage
Note: If you want to view or modify the network settings of this
instrument, please click
and input the initial password “RIGOL”
(must be uppercase letters) in the pop-up window (by default, the user
