Rigol DSA815 User Manual

RIGOL Chapter 1 Quick Start
User’s Guide for DSA800/E Series
1-20
Menu Operation
There are 7 types of menus according to their operation modes. Each type of menu
and its operation method are introduced below.

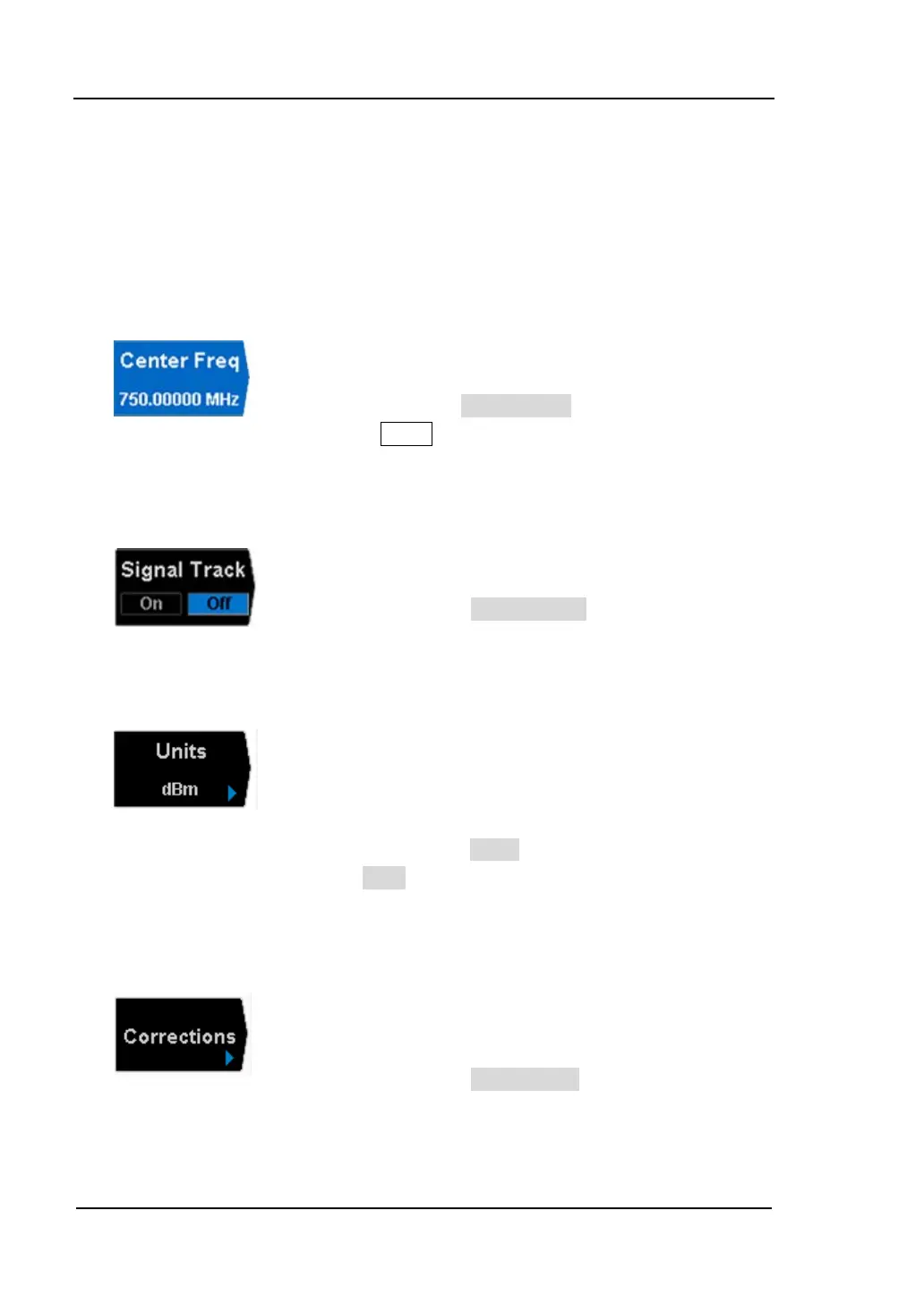

1. Parameter Input
2. State Switching
3. Enter Lower Menu (with parameter)
4. Enter Lower Menu (without parameter)
When selected, use the numeric keys to modify the
parameters directly.
For example, select Center Freq, input the desired figure
and press Enter to change the center frequency.
Press the corresponding menu key to switch between
the sub-options.
For example, press Signal Track to enable or disable
the signal tracking function.
Press the corresponding menu key to enter the lower
menu and change the option currently selected. The
parameter in the upper menu will change when you
return to the upper menu.
For example, press Units to enter the lower menu.
Select dBm and return to the previous menu. The unit
of Y-axis changes to dBm.
Press the corresponding menu key to enter the lower
menu.
For example, press Corrections to enter the lower
menu directly.
