Rigol DSA815 User Manual

Chapter 1 Quick Start RIGOL
User’s Guide for DSA800/E Series
1-21

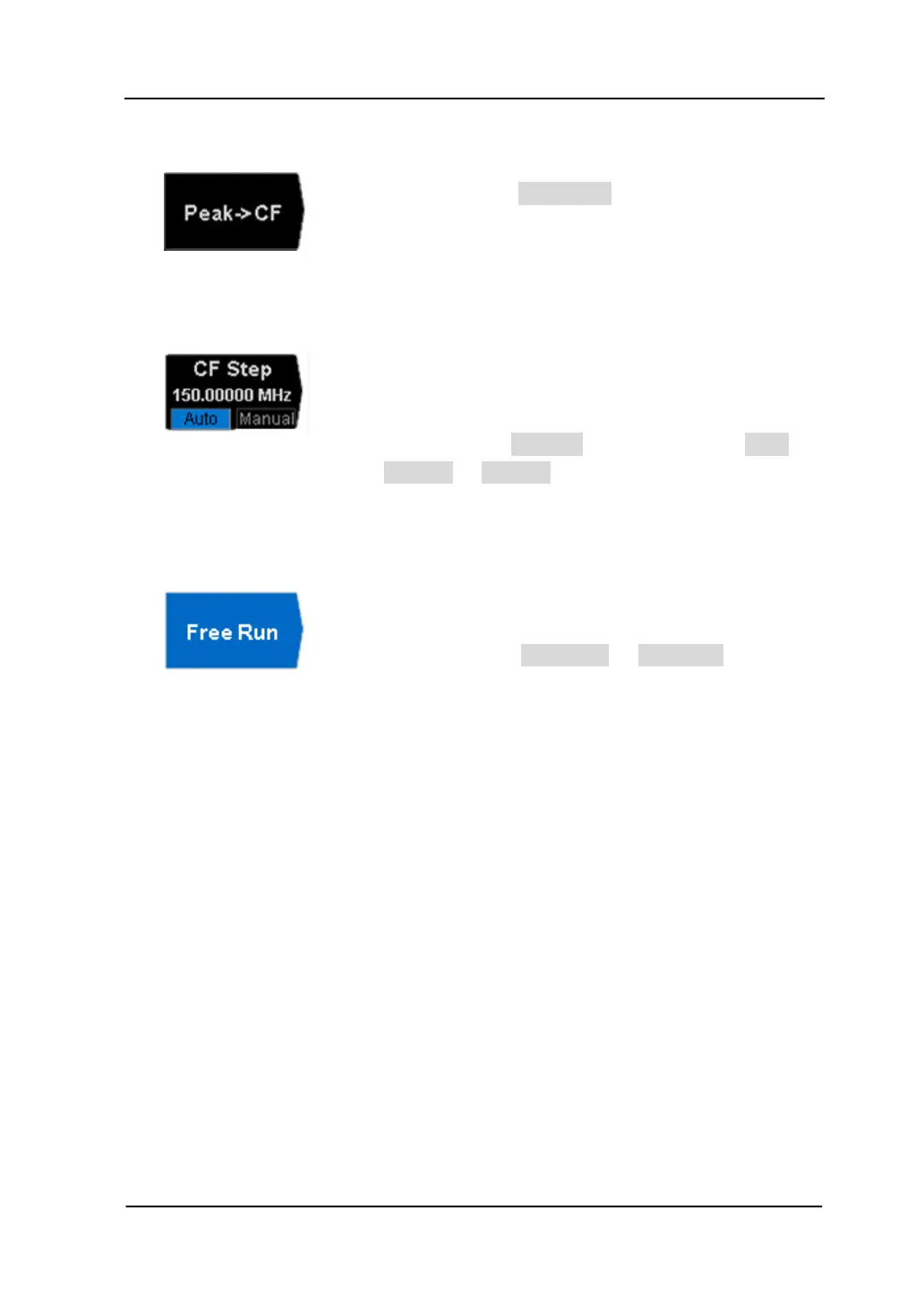

5. Direct Execution
6. Function Switch + Parameter Input
7. State Selection
Press the key to execute the corresponding function.
For example, press Peak->CF to execute a peak search
and set the center frequency of the analyzer to the
frequency of the current peak signal.
Press the corresponding menu key to switch between
functions; change the parameter directly using the
numeric keys.
For example, press CF Step to switch between Auto
and Manual; if Manual is selected, you can directly
input the desired number to change the CF Step.
Press the corresponding menu key to modify the
parameter and return to the menu one level up.
For example, press Trig Type

Free Run to select
free trigger and the analyzer is in Free Run state at
present.

Rigol DSA815 Specifications

General

Frequency Range	9 kHz to 1.5 GHz
Input Impedance	50 Ω
Input Connector	N-type female
Weight	4.25 kg
Power Supply	100-240 V AC, 50/60 Hz
Phase Noise	-80 dBc/Hz @ 10 kHz offset
Amplitude Accuracy	±1.5 dB
Display	8 inch LCD (800x480 pixels)
Video Bandwidth (VBW)	1 Hz to 3 MHz
Maximum Input Level	+20 dBm
Interfaces	USB, LAN
Resolution Bandwidth (RBW)	100 Hz to 1 MHz
Dimensions	361 mm x 178 mm x 128 mm
