Rigol DSA815 User Manual

RIGOL Chapter 2 Front Panel Operation
User’s Guide for DSA800/E Series
2-84
Marker Measurements
Marker
The marker appears as a rhombic sign (as shown below) for identifying the point
on the trace. You can easily read the the amplitude, frequency and sweep time of
the marked point on the trace.

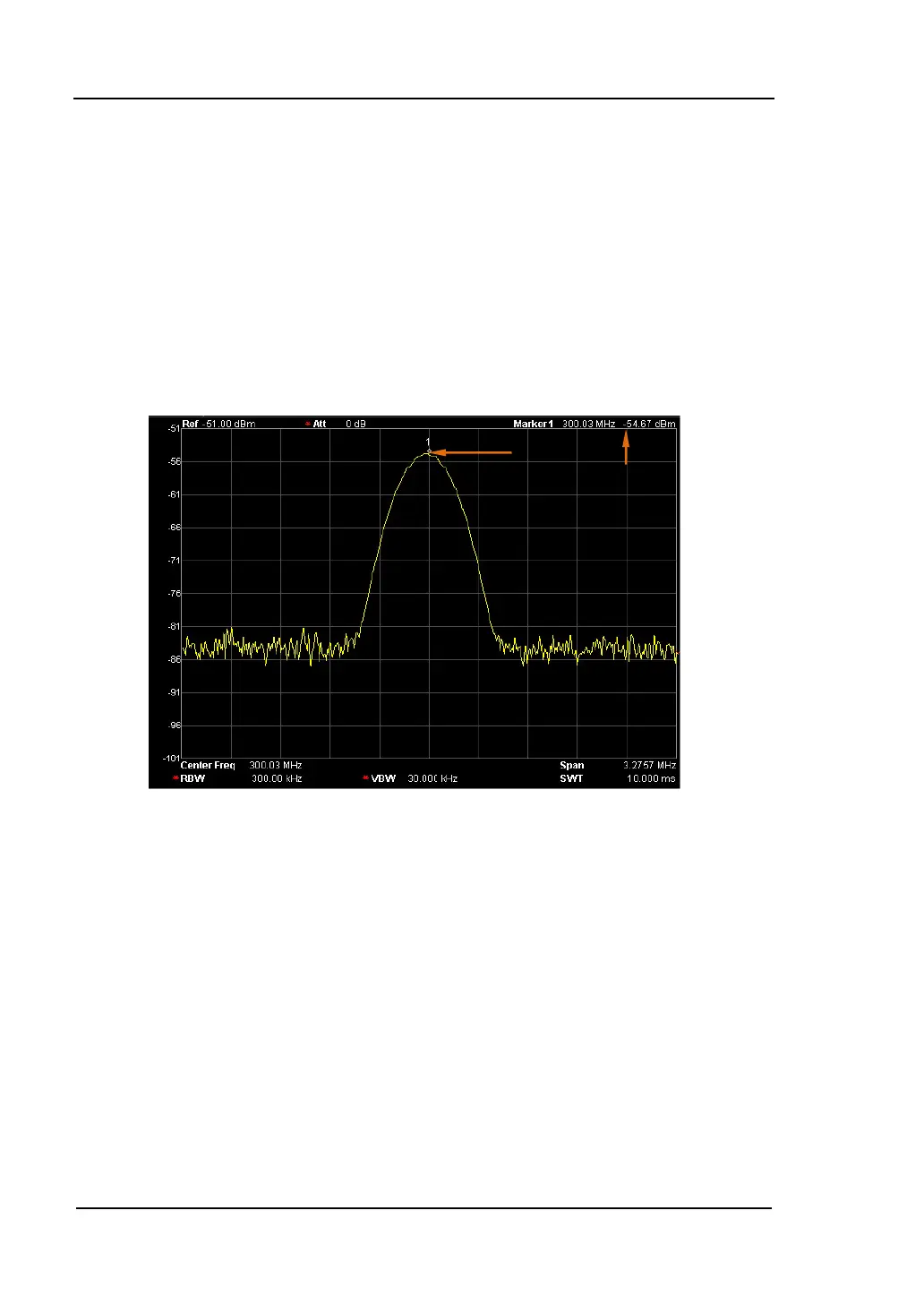

Figure 2-23 Schematic of the Marker
Key Points:
 The analyzer allows for up to four pairs of markers to be displayed at one time,
but only one pair or a single marker is active every time.
 You can use the numeric keys, knob or direction keys to modifiy the desired
frequency or time as well as view the readouts of different points on the trace.
Marker
Marker
Readings

Rigol DSA815 Specifications

General

Frequency Range	9 kHz to 1.5 GHz
Input Impedance	50 Ω
Input Connector	N-type female
Weight	4.25 kg
Power Supply	100-240 V AC, 50/60 Hz
Phase Noise	-80 dBc/Hz @ 10 kHz offset
Amplitude Accuracy	±1.5 dB
Display	8 inch LCD (800x480 pixels)
Video Bandwidth (VBW)	1 Hz to 3 MHz
Maximum Input Level	+20 dBm
Interfaces	USB, LAN
Resolution Bandwidth (RBW)	100 Hz to 1 MHz
Dimensions	361 mm x 178 mm x 128 mm
