Rigol DSA815 User Manual

RIGOL Chapter 1 Quick Start
User’s Guide for DSA800/E Series
1-24
To Input Filename
DSA800/E supports filenames consisting of Chinese characters, English letters,
numbers and #.
1. Enter the filename input interface
Press Storage and select the desired file type and storage location. Then
press Save to enter the filename input interface. You can press to
switch among English, Chinese and number input modes.

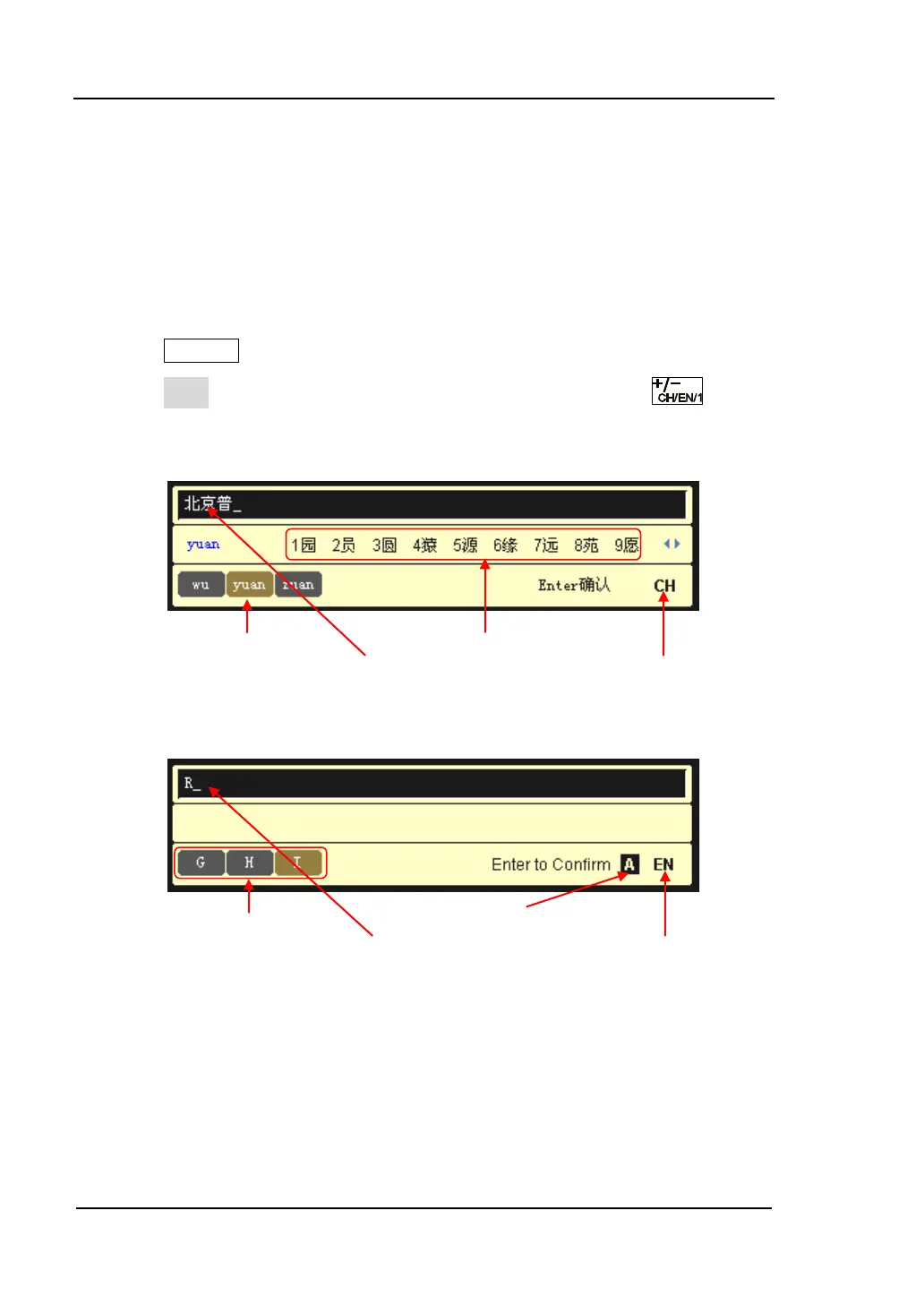

(a) Chinese Input Mode
(b) English Input Mode
Letter Selecting Area Uppercase/Lowercase
Letters Entered English Input Mode
Pinyin Selecting Area Chinese Character Selecting Arear
Chinese Characters Entered Chinese Input Mode

Rigol DSA815 Specifications

General

Frequency Range	9 kHz to 1.5 GHz
Input Impedance	50 Ω
Input Connector	N-type female
Weight	4.25 kg
Power Supply	100-240 V AC, 50/60 Hz
Phase Noise	-80 dBc/Hz @ 10 kHz offset
Amplitude Accuracy	±1.5 dB
Display	8 inch LCD (800x480 pixels)
Video Bandwidth (VBW)	1 Hz to 3 MHz
Maximum Input Level	+20 dBm
Interfaces	USB, LAN
Resolution Bandwidth (RBW)	100 Hz to 1 MHz
Dimensions	361 mm x 178 mm x 128 mm
