Rigol DSA815 User Manual

Chapter 1 Quick Start RIGOL
User’s Guide for DSA800/E Series
1-13
To Use the Numeric Keyboard
DSA800/E provides a numeric keyboard at the front panel (as shown in the figure
below). The numeric keyboard which supports the Chinese characters, English
uppercase/lowercase characters, numbers and common symbols (including
decimal point, #, space and +/-) are mainly used to edit file or folder name (refer
to “To Input Filename”) and set parameters (refer to “Parameter Setting”).

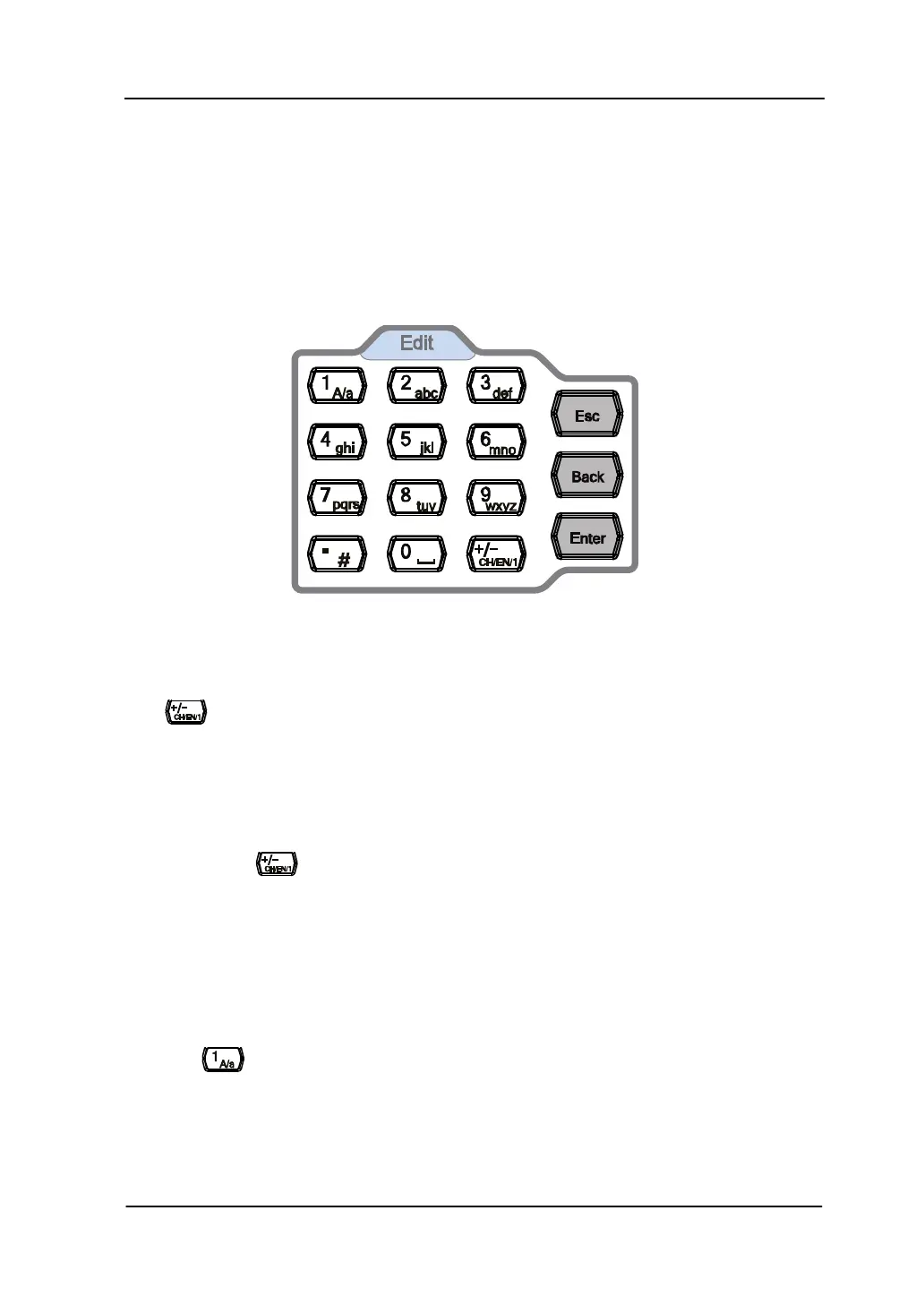

Figure 1-8 Numeric Keyboard
The numeric keyboard consists of the following parts:
1.
 The input mode is fixed at number input during parameter setting. During
parameter setting, press this key to input the symbol (“+” or “-”) of the
figure. When the key is pressed for the first time, the parameter symbol
is “-” and “+” when the key is pressed again.
 Press
to switch among Chinese, English and number input during
file or folder name editing.
2. Number/Letter
 Multiplexing keys for numbers and letters. They are used to directly input
the desired number or letter.

: press this key to input 1 in number input and switch between
uppercase and lowercase letter in English input. This key is invalid in
Chinese input.

Rigol DSA815 Specifications

General

Frequency Range	9 kHz to 1.5 GHz
Input Impedance	50 Ω
Input Connector	N-type female
Weight	4.25 kg
Power Supply	100-240 V AC, 50/60 Hz
Phase Noise	-80 dBc/Hz @ 10 kHz offset
Amplitude Accuracy	±1.5 dB
Display	8 inch LCD (800x480 pixels)
Video Bandwidth (VBW)	1 Hz to 3 MHz
Maximum Input Level	+20 dBm
Interfaces	USB, LAN
Resolution Bandwidth (RBW)	100 Hz to 1 MHz
Dimensions	361 mm x 178 mm x 128 mm
