Chapter 1 Quick Start RIGOL
User’s Guide for DSA800/E Series
To Replace the Fuse
Please replace the old fuse with specified fuse according to the following steps
when needed:
1． Turn off the instrument, cut off the power and remove the power cord.
2． Use a small straight screw driver to prize out the fuse seat.
3． Take out the fuse seat.
4． Replace the old fuse with a specified fuse.
5． Install the fuse seat.

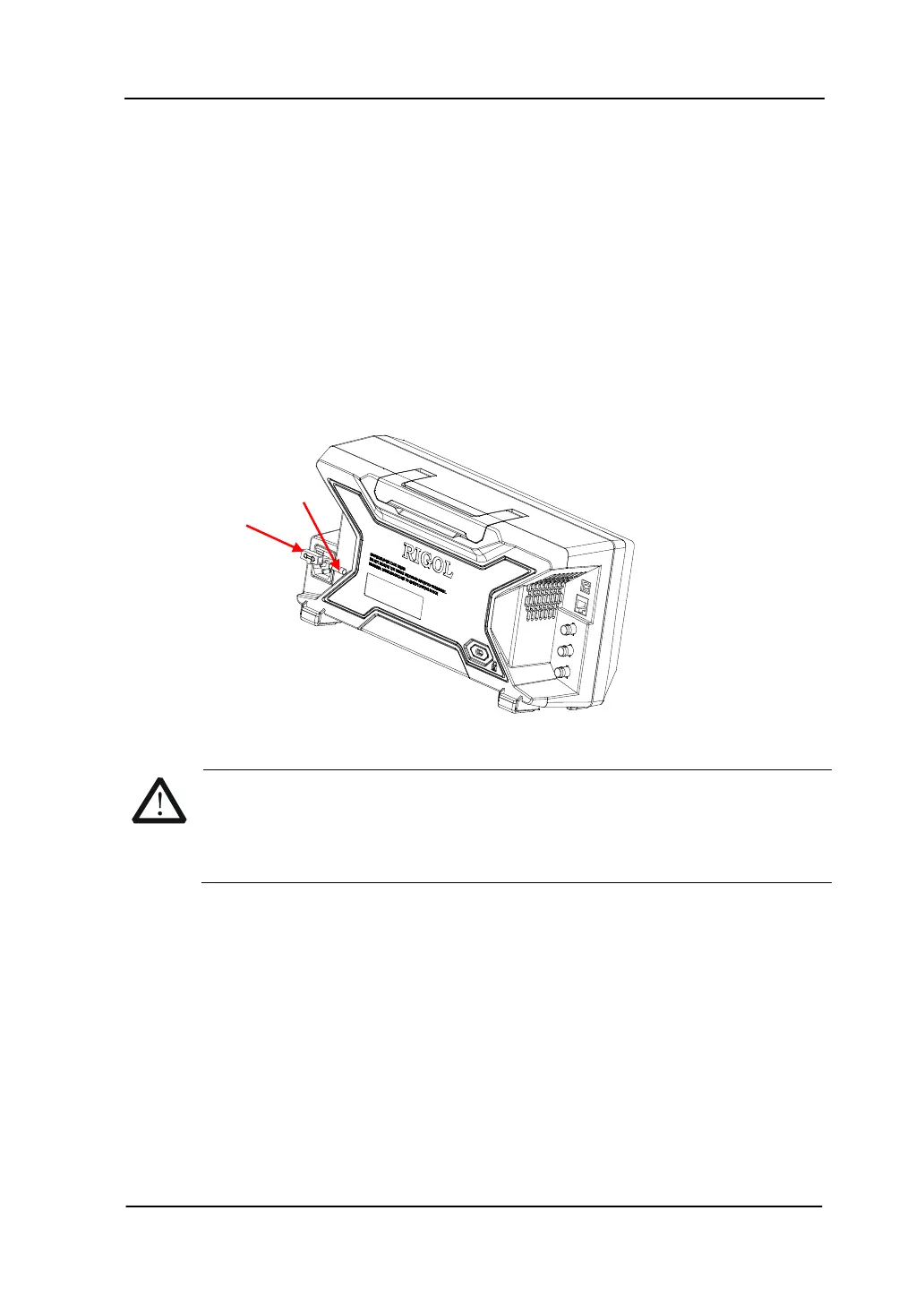

Figure 1-16 To Replace the Fuse
WARNING
Please ensure that the instrument has been turned off, the power source
has been cut off and the fuse to be used is a specified one before
replacing the fuse in order to avoid electric shock.
Fuse Seat
Fuse
