Rimoldi 263 - Page 3

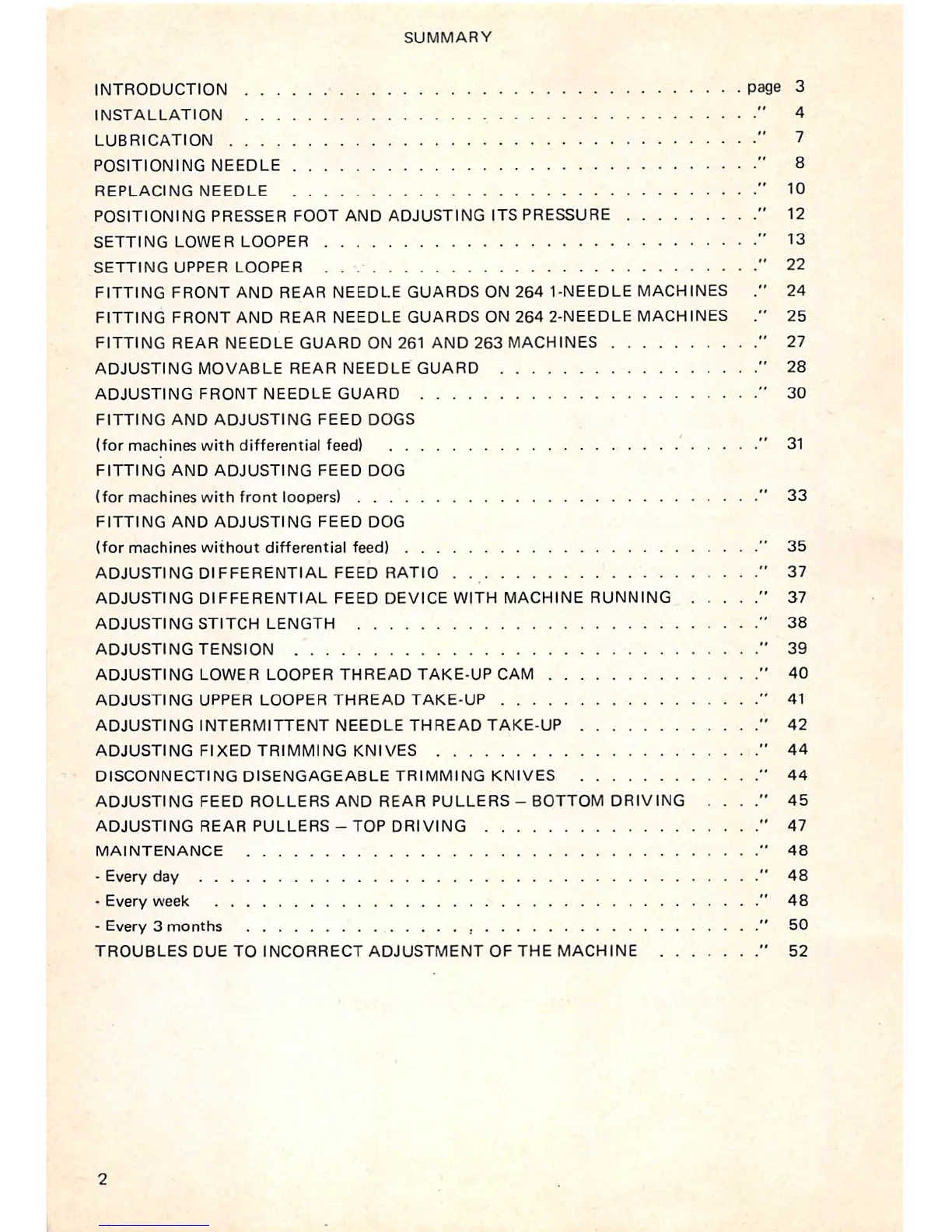

SUMMARY
INTRODUCTION pafle 3
INSTALLATION " 4
LUBRICATION " ^
POSITIONING NEEDLE " 8
REPLACING NEEDLE " 10
POSITIONING PRESSER FOOT AND ADJUSTING ITS PRESSURE " 12
SETTING LOWER LOOPER " 13
SETTING UPPER LOOPER " 22
FITTING FRONT AND REAR NEEDLE GUARDS ON 264 1-NEEDLE MACHINES 24
FITTING FRONT AND REAR NEEDLE GUARDS ON 264 2-NEEDLE MACHINES 25
FITTING REAR NEEDLE GUARD ON 261 AND 263 MACHINES " 27
ADJUSTING MOVABLE REAR NEEDLE GUARD " 28
ADJUSTING FRONT NEEDLE GUARD " 30
FITTING AND ADJUSTING FEED DOGS
(for machines with differential feed) " 31
FITTING AND ADJUSTING FEED DOG
(for machines with front loopers) " 33
FITTING AND ADJUSTING FEED DOG
(for machines without differential feed) " 35
ADJUSTING DIFFERENTIAL FEED RATIO . " 37
ADJUSTING DIFFERENTIAL FEED DEVICE WITH MACHINE RUNNING " 37
ADJUSTING STITCH LENGTH " 38
ADJUSTING TENSION " 39
ADJUSTING LOWER LOOPER THREAD TAKE-UP CAM " 40
ADJUSTING UPPER LOOPER THREAD TAKE-UP " 41
ADJUSTING INTERMITTENT NEEDLE THREAD TAKE-UP " 42
ADJUSTING FIXED TRIMMING KNIVES " 44
DISCONNECTING DISENGAGEABLE TRIMMING KNIVES " 44
ADJUSTING FEED ROLLERS AND REAR PULLERS-BOTTOM DRIVING . . . 45
ADJUSTING REAR PULLERS - TOP DRIVING " 47
MAINTENANCE " 48
- Every day '* 48
- Every week " 48
- Every 3 months " 50
TROUBLES DUE TO INCORRECT ADJUSTMENT OF THE MACHINE " 52
