Rinnai Linear Series

Linear installation guide 13563-B 02-19 | 13
520 Min 730 Min
1250 min.
1020 Min
~800
640 360
300 **
566 *
257 ±5 *
816 *
Recommended that lintel
is left until fire is installed
so minimum clearances
can be maintained
403
300
770
833
80**
** Maintain 25 mm clearance
to combustibles for first 300mm
of flue
39 Assumes
10 mm wallboard
* Wallboard cutout
403 mm assumes a 10 mm wallboard
on both sides of a double-sided unit.
415 mm is the min. for a single-sided
unit to maintain 50 mm clearance to
the back of the fire.
Glass centreline
• All dimensions are assuming a 10 mm wallboard
• Studs and joist are required directly below the support feet of the re
• Framing shown is 90 x 45 mm
• Fire platform shown is 18 mm plywood
• Allow room underneath the appliance for the gas supply to enter the re cavity (min. 100 mm)

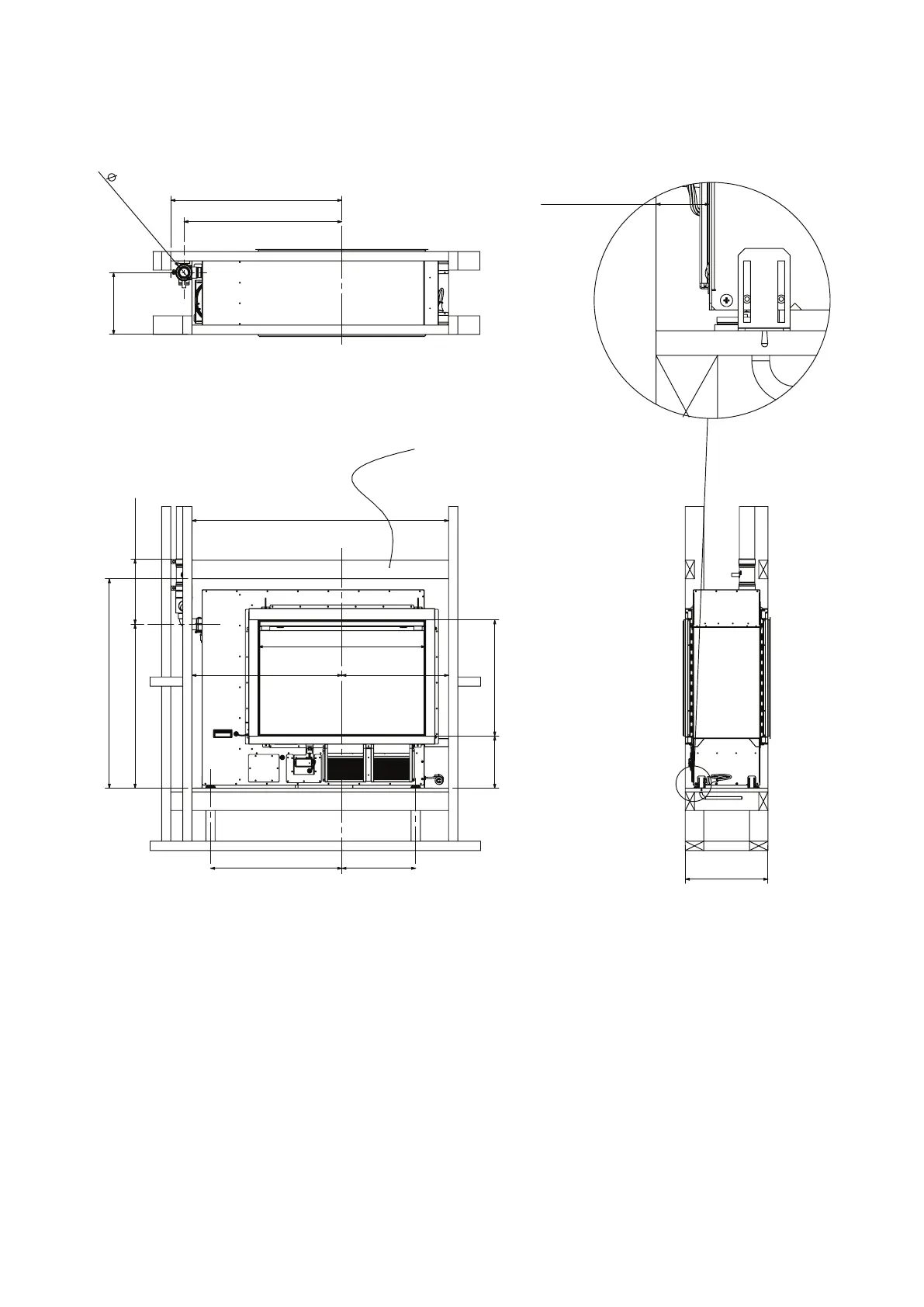

Linear 800 framing dimensions
