Rinnai Linear Series Installation Guide

22 | Linear installation guide 13563-B 02-19

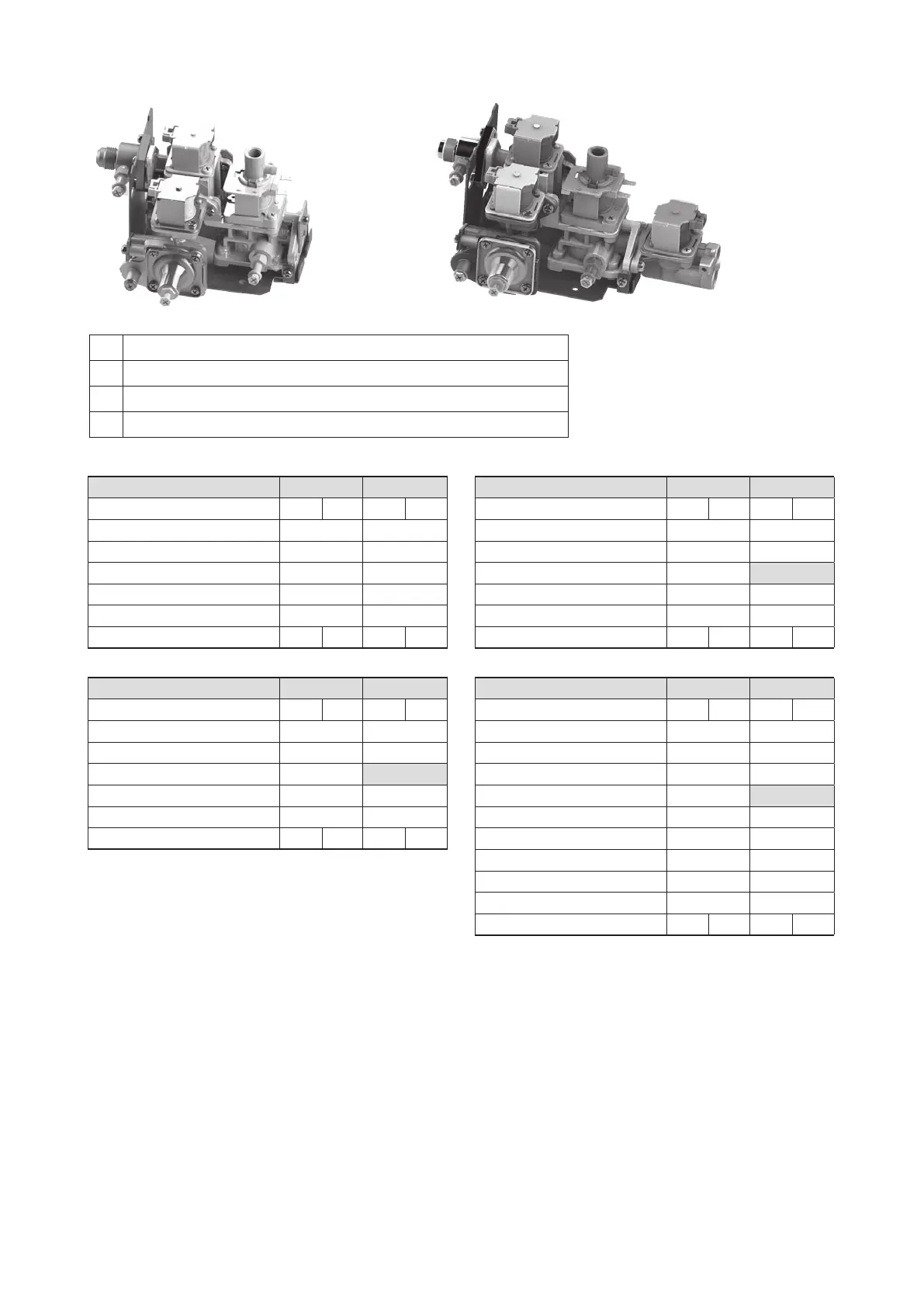

Linear 800 and 1000 gas control Linear 1500 gas control (with the extra solenoid)
1 Inlet pressure test point screw
2 Pilot pressure test point screw
3 Pilot pressure adjustment screw (manometer position)
4 Main burner pressure test point screw
1
2
3
4
1
2
3
4
RHFE800SF RHFE800DF NG ULPG
Gas rate Hi SF/LF MJ/hr 35 32 31 28
Gas rate Lo MJ/hr 15 14
LH RH injector Ø mm 2.0 1.20
Aeration sleeve LH RH mm 4.5 x 1 9 x 2
Pilot kPa 0.98 2.0
PL kPa 0.20 0.35
PH SF/LF kPa 0.95 0.79 1.95 1.65
RHFE1000S RHFE1000D NG ULPG
Gas rate Hi SF/LF MJ/hr 33 30 32 29
Gas rate Lo MJ/hr 15 14
Main injector Ø mm 2.8 1.70
Aeration sleeve centre mm 22 N/A
Pilot kPa 0.98 2.0
PL kPa 0.19 0.40
PH SF/LF kPa 0.80 0.65 1.85 1.57
RHFE800S RHFE800D NG ULPG
Gas rate Hi SF/LF MJ/hr 35 32 31 28
Gas rate Lo MJ/hr 15 15
Main injector Ø mm 2.8 1.70
Aeration sleeve centre mm 21.5 N/A
Pilot kPa 0.98 2.0
PL kPa 0.19 0.40
PH SF/LF kPa 0.95 0.78 1.70 1.44
RHFE1500S RHFE1500D NG ULPG
Gas rate Hi SF/LF MJ/hr 40 37 37 35
Gas rate Lo MJ/hr 14 14
Main injector Ø mm 2.3 1.4
LH RH injector Ø mm 1.6 0.95
Aeration sleeve centre mm 22 N/A
Aeration sleeve LH RH mm 21 17
Pilot kPa 0.98 2.0
PL kPa 0.3 0.74
PF kPa 0.87 1.90
PA kPa 0.59 0.95
PH SF/LF kPa 0.80 0.67 1.70 1.38
