Linear installation guide 13563-B 02-19 | 29

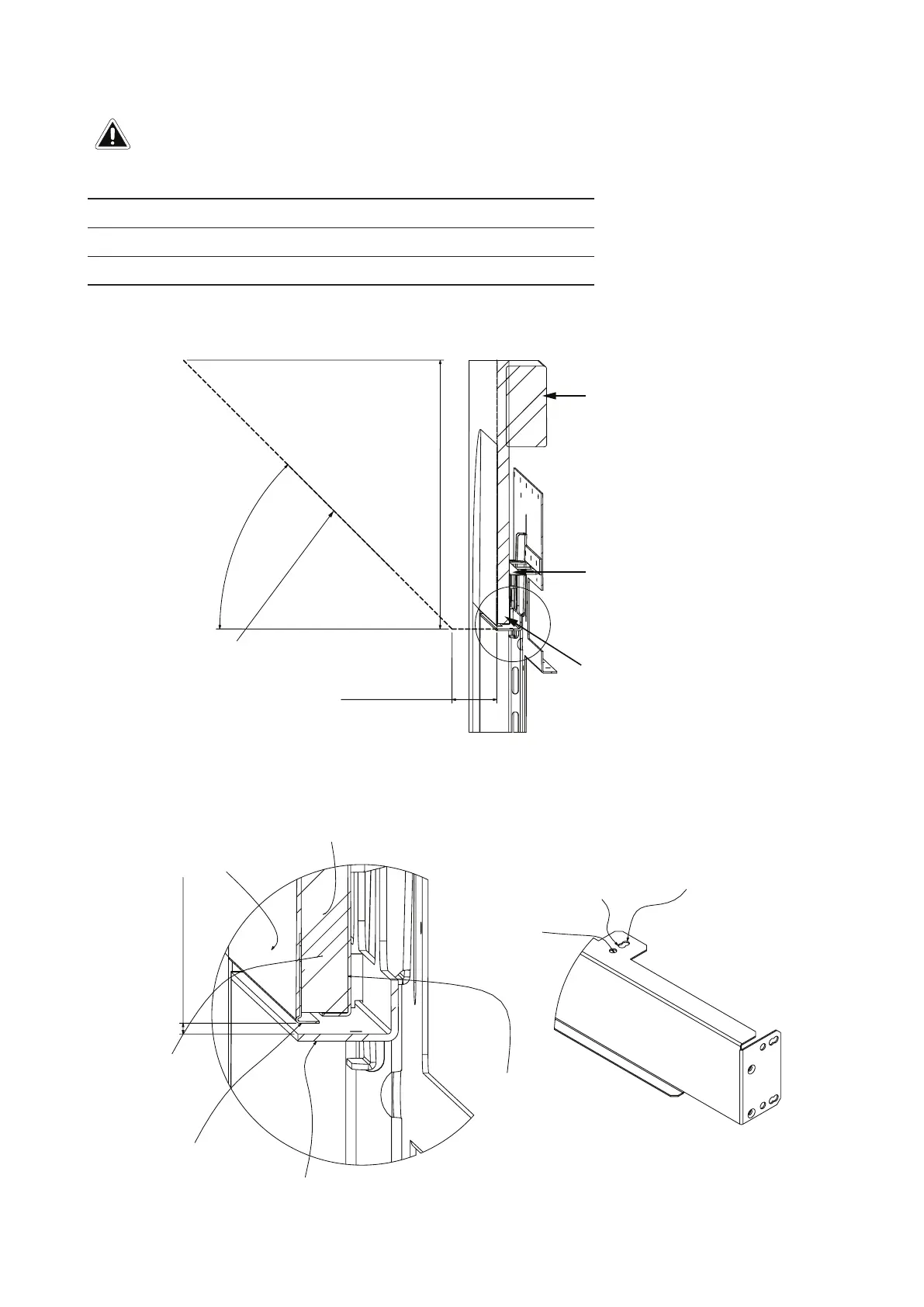

Plasterboard wall with plastered nish
50 mm
45°
A
No combustible materials within
50 mm off the top of the fire
Wallboard support MUST be used
for wallboard. Support is designed
for wall thickness 10-13 mm.
Linings thicker than 13 mm must be
rated non-combustible.
Wallboard cutout
Wall lining in front of the fire MUST NOT protrude
beyond this line and must be non-combustible,
including vertical wall lining.
300 mm
A (1 : 1)
Lips
plaster finish
plaster board
Wallboard support
panel
Wallboard cutout
Wallboard edge finished (not a
Rinnai supplied part)
Min. 3 mm air gap MUST BE
maintained around the fire
20 mm setting
for the
combustible
options
13 mm board
10 mm board
Wallboard support
panel
Avoid getting plaster in the air gap around the re lips.
Wallboard cutout sizes for this installation
800 1000 1500
Minimum 816 x 566 mm 1016 x 341 mm 1516 x 341 mm
Maximum 830 x 580 mm 1030 x 355 mm 1530 x 355 mm
IMPORTANT
