Linear installation guide 13563-B 02-19 | 45

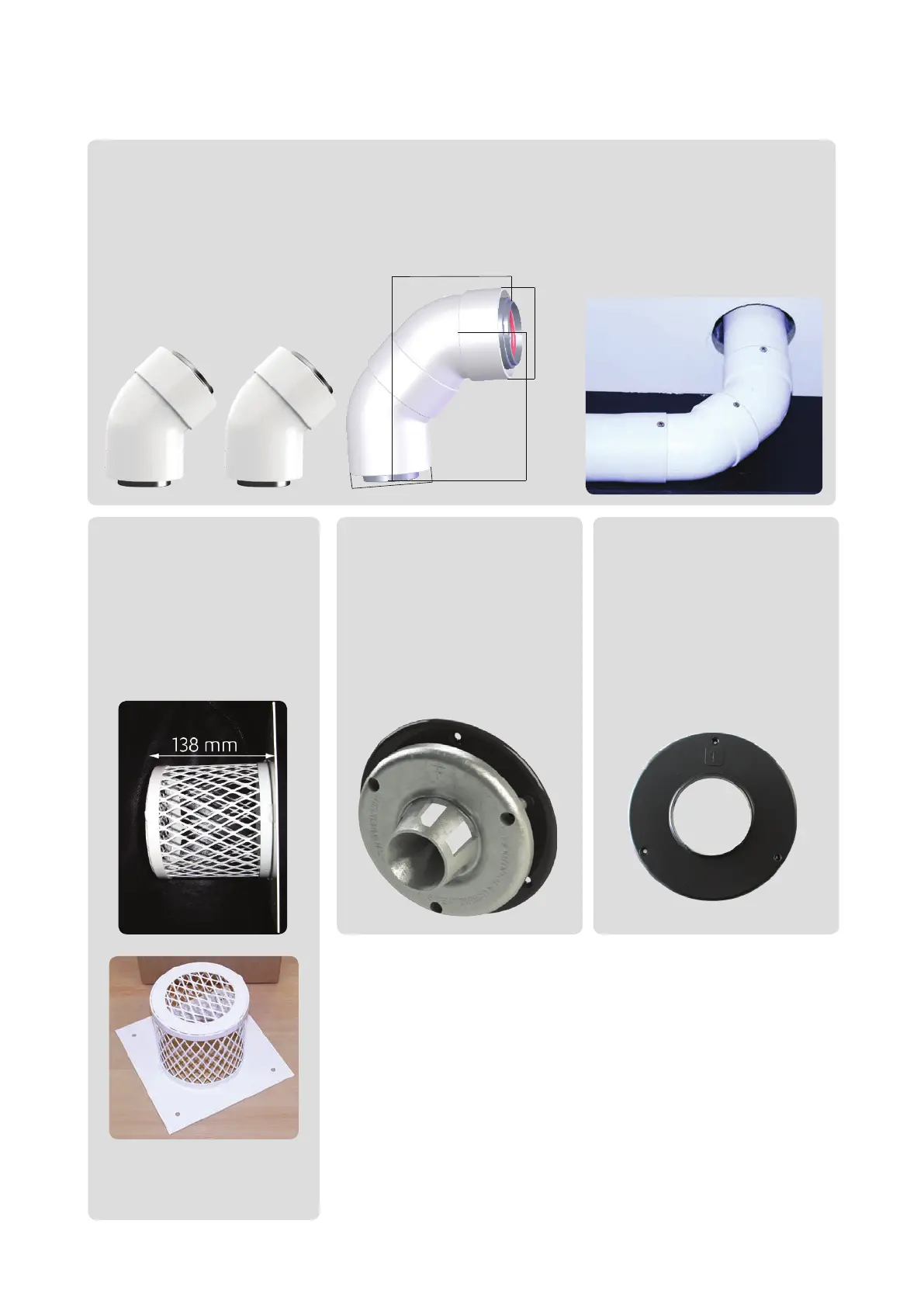

45° ue bends (x2)
Code: ESBEND
Two 45° bends used to facilitate between horizontal, vertical, and downwards ueing. Two spacers are included.
Can be used separately, or together as a 90° bend.
Wall plate
Code: ESPLATE
Used if an extra wall cover
is required to tidy any installation
through the wall, ceiling, or oor.
Outer diameter 170 mm.
Photo of 45 ° bends joined to 900 mm ue pipes,
and dimensions diagram for two 45 ° bends joined
Ø 75 mm
120 mm
Ø 80 mm
120 mm
Steel ue guard (warm white)
Code: R1370
Protection against hot ue gases
when the termination is low to the
ground. Colour - warm white.
• 220 x 220 mm
• Ø 146 mm
Wall terminal kit
Code: ESWTERM
Used to terminate the ESPIPE900
in horizontal ue installations when
used in conjunction with EVOKIT03.
Contains:
• External wall plate (black PVC)
• Flue terminal (aluminium)
To Next Page
