Rion VM-83 User Manual

16
Preparations
P R E A M P 2
S E R V O ( L S - 1 0 C )
S E R I A L
P R E A M P 1
P R E A M P 1
P I C K U P
L O C K
I N P U T
P i c k u p
C a b l e ( V P - 5 1 s e r i e s )
V M - 8 3 r e a r p a n e l
A c c e l e r o m e t e r
P R E A M P 2
S E R V O ( L S - 1 0 C )
S E R I A L
P R E A M P 1
P I C K U P
I N P U T
L S - 1 0 C
o r
L S - 2 0 C
C a b l e ( E C - 4 0 s e r i e s )
V M - 8 3 r e a r p a n e l
EC-02 series cables are available in six different lengths, as listed below. Choose
the cable that is most suitable for your application.
EC-02: 3 m EC-02A: 5 m
EC-02B: 10 m EC-02C: 30 m (with reel)
EC-02D: 50 m (with reel) EC-02E: 100 m (with reel)

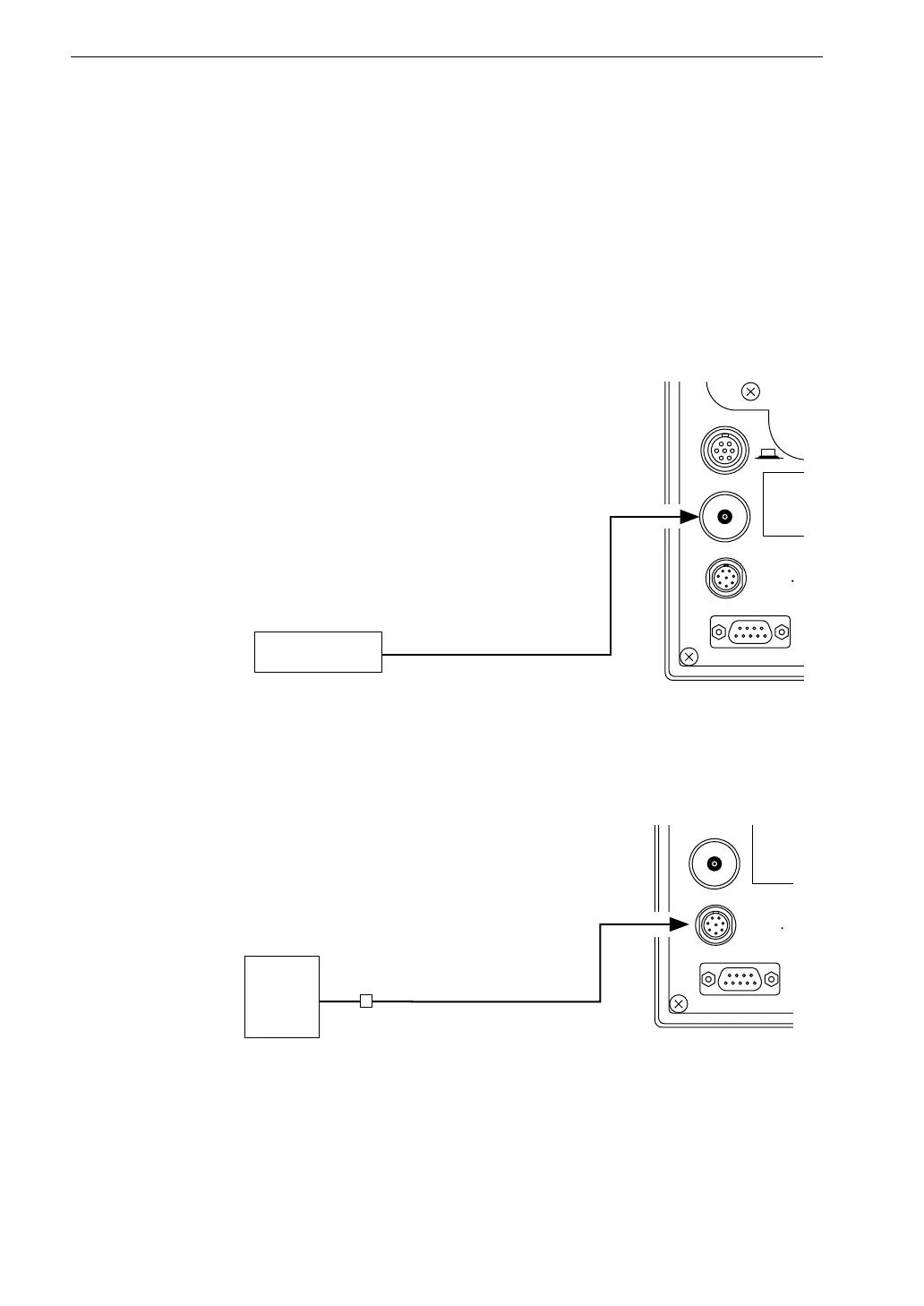

Connection of an accelerometer with built-in preamplifier
When using an accelerometer with built-in pream-
plifier (PV-41, PV-42), use the cable supplied with
the accelerometer (VP-51 series) to connect the ac-
celerometer to the PREAMP 2 input connector on
the VM-83.
Servo accelerometer LS-10C or LS-20C
Connecting the servo accelerometer LS-10C or LS-20C
Use a cable of the EC-40 series to connect the accel-
erometer to the SERVO (LS-10C or LS-20C) input
connector on the VM-83.
EC-40A: 5 m EC-40B: 10 m
EC-40C: 30 m (with reel) EC-40D: 50 m (with reel)
