23
Measurement
High-Pass Filter Setting
Setting procedure

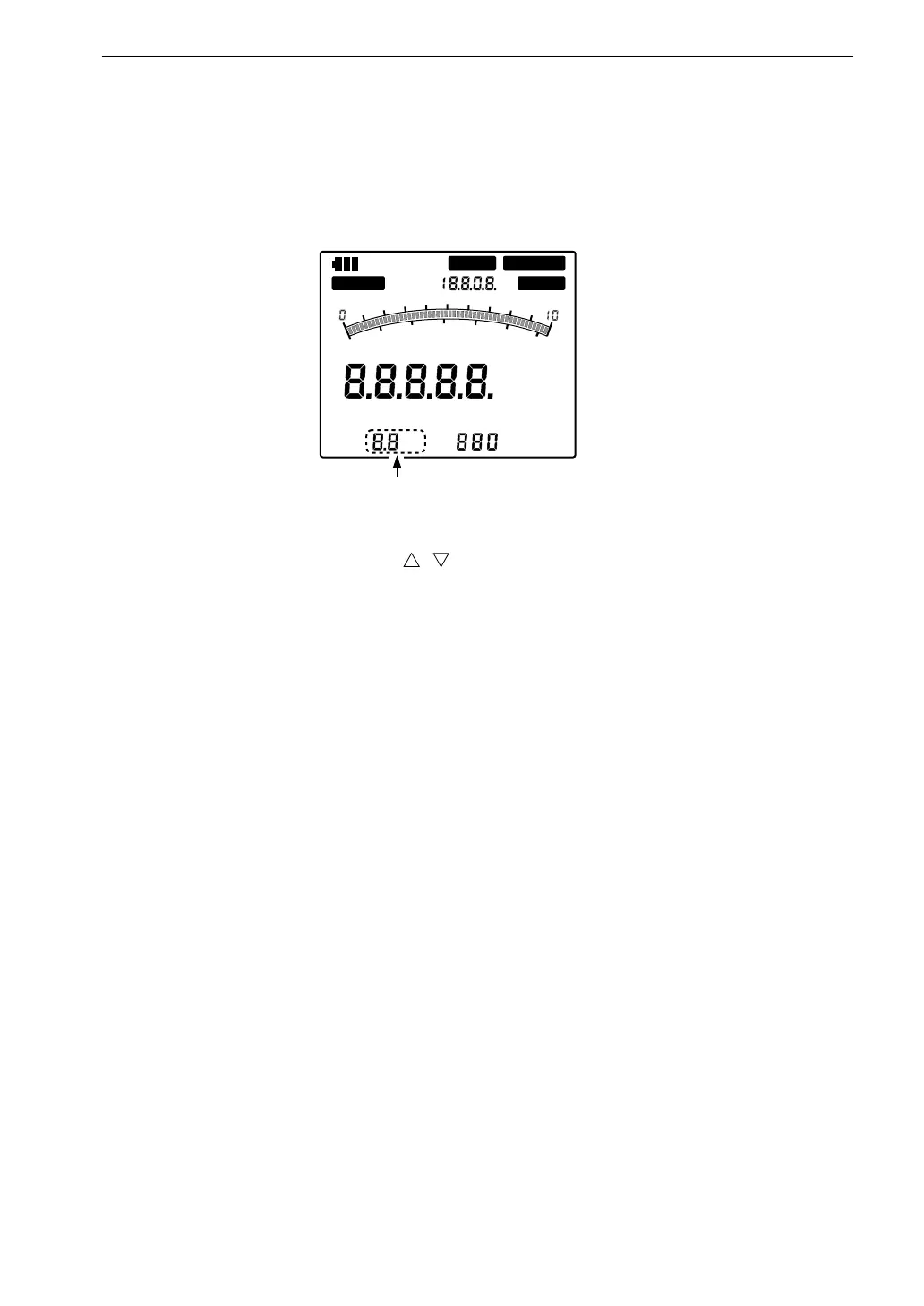

1. Press the HPF key. (The indicator above the key lights up.)
2. Use the setting keys ( , ) to select the filter setting. The available set-
tings are listed below.
Piezoelectric accelerometer
1 Hz, 3 Hz, 10 Hz, 20 Hz, 50 Hz, -- (OFF; ACC only)
Servo accelerometer
0.1 Hz, 0.3 Hz, 1 Hz
For more information on the characteristics of the high-pass filter, please
refer to the Technical Information.
