Measurement
Measurement Mode Setting
Select the measurement mode from ACC (acceleration), VEL (velocity), or DISP
(displacement).
Setting procedure
1. Press the ACC/VEL/DISP key. (The indicator above the key lights
up.)
2. Use the setting keys ( , ) to select from ACC → VEL → DISP.
ACC (acceleration) : m/s
2
, mm/s
2
VEL (velocity) : mm/s
DISP (displacement) : mm
Note
The unit for acceleration (ACC) measurement de-
pends on the setting of the INPUT SELECT switch.
ACCELEROMETER, PREAMP 1, PREAMP 2
: m/s
2
SERVO , SERVO : mm/s
2
C O M P R E M O T E
O V E R
U N D E R
C A L
P E A K
M A X H O L D
O V E R
R M S
E Q
P E A K
E Q
P - P
H z
k H z
p C /
m m / s
2
2
4
6
8
1
2
3
0

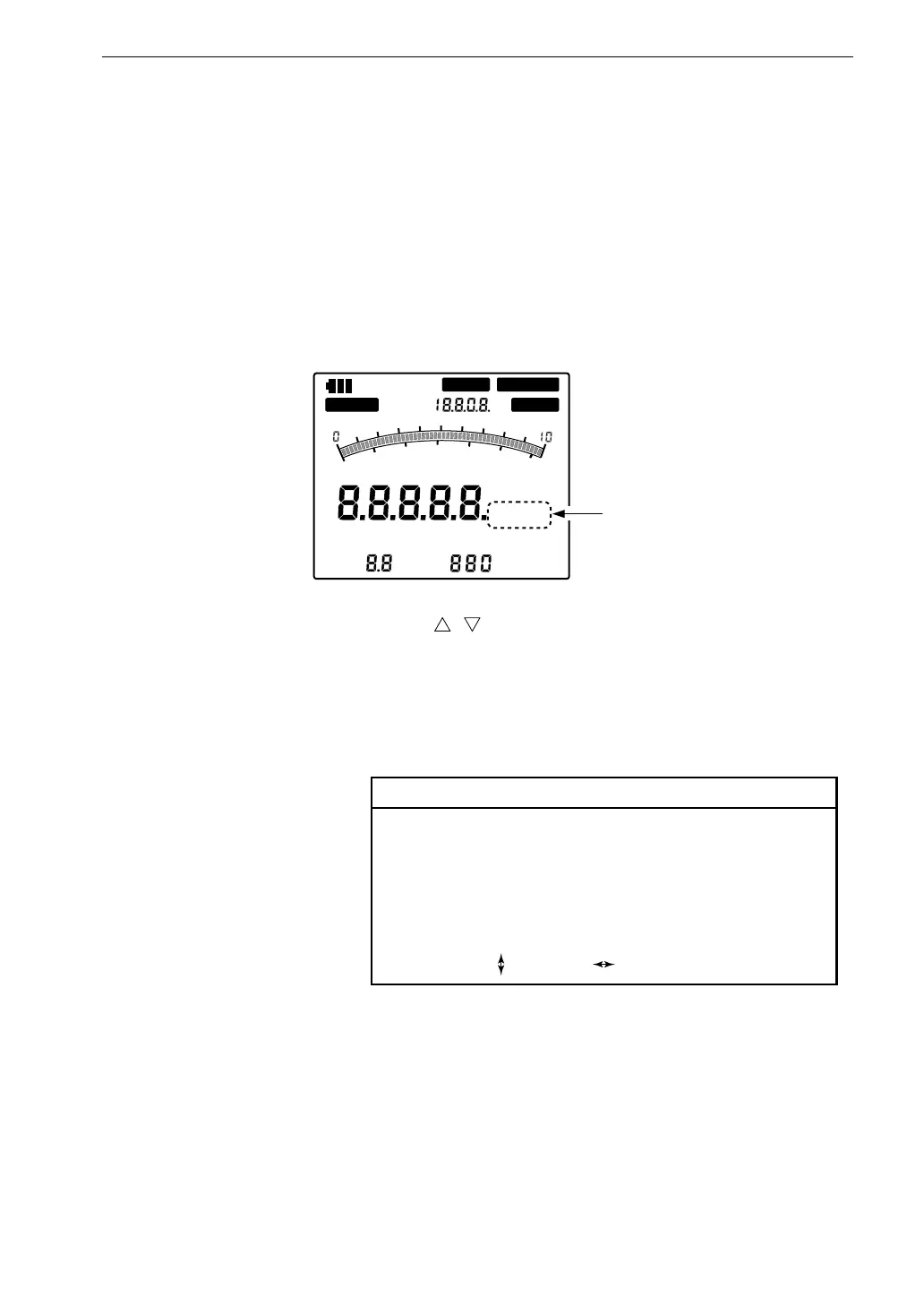

M e a s u r e m e n t m o d e u n i t
