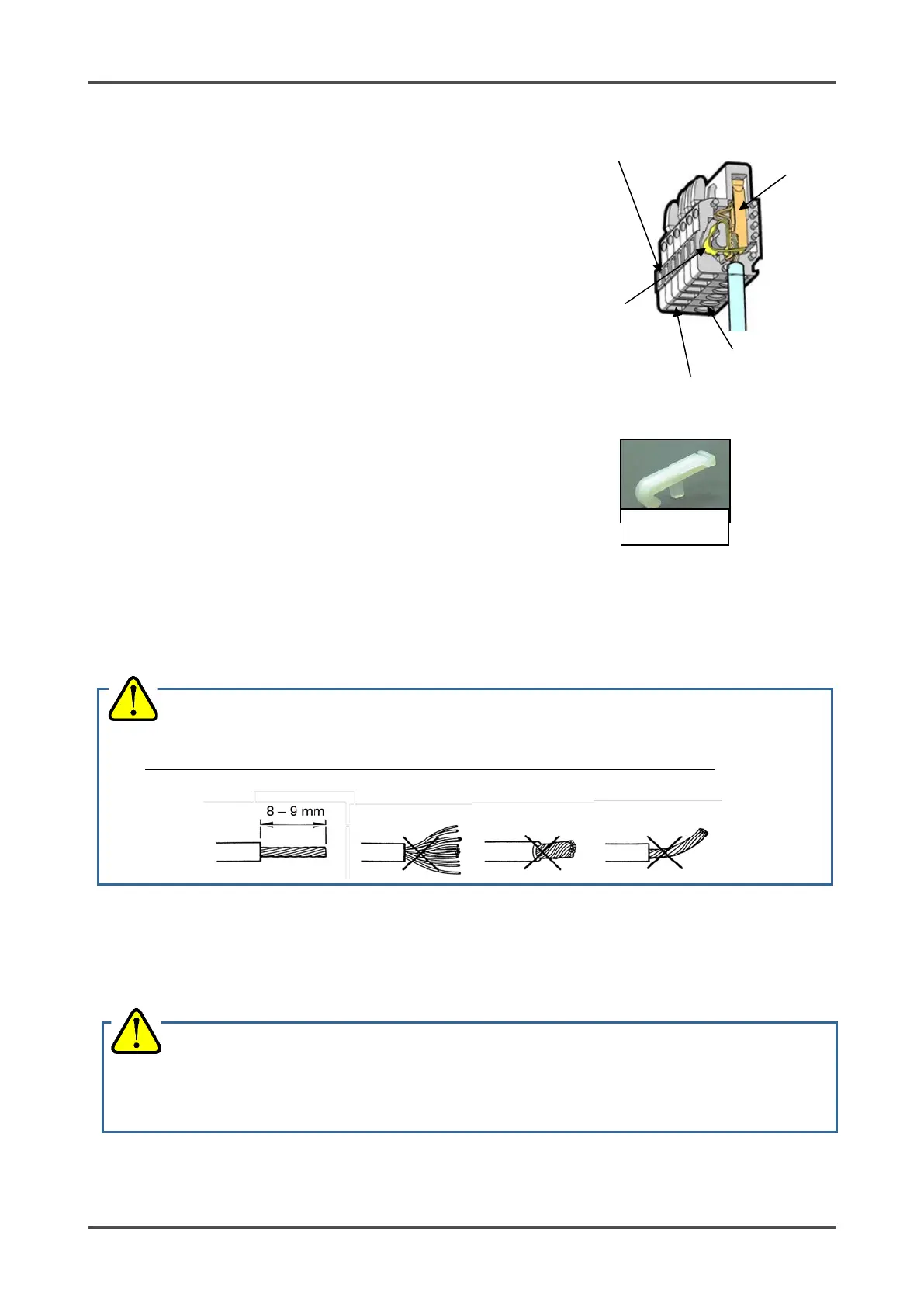

- 23 - GD-70D

Specifications of terminal plate

• Rated voltage: 250 VDC

• Rated current: 16 A

Connection conditions

• Cable: 0.08 - 2.5mm

• Bare wire length: 8 - 9 mm

• Connecting tool: Dedicated handling lever (accessory)

Compatible bar terminal

For a bar terminal, the following items are available.

• Bar terminal (ferrule): Model 216 Series (manufactured by WAGO)

• Crimping tool: Model VarioCrimp 4 (206-204) (manufactured by WAGO)

Dedicated

handling lever

CAUTION

• A bar terminal of the specified model must be used. Using other bar terminals invalidates the

guarantee of the performance.

Wiring hole

Driver slot

Conductive

part

Cage

clamp/spring

Top handling slot

CAUTION

• The specified bare wire length must be observed when the wire insulation is peeled off.

• Be careful not to separate the wire strands.
