Control Buttons • 15
Download Button
If you are in another program window, clicking the Download
button opens the Download window (see Figure 4). The
Download window has several download commands that allow
you to perform various data retrieval functions with an
instrument that is connected to the software. Data can be
retrieved from the instrument, data can be cleared from the
instrument, and the instrument can be turned off. See
“Downloading Data from the GX-2003” on page 23 for a
complete description of downloading data from a GX-2003.
Instrument Information Button
Clicking the Instrument Information button opens the
Instrument Information Window.
The Instrument Information Window displays various instrument
parameters for an instrument that has been downloaded using
the Complete Download or Instrument Information download
commands and is currently connected to the software. If an
instrument is turned off after being connected to the software,
then the software will lose the connection with the instrument

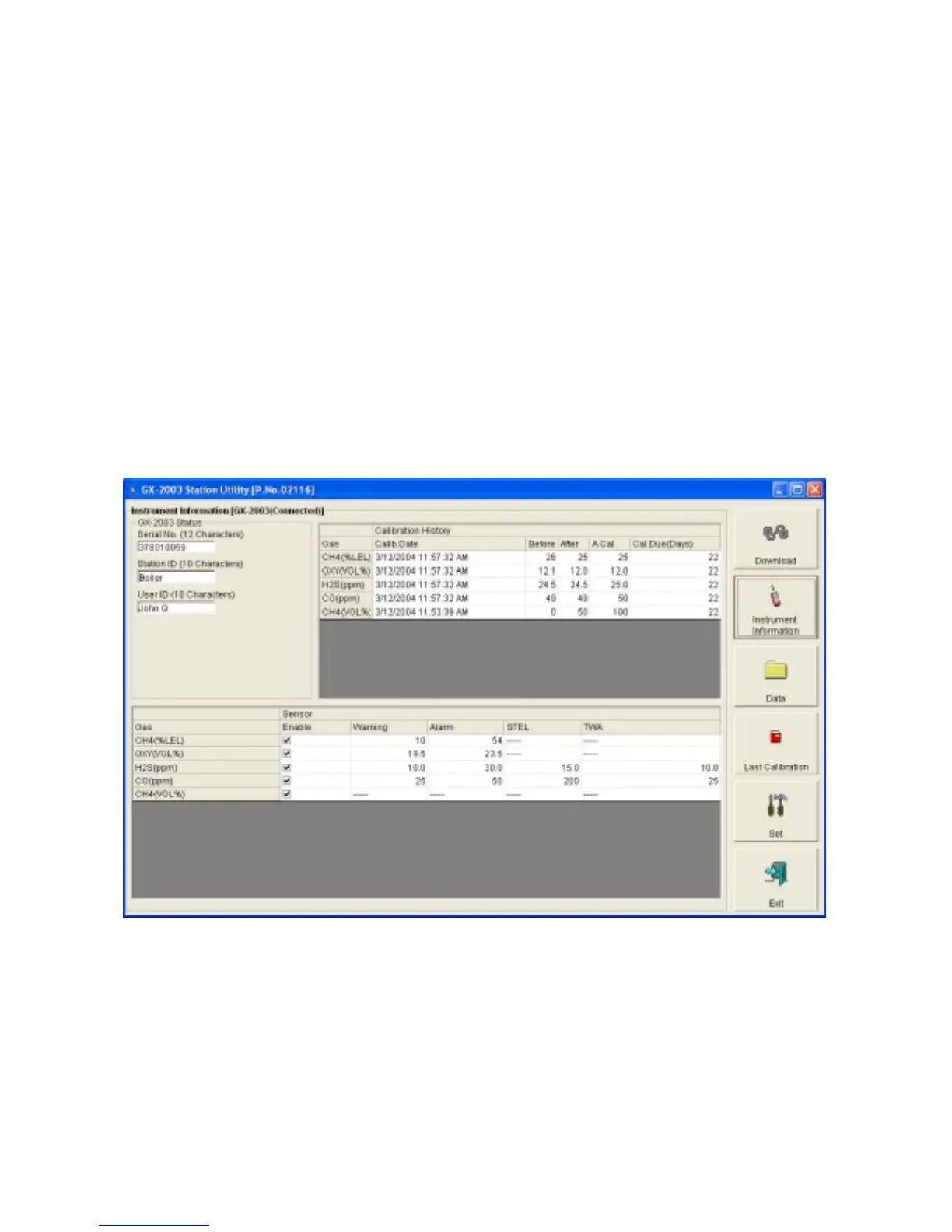

Figure 6: Instrument Information Window
