GX-2003 Operator’s Manual Cotton Filter, and Wire Mesh Disk • 83

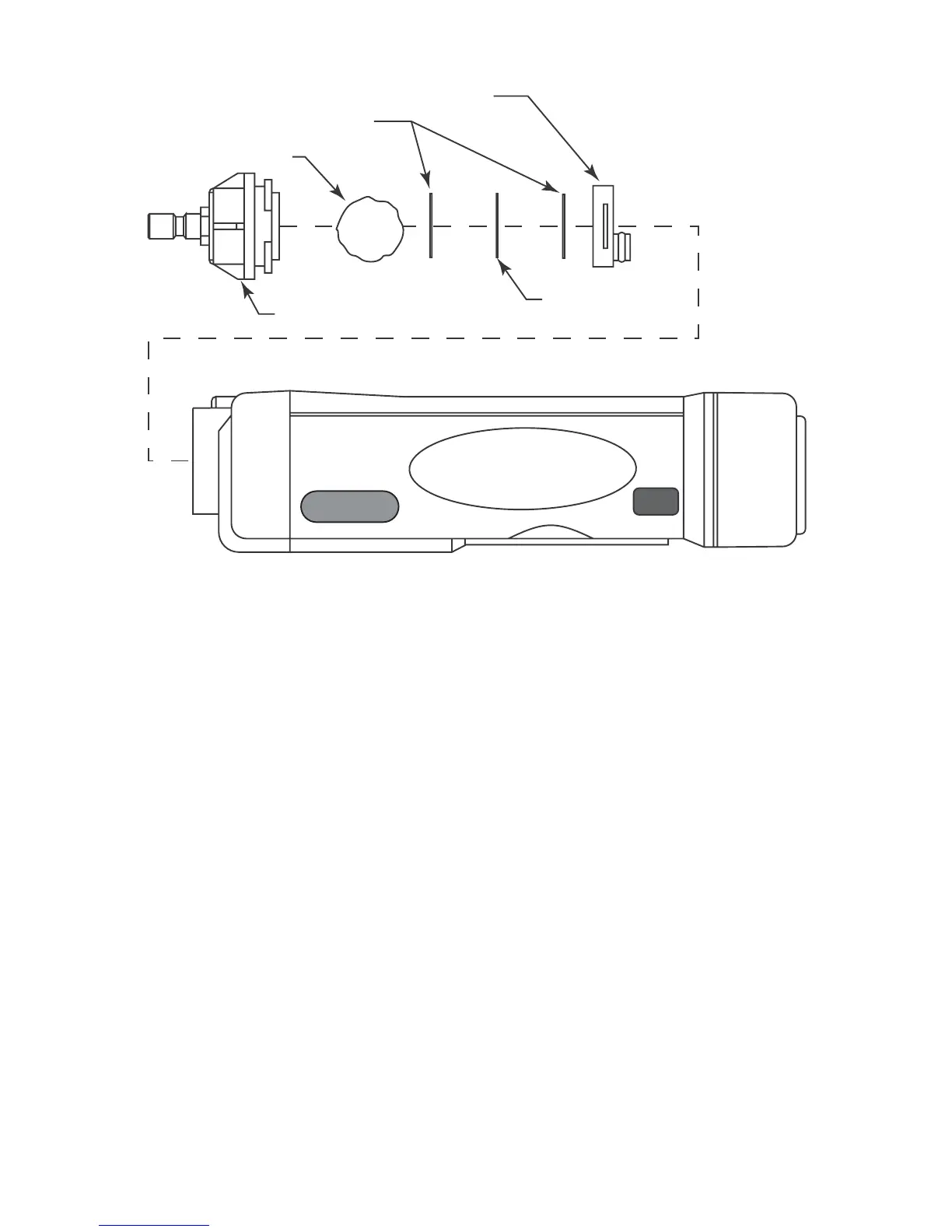

Figure 11: Changing the Filters& Wire Mesh Disk
6. Remove the old hydrophobic filters and/or wire mesh disk from
the gasket. A hydrophobic filter is located on either side of the
wire mesh disk.
7. Install the new hydrophobic filters and/or wire mesh disk making
sure a hydrophobic filter is located on each side of the wire mesh
disk.
8. Reinstall the gasket with the parts into the case.
9. Reinstall the filter holder with the cotton dust filter. Align the two
wide tabs on the bottom of the filter holder with the two wide slots
in the case where the filter holder fits. Push the filter holder into
the case and turn it about 1/8 turn clockwise until it snaps into
place.
Filter Holder
otton Dust Filter
Hydrophobic Disk Filter
Rubber Gasket
Wire Mesh Disk
