Installation RMC / RZ / RM / RL
10 © robatherm
Pos: 21.4 /Montage/Gerä teverbindung_ Gewindebuchsen @ 0\mod_1257 764027379_2008.doc @ 2083 @ 44

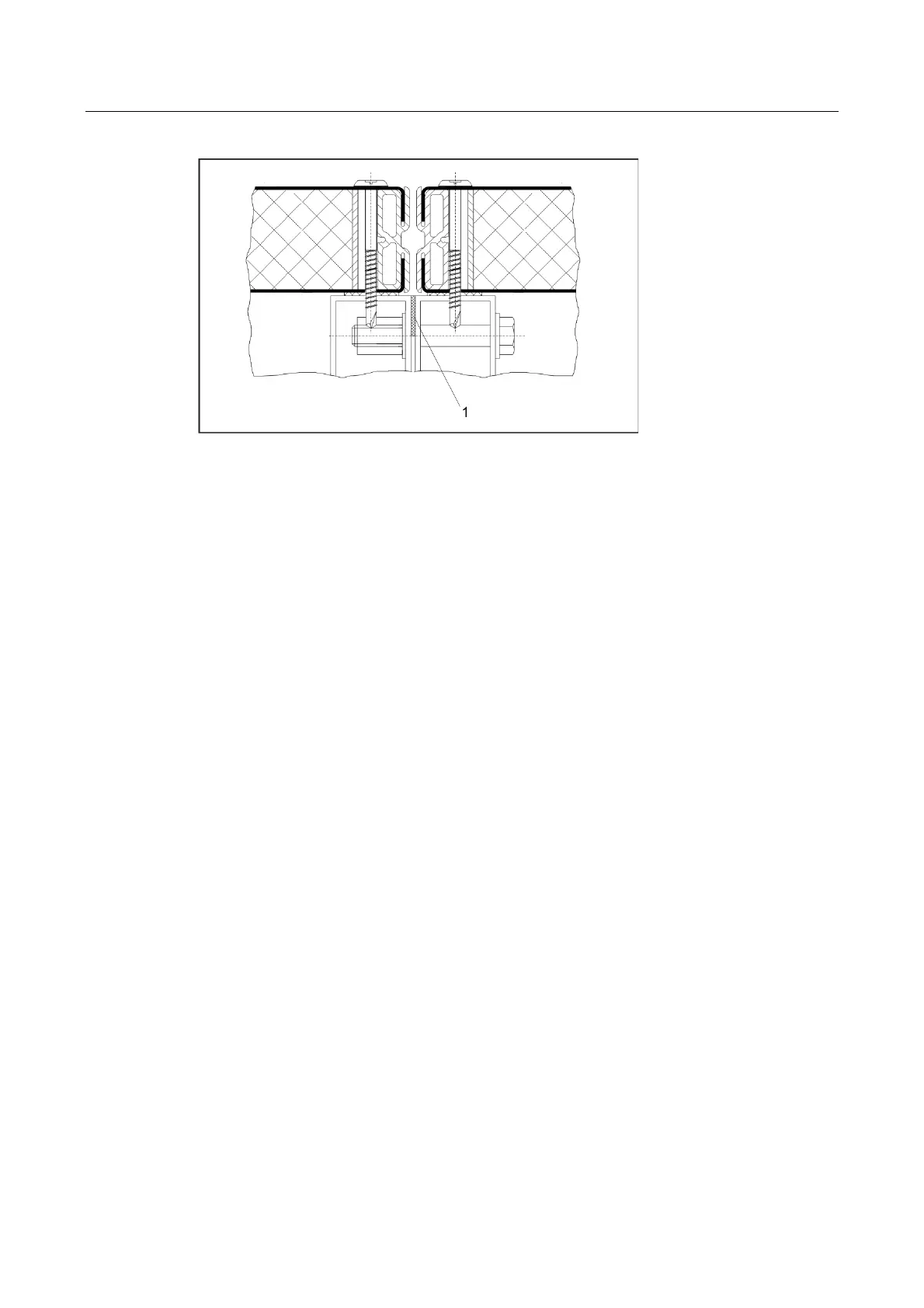

Bolt with Thread Bushes
1 – Self-adhesive sealing
In order to connect the unit parts, proceed as follows:
Stick self-adhesive sealing along the circumference of the section frame at each division
area of a unit
Note
The sealing must be stuck between the covering panel and the row of holes.
Cut out holes or threaded bushes in the sealing.
If necessary remove marked covering panels.
If necessary press unit parts together with screw clamps.
Connect components.
Refit covering panels which have been removed.
Pos: 22.1 /Montage/_A bdichtung Gerätetrenn stellen @ 0\mod_1257 768286834_2008.doc @ 2084 @ 3
Sealing of Unit Section Joints
Pos: 22.2 /Montage/Gerä te_Hygiene @ 0\mod_1257 768863473_2008.doc @ 2095 @
For residue free cleaning of the unit, all unit casing splits in the base area are to be sealed
with microbially inert PU jointing compound.
Pos: 23.1 /Montage/_G eräte in wetterfester Ausführung @ 0\mod_12577682 92864_2008.doc @ 2085 @ 3
Units in Weatherproof Version
Pos: 23.2 /Montage/Gerä te_Wetterfest @ 0\m od_1257768946442_20 08.doc @ 2096 @
All unit openings (e.g. duct discharge, electrical connecting box etc.) must be sealed or
equipped with weather protection in order to prevent water ingress into the unit. Do not
position the suction and discharge openings in the main wind direction. Plan the installation
height of the unit in accordance with max. snow level. Connected ducts must be drained
professionally on site.
