Connection Air Duct
Pos: 25.2 /Montage/A nschluss Luftkanal @ 0\m od_1257769336789_20 08.doc @ 2097 @
All air ducts shall be installed stress-free. Any flexible connectors must not be extended to
their max length. Adjust its installation length at 100 to 120 mm. Air ducts including
connection profiles and flexible connectors should be professionally insulated and protected
from the elements. Provide the same to the units’ frames.
Pos: 25.3 /Montage/A nschluss Luftkanal_El astischer Stutzen @ 0\ mod_1257769400823_20 08.doc @ 2098 @ 4

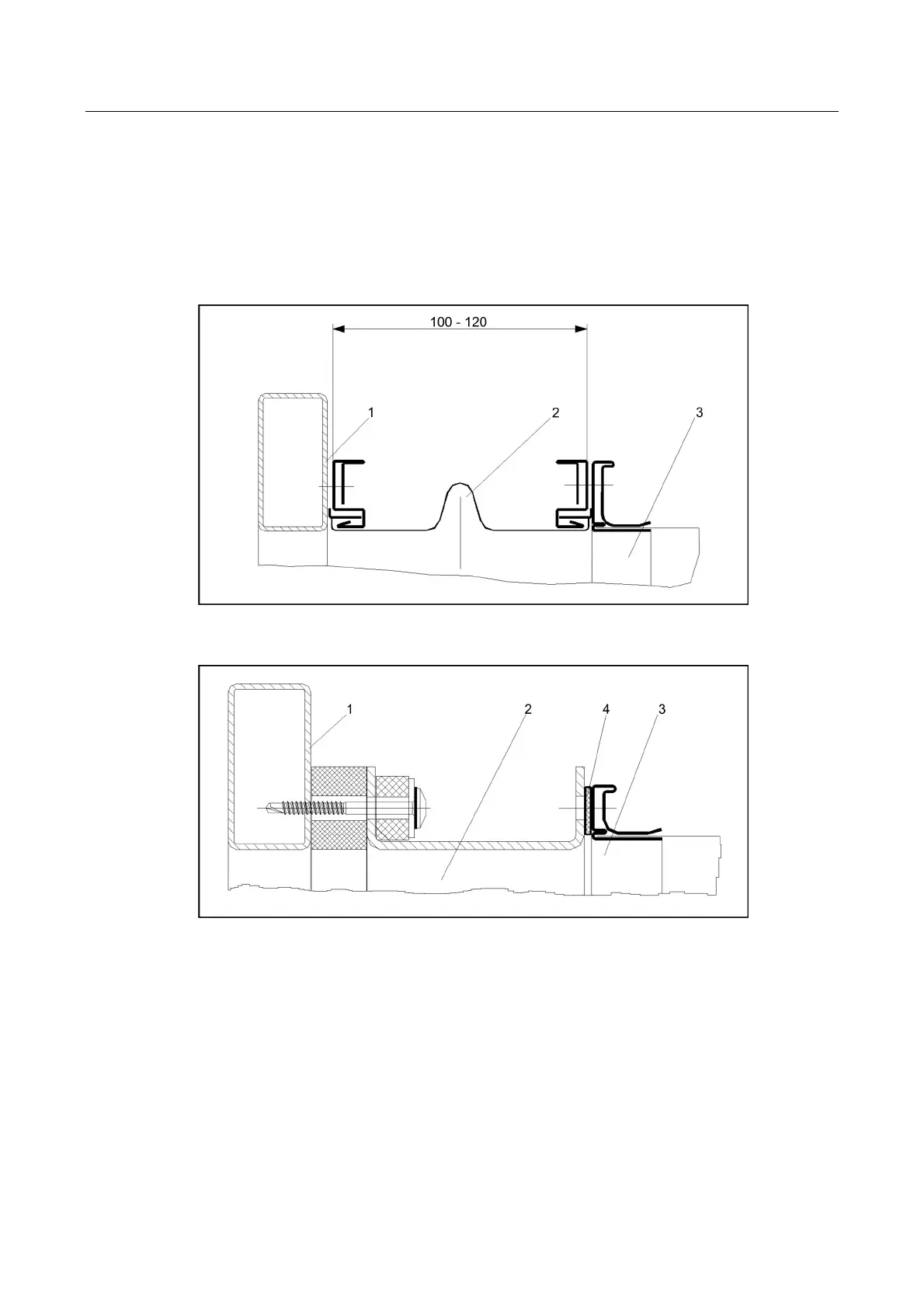

Flexible Connection
1 – Unit frame, 2 – Flexible connection, 3 – Building duct
Pos: 25.4 /Montage/A nschluss Luftkanal_En tkoppelter Prof ilrahmen @ 0\mod_12577694 02745_2008.doc @ 2099 @ 4
Decoupled Section Frame
1 – Unit frame, 2 – Decoupled section frame, 3 – Building duct, 4 – Sealing
