Description
Pos: 68.21 /Inbetri ebnahme und Wartung/Sprühbef euchter/Sprühbef euchter_Besc hreibung @ 0\mod_12584771248 48_2008.doc @ 2232 @ 44

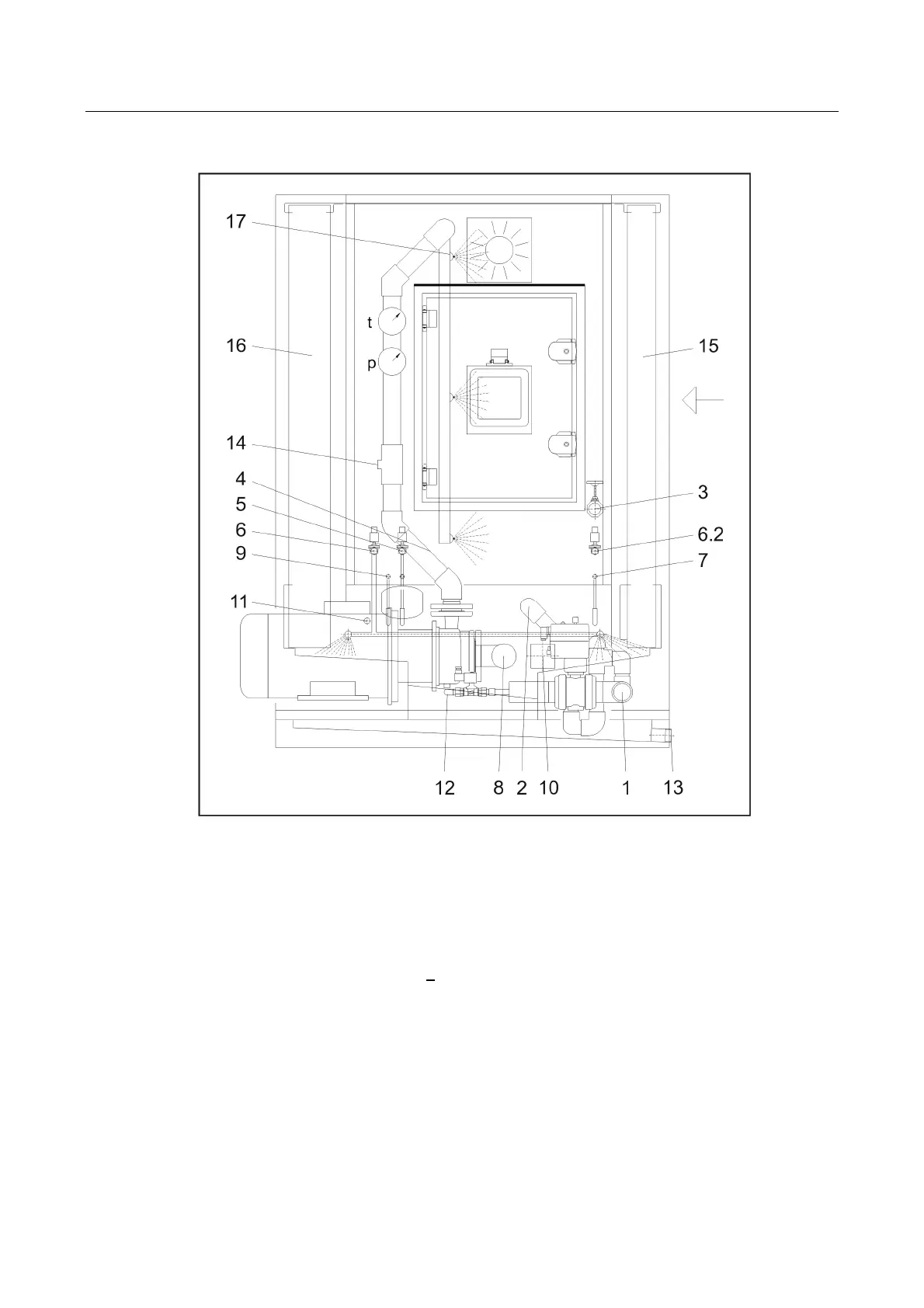

Equipment depending on scope of customer order:
1 Drainage 9 Level control
2 Overflow with external siphon 10 Immersion heater
3 Rapid filling 11 PTC Thermistor
4 Manual cleaning 12 Drain plug or valve
5 Floating valve 13 Drain plug of drip pan
6 Cleaning nozzle bank 14 Conductivity electrode
6.2 Cleaning nozzle bank 2 (>
T33) 15 Straightener
7 Pump dry-run protection 16 Drop eliminator
8 Suction basket 17 Nozzle bank with vaporizer nozzle
Note
Drinking water connections shall be equipped with pipe isolators according to EN 1717.
Connect discharge (1) and outflow of the front sump (13) separately to the waste system. Do
not discharge humidifier into the casing sloping pan!
