48
Base Fan 1 Bad/ Base Fan 2 Bad
One or both fans in the xture base are disconnected from their control PCB or are faulty and has to be replaced. .
Iris Fan 1 Bad/ Iris Fan 2 Bad
The iris fan 1 (fan 2) which cools the iris and framing shutters in the xture head is disconnected from its control
PCB or is faulty and should be replaced. A light output from the xture is closed.
Gobo Fan Bad
The fan which cools the gobo wheels in the xture head is disconnected from its control PCB or is faulty and
should be replaced. A light output from the xture is closed.

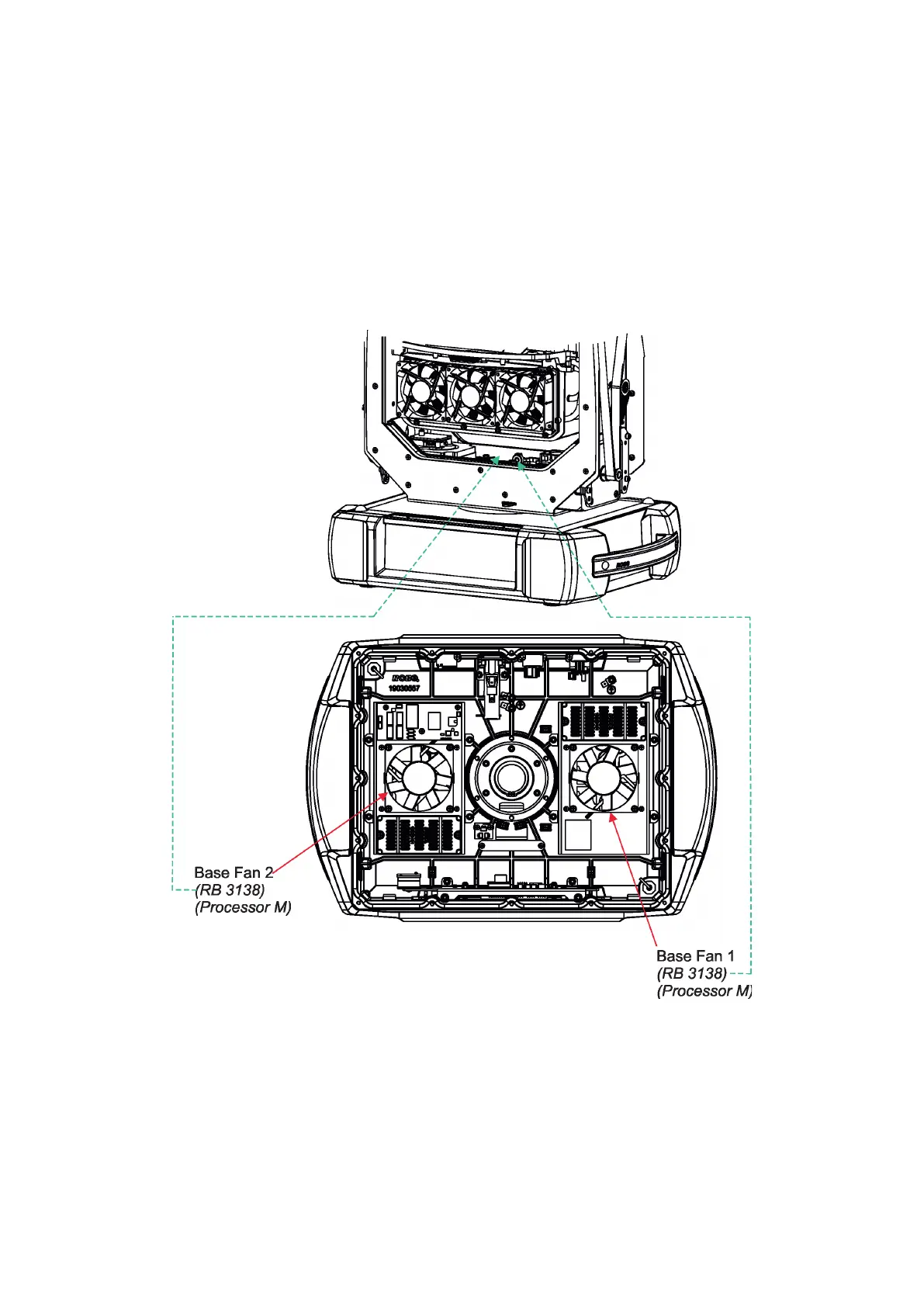

Positions of cooling fans and their control PCBs:
