Head covers (on both sides of the head)
* Tighten all screws in two steps:
Step 1 - use tightening torque 0.5Nm (pre-tightening)
Step 2- use tightening torque 2.5Nm (nal tightening)
Carefully check the gasket for signs of deformities or damages and if it is correctly placed before screwing
head covers back. The gasket is part of the head cover.
Do not forget to connect grounding wire between chassis and head cover.

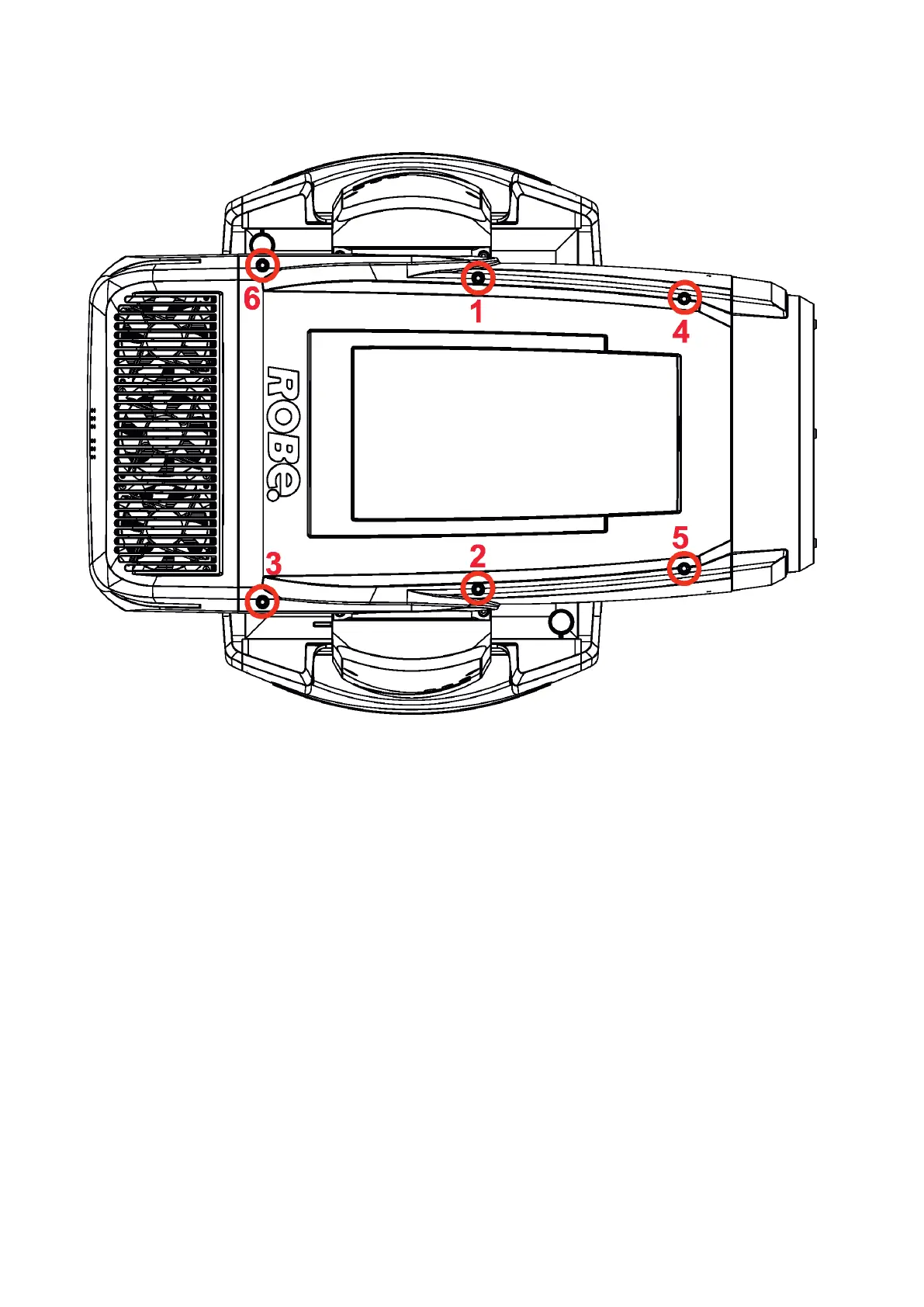

Screws must be tightened
in the order 1-->6
6 x
h
ex socket head screw M5x16
Tightening torque*: 2.5 Nm
