55

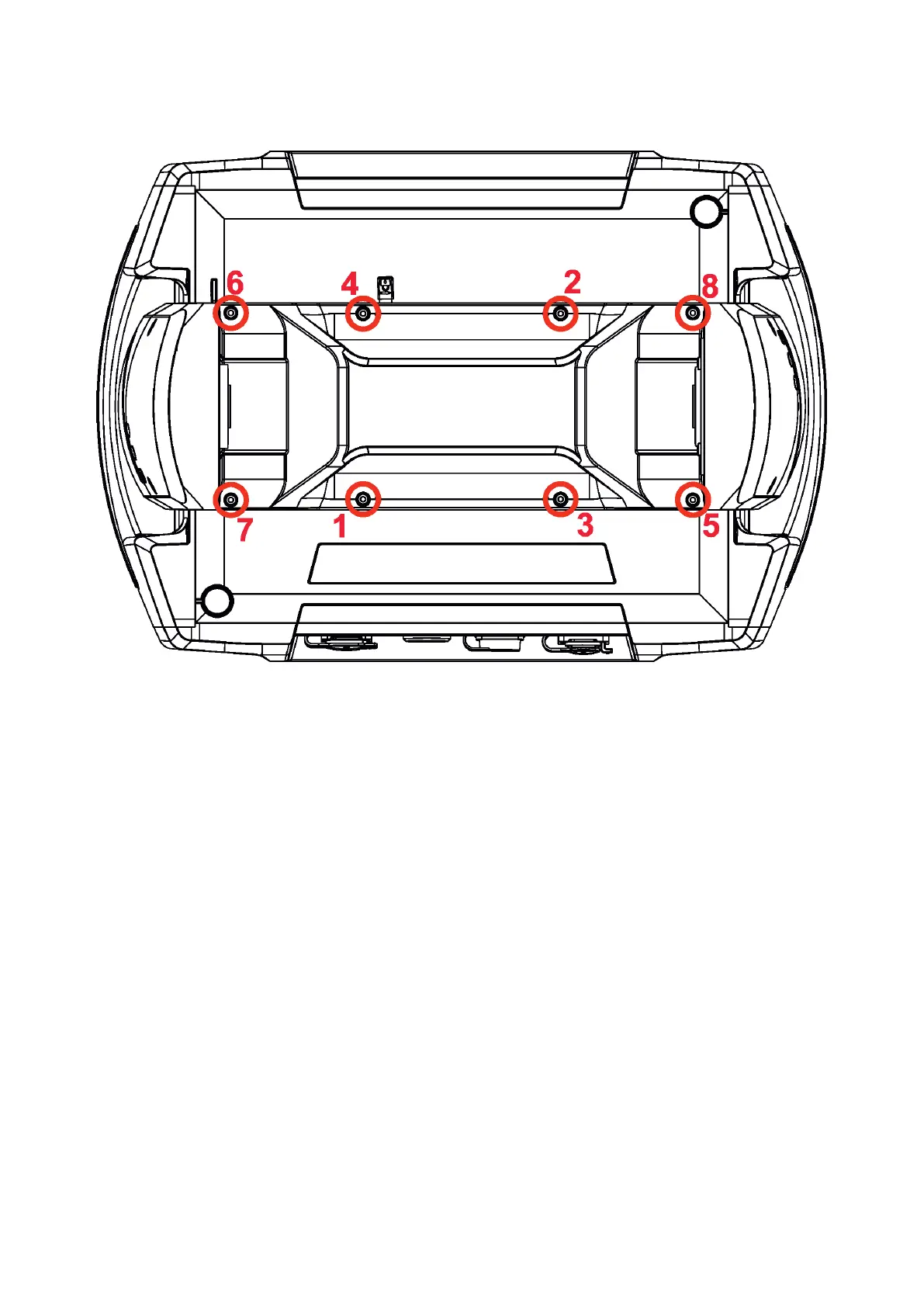

Yoke cover
8 x
h
ex socket head screw M4x8
Tightening torque*: 2.5 Nm
Screws must be tightened
in the order 1-->8,
* Tighten all screws in two steps:
Step 1 - use tightening torque 0.5Nm (pre-tightening)
Step 2- use tightening torque 2.5Nm (nal tightening)
Carefully check the gasket for signs of deformities or damages and if it is correctly placed before screwing
the yoke cover back. The gasket is part of the yoke cover.
Do not forget to connect grounding wire between chassis and base cover.
