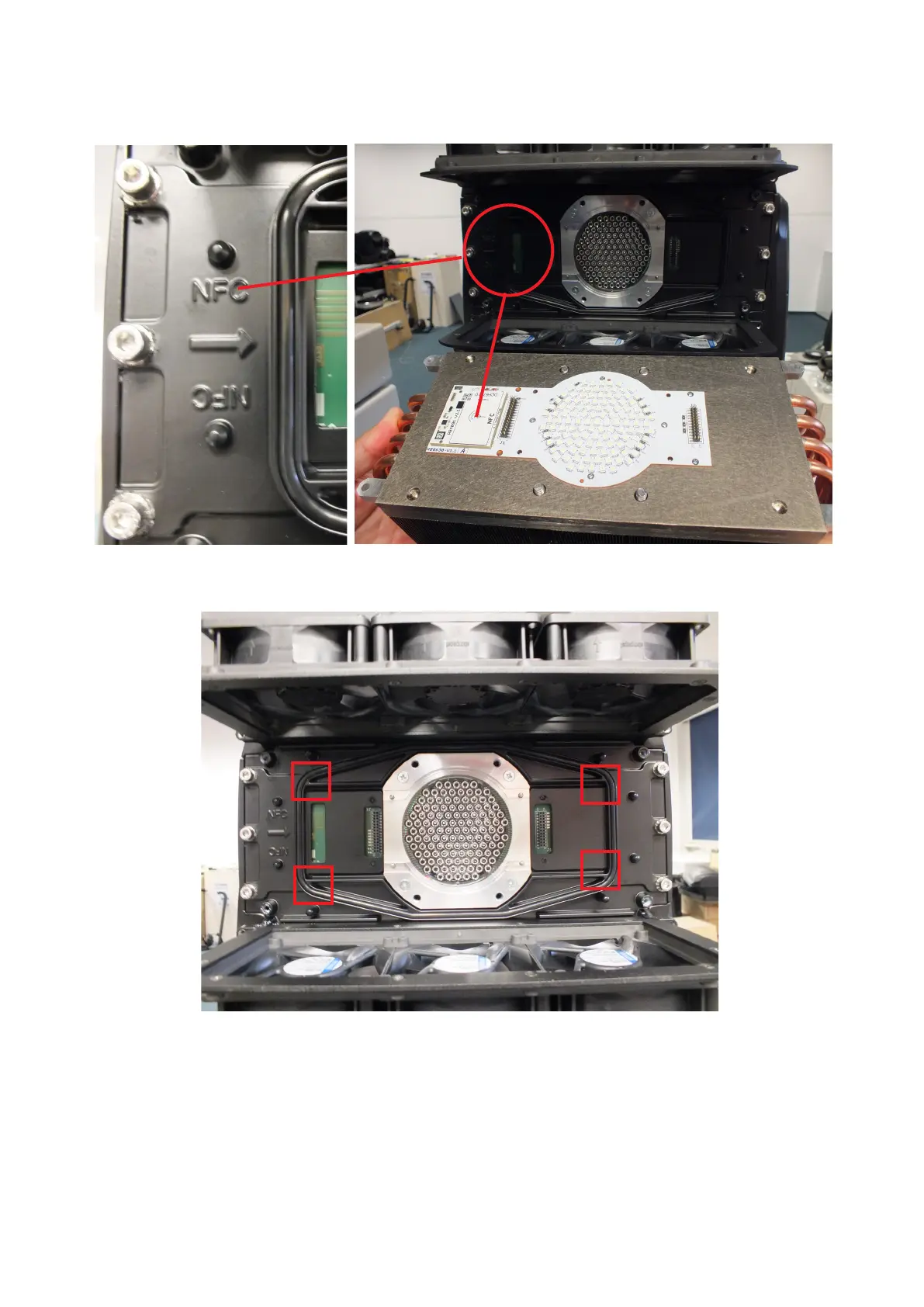

5. Carefully insert the new LED light source to the head. Keep the correct orientation of the LED light source
towards the head chassis as shown on the picture below. The NFC module on LEDs PCB has to be ori-
ented towards the sign "NFC" on the xture chassis.
The four guide pins (8) secure correct position of the LED light source.
8
8
8
8
