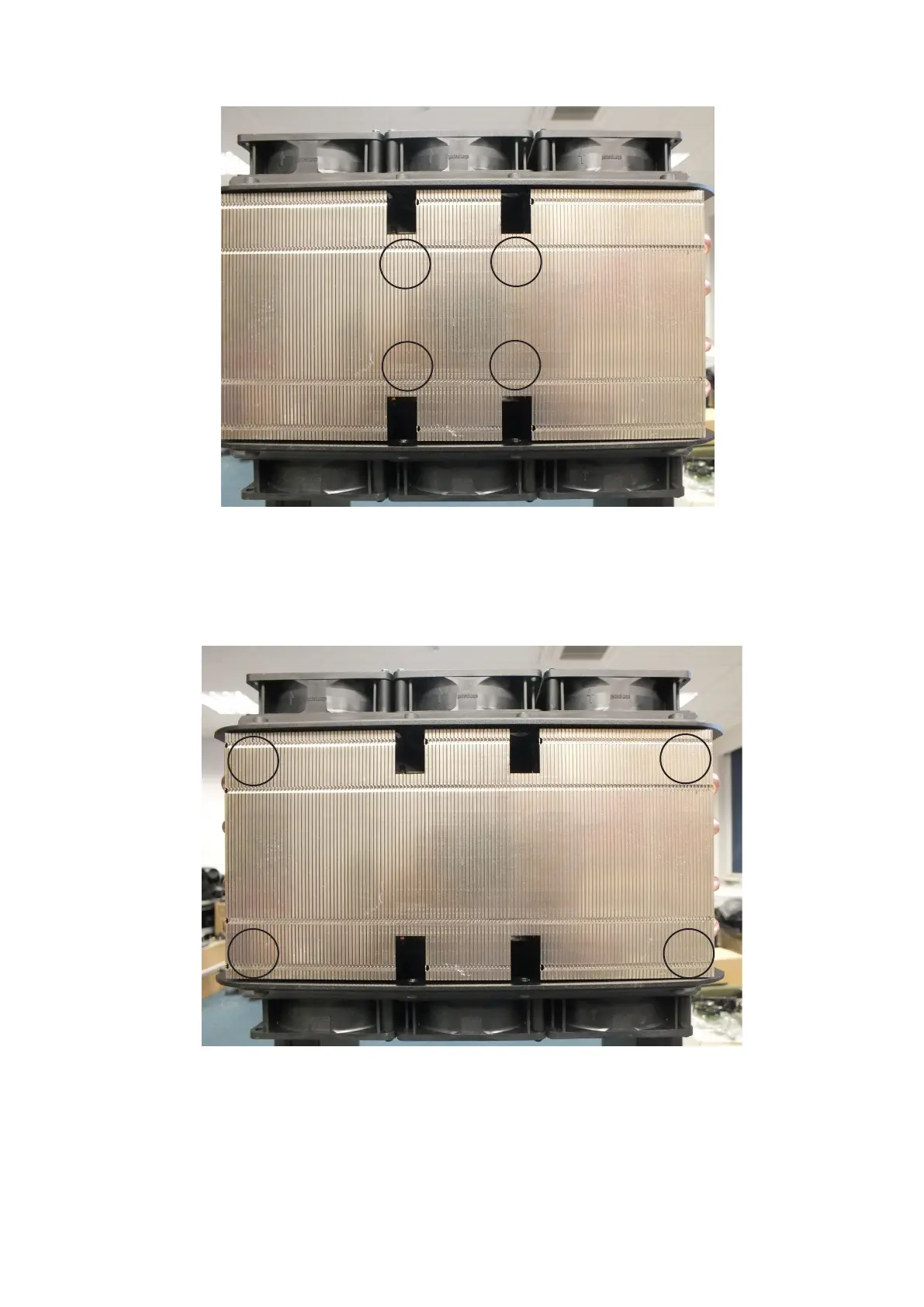

6. Tighten the four fastening screws M6x25 (4) in the order 1-->4. Use tightening torque 2.5 Nm. Do the tight-
ening of screws in two steps, in the rst step use tightening torque 0.5 Nm and in the second step 2.5 Nm.
Tighten the four outside fastening screws M5x14 (5) in the order 1-->4. Use tightening torque 2.5 Nm.
Do the tightening of screws in two steps, in the rst step use tightening torque 0.5 Nm and in the second step
2.5 Nm.
Note: Check that all screws are rmly tightened. Fastening of the LED light source has to be watertight.
7. Screw the rear cover (1) of the xture head by means of four screws M5x20 (2).
8. After connecting the xture to mains, run the procedure Pressure Test (Service -->Pressure Test).
If the pressure test is not OK, check tightening of the LED light source and run the pressure test again.
