Robopac ROTOPLAT 108-308-508-708 - 9. Roll-container stop device

ENG
TECHNICAL INFORMATION
38
9. Roll-container stop device:

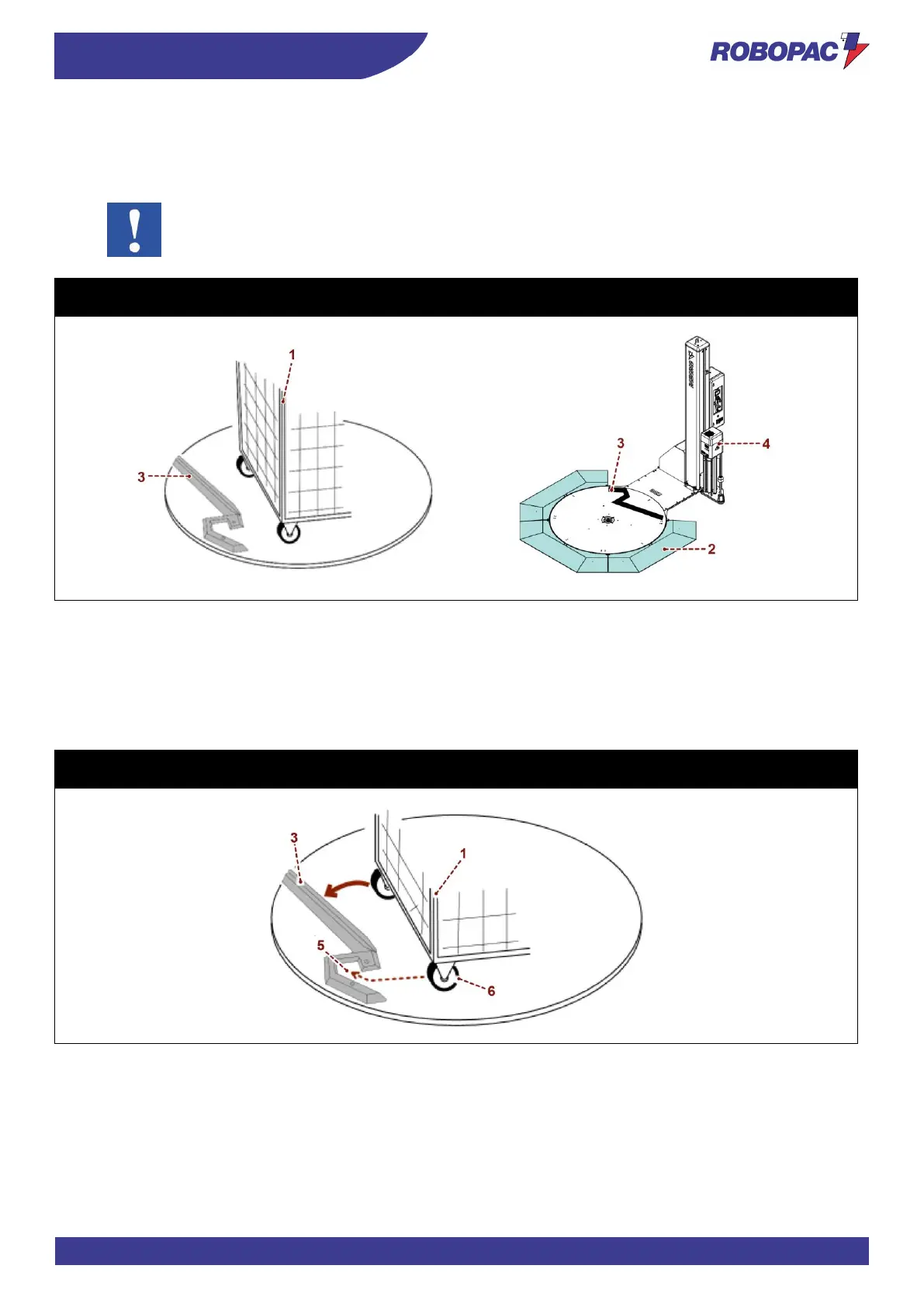

this system is suitable for Roll-container (1) wrapping.
In this case, infeed ramp (2) position is bound to stop device position (3), in fact the recommended ramp type
is the one indicated in the figure (270°).
Important
If the Roll-container stop device (3) is used, set the film stretch (4) to low intensity to avoid load
overturning.
Rotoplat TP3 308-508-708
Rotoplat LP 308-508-708
Roll-container insertion
Insert Roll-container (1) as follows:
A. Insert a fixed wheel (6) inside area (5), as indicated.
B. Rotate Roll-container (1) until bracket stops (3), as indicated.
Rotoplat TP3 308-508-708
Rotoplat LP 308-508-708
