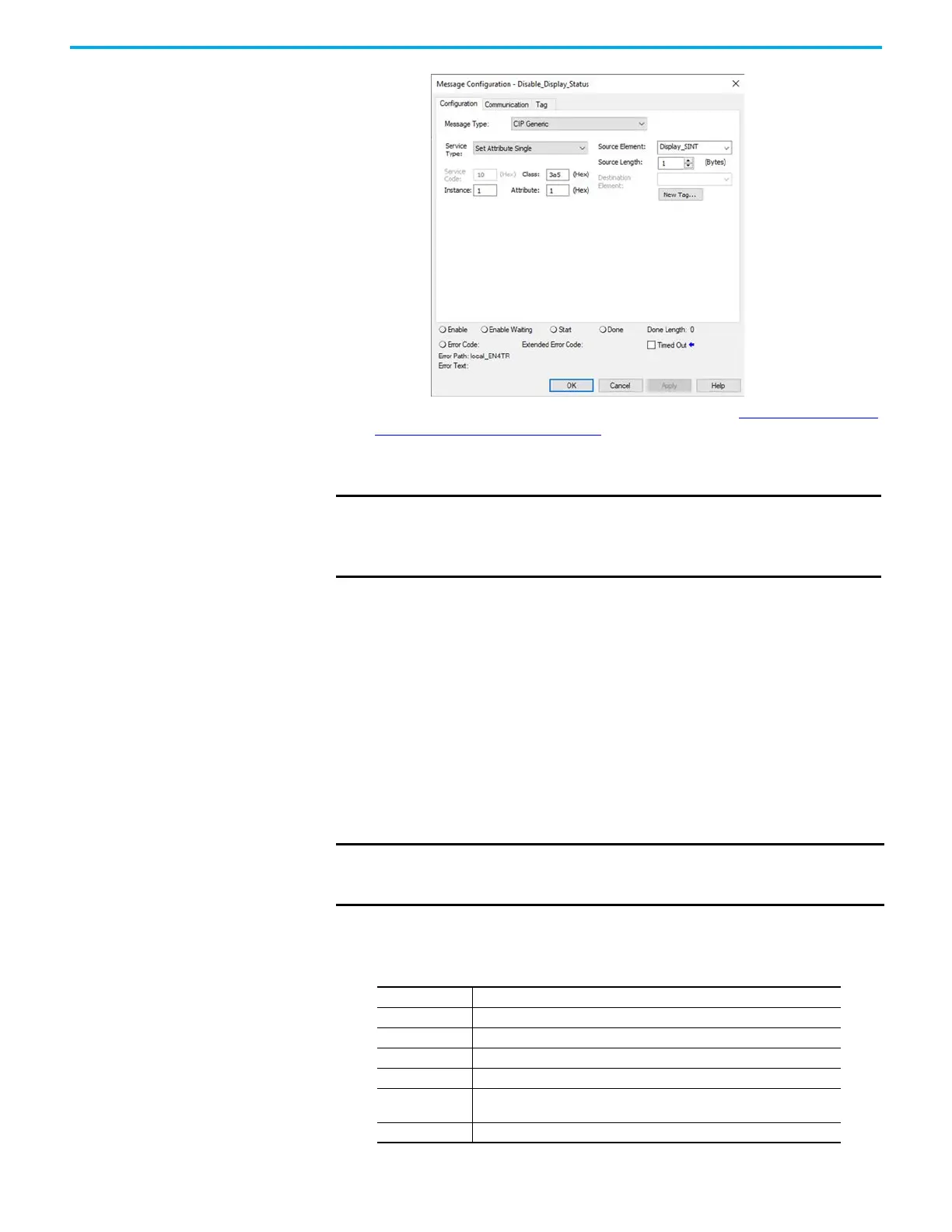

3. On the Communication tab, configure the Path. See Configure the MSG
Communication Path on page 41.
4. Before you enable the MSG instruction, make sure that the Source
Element tag value is 1.
Disable/Enable Individual Categories of Messages
You can disable a subset of the information that scrolls across the 4-character
display. You can disable these subsets:
•Link status
• Port status and IP address
Complete these steps.
1. Add a MSG instruction to your program.
This message only has to execute once, it does not need to execute with
every program scan.
2. Configure the Configuration tab on the Message Configuration dialog
box as follows:
IMPORTANT You can re-enable the 4-character display after it is disabled.
To re-enable the 4-character display, complete the steps that are
described in this section. Before you enable the MSG instructions,
however, make sure that the Source Element tag value is 0.
IMPORTANT You cannot add a MSG instruction to your program if the controller
keyswitch is in Run mode, or if the FactoryTalk Security settings deny
this editing option.
Table 13 - Disable/Enable Individual Categories of Messages
Message Type: CIP Generic
Service Type: Set Attribute Single
Instance: 1
Class: 3a5
Attribute: 2
Source Element:
Controller tag of DINT data type.
In this example, the controller tag is named Line_MASK.
Source Length: 4
