Rockwell Automation Publication 1756-UM004D-EN-P - August 2022 57
Chapter 4 Security Options

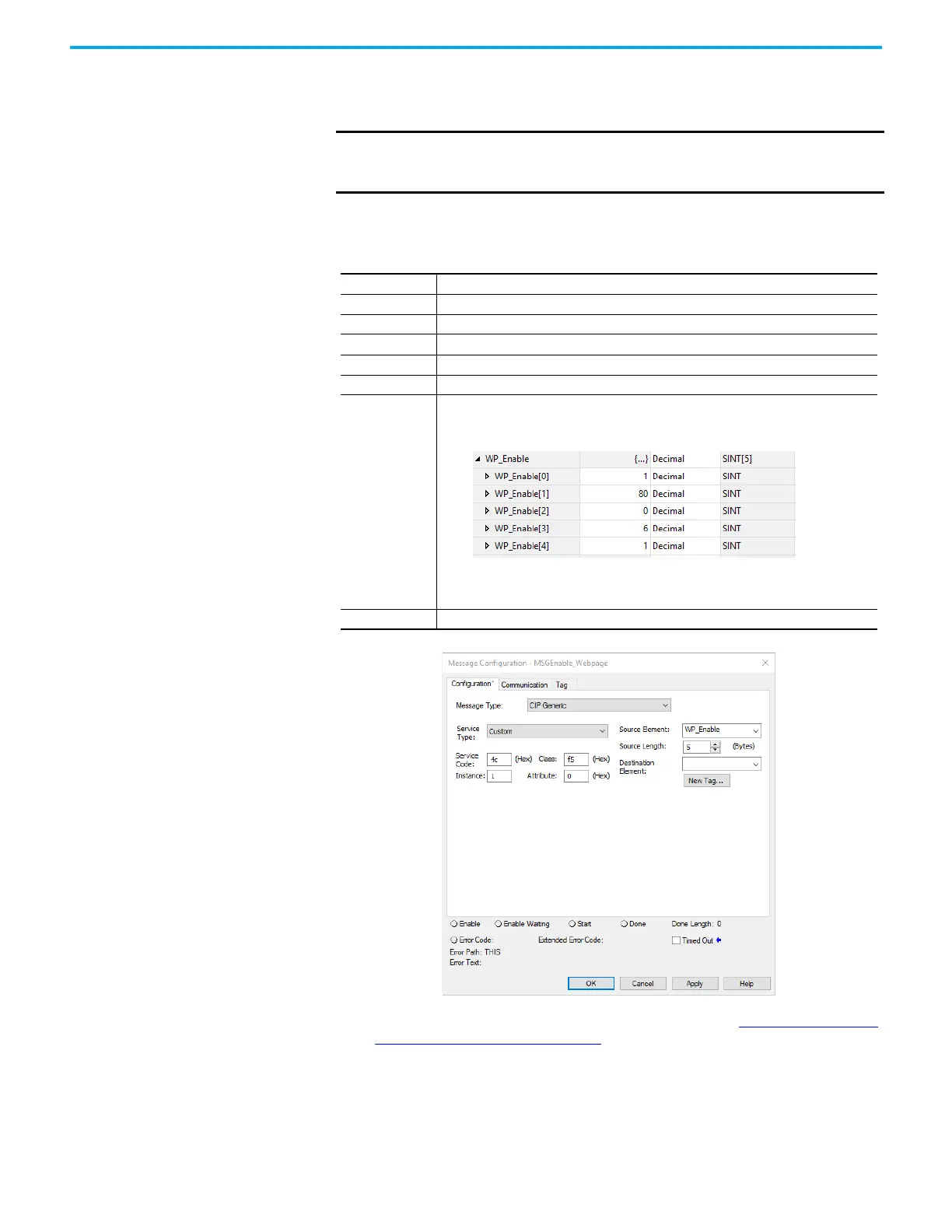

Use a CIP Generic MSG to Enable the Webpages
1. Add a MSG instruction to your program.
2. Configure the Configuration tab on the Message Configuration dialog
box as follows:
3. On the Communication tab, configure the Path. See Configure the MSG
Communication Path on page 41.
IMPORTANT You cannot add a MSG instruction to your program if the controller
keyswitch is in RUN mode, or if the FactoryTalk Security settings deny
this editing option.
Table 15 - Enable the Webpages
Message Type: CIP Generic
Service Type: Custom
Service Code: 4c
Instance: 1
Class: f5
Attribute: 0
Source Element:
Controller tag of SINT[5] data type.
In this example, the controller tag is named WP_Enable and must match the following
graphic:
IMPORTANT: The Source Element tag in your Logix Designer application project must match
the values that are shown in the graphic. If you use values that are different than the ones
shown, the controller webpages are not enabled.
Source Length: 5
