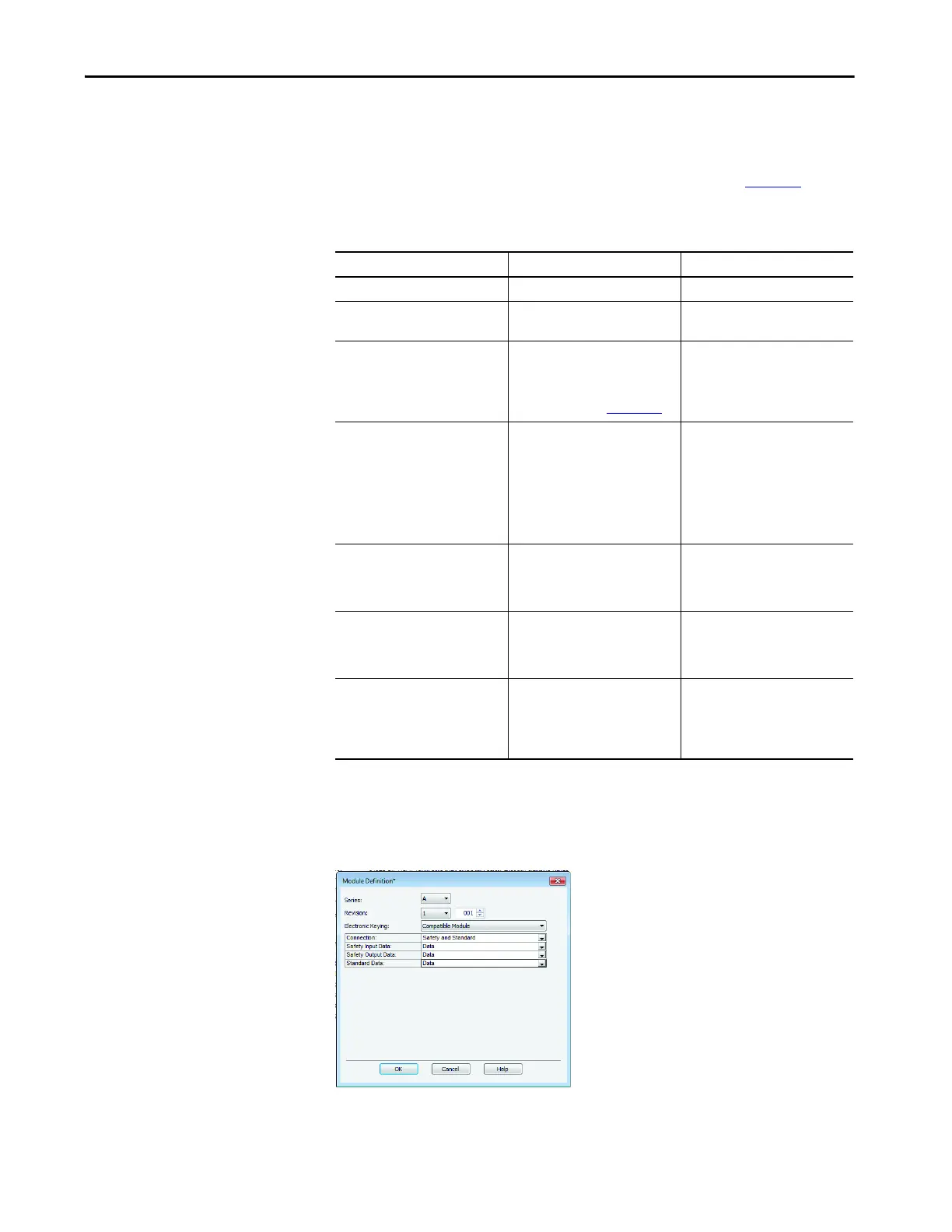

Configure the Encoder with Studio 5000 Environment Chapter 5
Module Definition
Module Definition parameters are available on the General page of the Module
Properties dialog box in the Logix Designer application project. Tab le 1 6
describes the parameters on the Module Definition dialog box.
Table 16 - Parameter Definitions
Parameter Definition Available Choices
Series Module hardware series Module-specific
Revision Module firmware revision, including
major and minor revision levels
Module-specific
Electronic Keying Software method by which you
reduce the possibility of using the
wrong device in a control system. For
more information, see Electronic
Keying in publication LOGIX-AT001
.
Exact Match
Compatible Module
Disable Keying
(1)
(1) Disable Keying is only available if Standard Only connection is set.
Connection Determines the following for the
module type you configure:
• Available configuration
parameters
• Data type transferred between
the module and the controller
• Which tags are generated when
configuration is complete
Safety Only
Safety and Standard
Standard Only
Safety Input Data All available configurations, safety
input data. This connection type
creates all controller tags specific to
the module type being used.
Data
(2)
None
(2) If Safety Only or Safety and Standard connection is set, then Safety Data parameter is locked as Data. If Standard Only connection is
made, then the Safety Data parameter is set to None.
Safety Output Data All available configurations, safety
output data. This connection type
creates all controller tags specific to
the module type being used.
Data
(2)
None
Standard Data All available configurations, standard
input and output data. This
connection type creates all controller
tags specific to the module type
being used.
Data
(3)
None
(3) If Standard Only or Safety and Standard connection is set, then Standard Data parameter is set to Data. If Safety Only connection is
made, then the Standard Data parameter is set to None.
