60 Rockwell Automation Publication 843ES-UM001A-EN-P - February 2020
Chapter 5 Configure the Encoder with Studio 5000 Environment

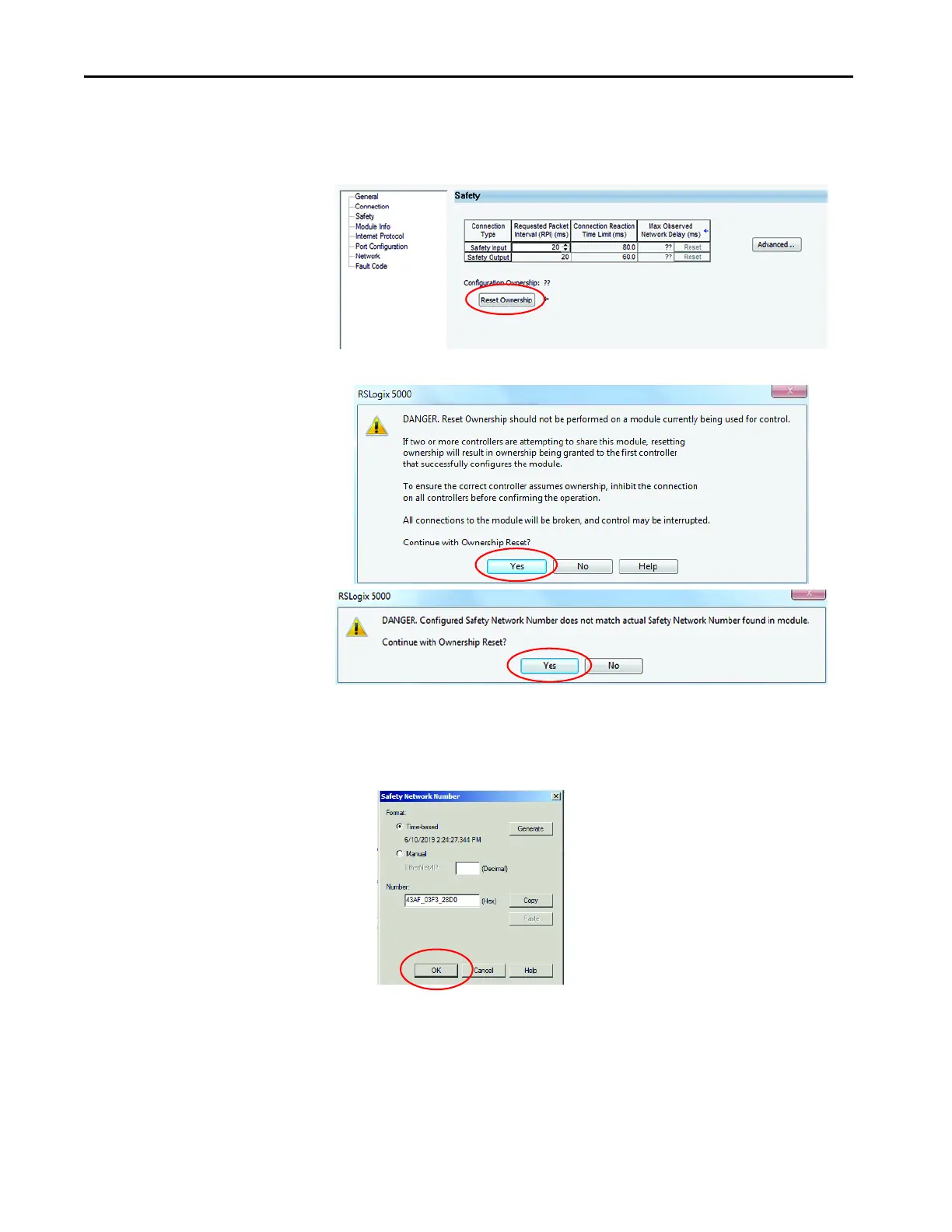

1. From the Module Properties dialog box, choose the Safety tab. You see the
Safety dialog box.
2. To re-establish the connection, click Reset Ownership.
3. Click Yes to continue with ownership reset.
4. On the connection page, notice that the module is faulted (Code
16#080d, safety network number (SNN) not set, device-out-of-box).
5. From the General tab, click Safety Network Number. The SNN dialog box
appears. Enter the Number, Click Set, then click OK.
6. Select Yes to continue.
7. The module status changes from Faulted to Running, in the lower left
corner of the General tab.
