126 Rockwell Automation Publication 2198-UM005C-EN-P - February 2022
Chapter 6 Configure and Start up the Kinetix 5300 Drive System

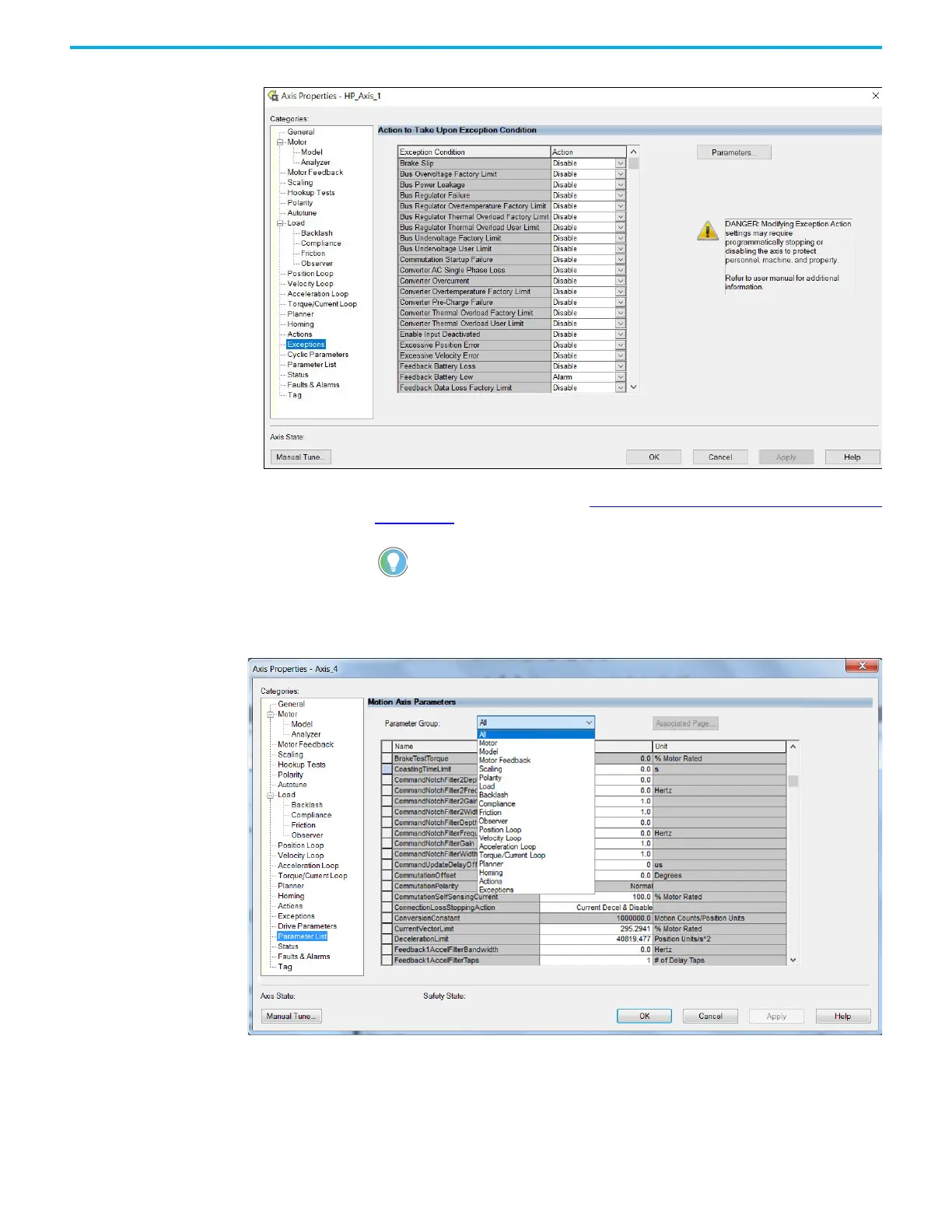

The Action to Take Upon Exception Condition dialog box appears.
From this dialog box you can change the action for exceptions (faults).
For more information, refer to Logix 5000 Controller and Drive Behavior
on page 145.
18. Select the Parameter List category.
The Motion Axis Parameters dialog box appears. Use the Parameter
Group pull-down menu, and choose the appropriate group. By default, all
parameters are shown in the dialog box.
In the Logix Designer application, version 32.00 and later, Disable
replaced Stop Drive as the default Action.
To Next Page
