Rockwell Automation Publication 2198-UM005C-EN-P - February 2022 211
Appendix C Motor Control Feature Support

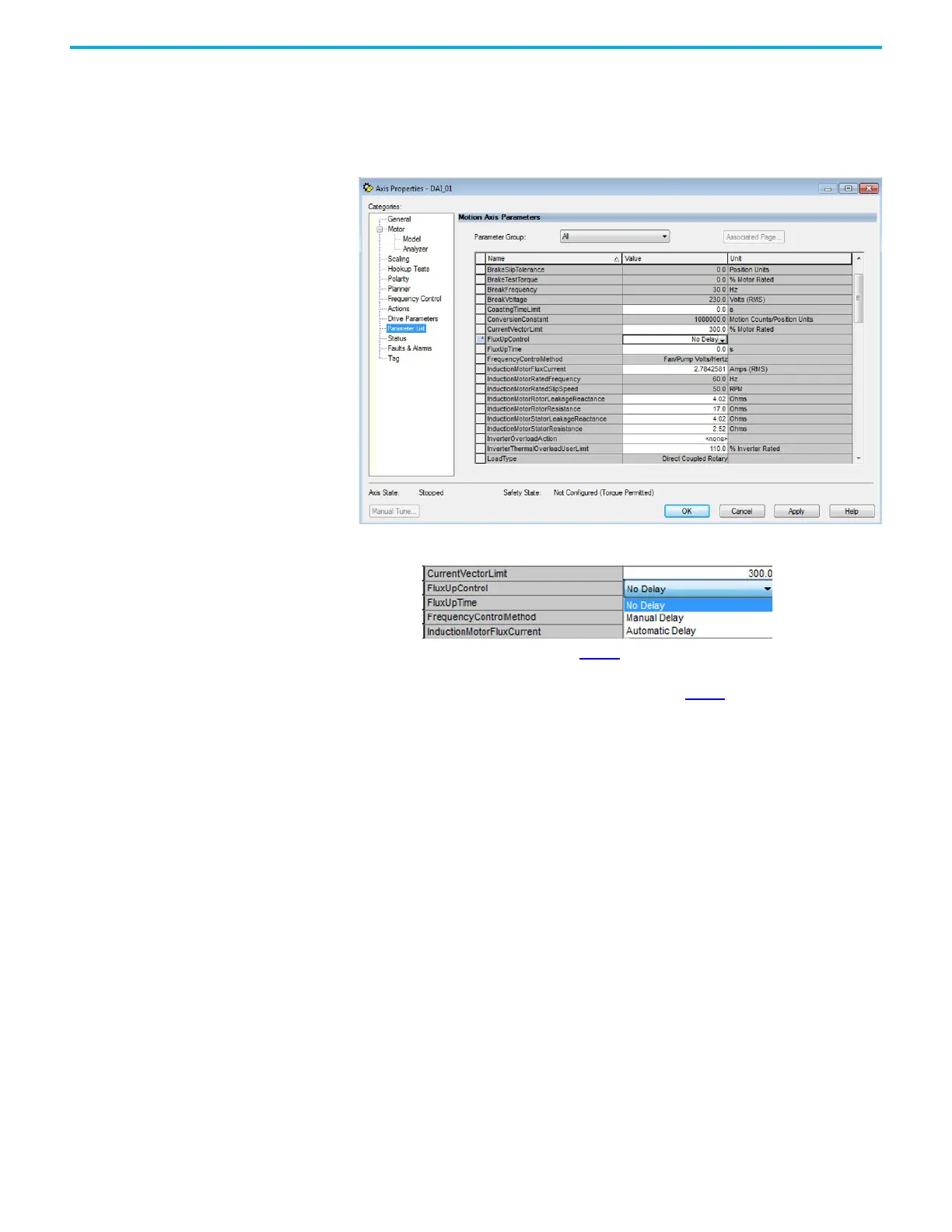

Configure the Flux Up Attributes
Follow these steps to configure the flux-up attributes.
1. In the Controller Organizer, right-click an axis and choose Properties.
2. Select the Parameter List category and scroll to FluxUpControl.
3. From the FluxUpControl pull-down menu, choose the proper delay value
appropriate for your application.
4. If you chose Manual Delay in step 3
, enter a value in the FluxUpTime
attribute appropriate for your application.
If you chose No Delay or Automatic Delay in step 3
, the FluxUpTime
attribute does not apply.
