Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020 127
Operator Interface Chapter 3

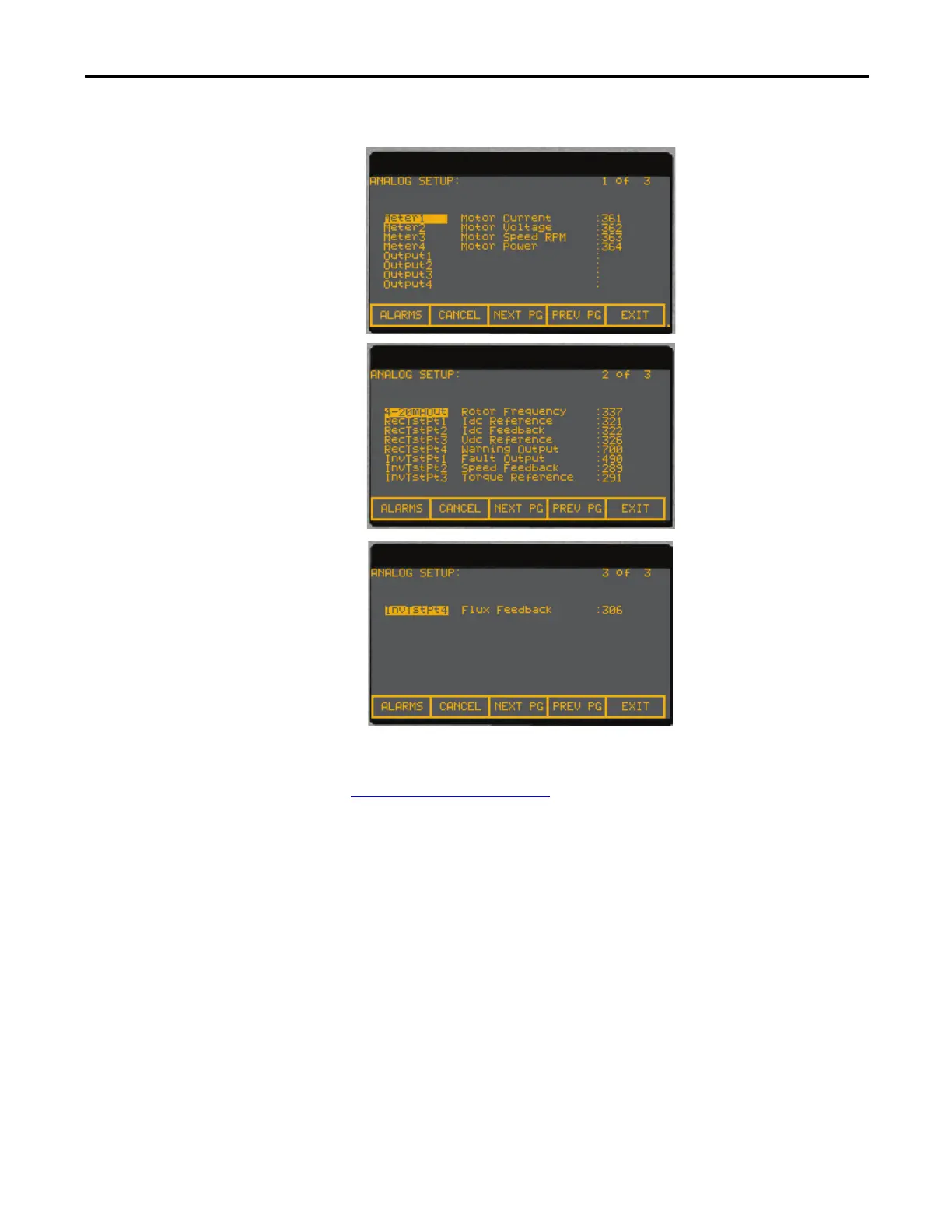

Figure 120 - Analog Setup
This will begin the selection process of a tag as described in the section entitled
Select a Parameter
on page 110. When you have completed the selection process,
the selected tag will be assigned to the port. To remove an assignment to the
highlighted port, press the [delete] (Backspace) key.
The changes made do not take affect until you press [F10] and exit the screen.
Any time prior to this you may cancel all of the changes made after coming to the
screen by pressing the [F7] key.
